Whirlpool - 30 inches - White
- Key Specs
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Color Finish: White
- General
- Product Name: 30" Convertible Range Hood
- Brand: Whirlpool
- Model Number: WVU37UC0FW
- Color Finish: White
- Dimensions
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 19 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: false
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 265 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: false
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 883049440637

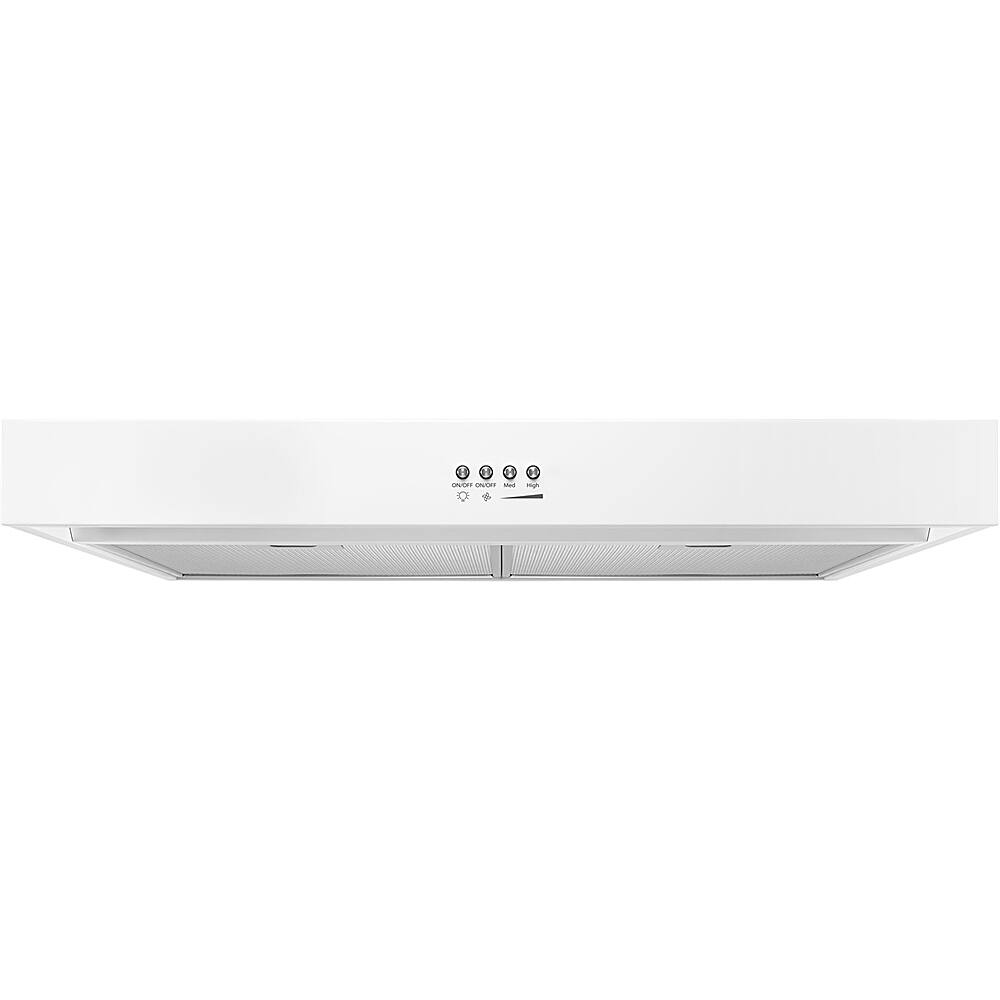

Remove smoke and odors from your kitchen with this 30-inch Whirlpool range hood. Its three speeds can be adjusted with the push button controls, and its air circulation system lets you install it without access to an outside air duct. This Whirlpool range hood has LED lights to illuminate the cooking area.
- 3-Speed, 250 CFM Motor Class: Quickly removes smoke and odors from your kitchen. (Performance varies based on installation. Resources available at aham.org.)
- Full-Width Grease Filters: Make cleanup easy with full-width grease filters that help keep the kitchen clean of unwanted grease and odors.
- FIT System: The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- LED Task Lighting: LED lighting designed to last longer than standard incandescent light bulbs.
- Recirculation (Non-Vented/Duct-Free): By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
- ADA Compliant: This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Whats Included
- Whirlpool 30" Convertible Range Hood
Q: Where can I find the charcoal filters for this range hood?
A: This was our only complaint about this item; the filter was not included and was not easy to locate from a local retailer. We ended up going to Lowe's and buying a filter and cutting it to fit this hood. This hood is advertised as a ventless hood and as such, I believe the filter should have been included.
Q: Does this plug in or must it be hardwired
A: It must be hard wired.
Q: What is the sound level of this unit in sones at high speed? 0.5 decibels seems incorrect.
A: Hello BB123, the sone level is 5. We hope this helps.
Q: Can this unit be mounted to a ceiling (above the stove located in the middle of a kitchen island)?
A: Hi SM287, this particular unit is meant to be mounted where there is a wall present. You will need to look for a model that is labeled "Island Mount" Here is an example Model WVI75UC6DS: https://bit.ly/2QMJ1oN
A: Hello RevM, we do not recommend due to the difference in the clearance requirements. We apologize for any frustration this may have caused.
A: Hi! This unit is not a ductless unit. It will accommodate either a rectangular or circular duct, however, this unit can also be installed as a recirculating vent. If, you chose to use the recirculating vent install you will need the Charcoal Filter Kit, That part number is W10905734. Here is the link to the Owner's Manual, where you can find the installation requirements. https://bit.ly/3eGcjOF You may also reach out to us for direct assistance at Whirlpool 866-698-2538 Mon-Tues 8 AM-8 PM Wed-Fri 9 AM-7 PM EST. We hope this helps!
A: Hi SuzyJoe, you will need a 12" minimum cabinet depth to install this unit, so you should be fine.
Q: What is the CMF rating for this hood
A: Wolfman, the CFM Motor Class is 265. Hopefully, this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
