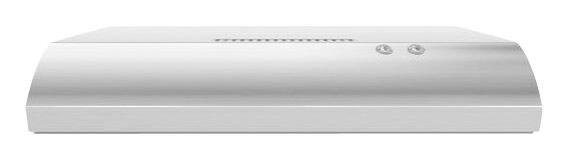

Whirlpool - 36 inches - Stainless steel

Model: UXT4136ADS
SKU: 5497074
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Exhaust Vent Location: Rear
    • Vent Type: Convertible
    • Color Finish: Stainless steel
  • General
    • Product Name: 36" Convertible Range Hood
    • Brand: Whirlpool
    • Model Number: UXT4136ADS
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 16 pounds (The out of box weight of the item.)
    • Duct Shape: Rectangular
    • Duct Length: 420 inches
    • Duct Width: 10 inches
  • Features
    • Exhaust Vent Location: Rear
    • Vent Type: Convertible
    • Number of Fan Speeds: 2
    • Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
    • Control Type: Rocker
    • Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
    • Remote Control: false
    • Auto Fan Shut-Off: false
    • Damper Included: true
    • Integrated Light(s): true
    • Number of Lights: 2
    • Bulb Type Required: Incandescent
    • Bulb(s) Included: true
  • Performance
    • Maximum Air Flow Capacity: 190 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
  • Filter Info
    • Dishwasher-Safe Filter: true
    • Removable Grease Filter: true
  • Electrical Specification
    • Amperage: 15 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
  • Other
    • UPC: 883049326658

This Whirlpool UXT4136ADS 36" convertible range hood features a 190 cfm exhaust capacity, so you can easily remove cooking odors from your kitchen. The hidden vent offers a sleek, seamless look and makes cleaning simple.

  • FIT System: The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
  • 56 dBA (2.6 sones) at Low Speed: Keep noise down in the kitchen with the quiet operation of 66 dBA (5.3 sones) at the hood's highest speed with a recirculation option. (Based on 3.25" x 10" rear outlet.)
  • 2-Speed, 190 CFM Motor Class: Two fan speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
  • Incandescent Lighting: Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
  • Recirculation (Non-Vented/Duct-Free): By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
  • ADA Compliant: This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Whats Included
  • Whirlpool 36" Convertible Range Hood
  • Owner's manual

Q: Is this hood considered a vented hood?

A: If it's advertised as "convertible," it can be installed as vented with ducting or non ducted which just returns air to the kitchen after passing past a screen/filter.

Q: Can this range hood be mounted under a cabinet? Our previous one mounts to the cabinet above and vents out the wall behind it all. thanks!

A: Hi Jason, thank you for your inquiry into our Whirlpool Brand Appliances. This Range Hood is designed to be installed under a cabinet. So you should have no trouble with that installation We hope this helps!
