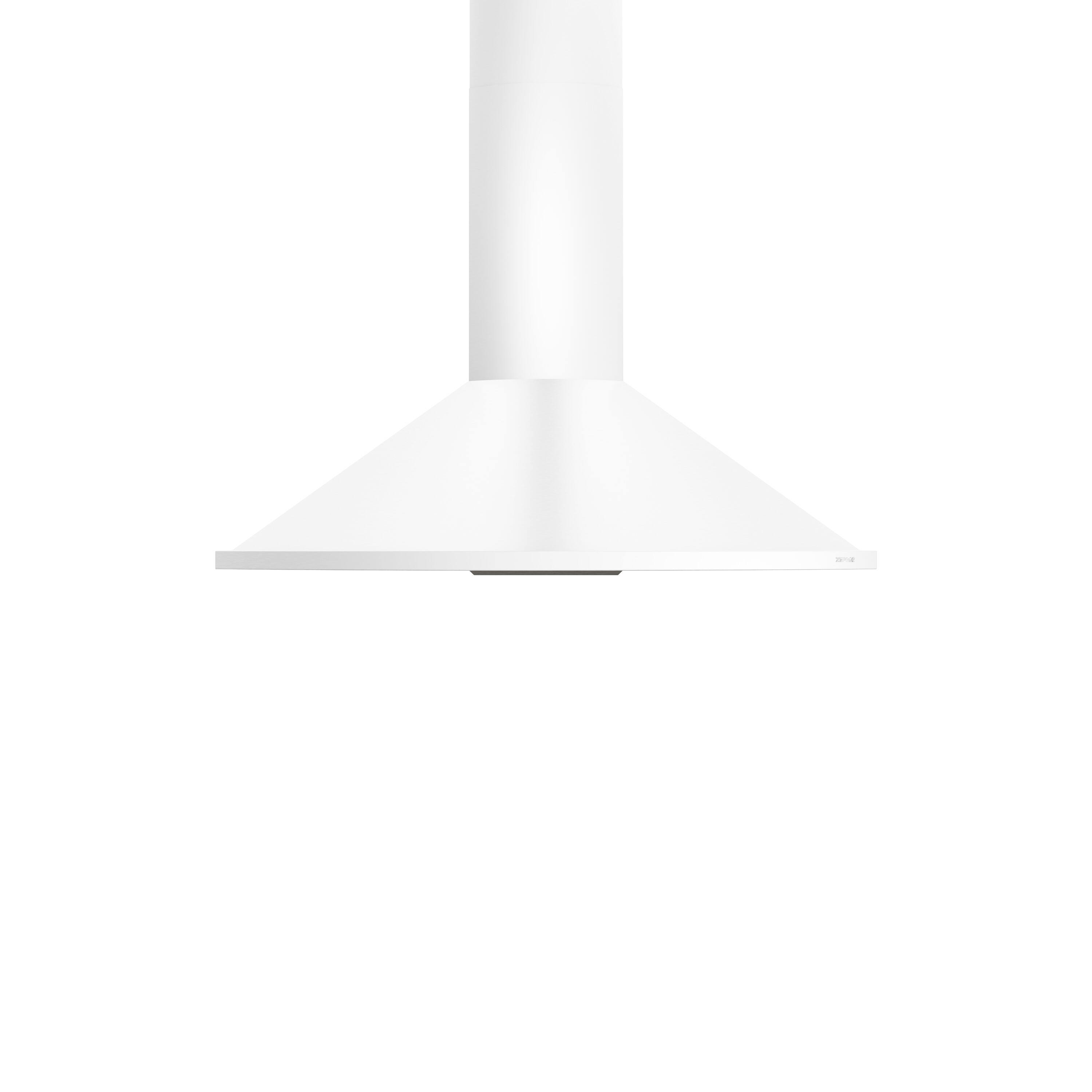

Zephyr - 30 inches - Convertible - Wall Range Hood - White
- Key Specs
- Product Height: 28 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Color Finish: White
- General
- Product Name: Savona 30 in. 685 CFM Wall Mount Range Hood with LED Light
- Brand: Zephyr
- Model Number: ZSA-E30DW
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 28 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 29.8 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 5
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 9 watts
- Filter Info
- Filter Material: Other
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328005664
Savona’s semi-circular surfaces accentuate this range hood’s European design with delicate reflections of light and shadows. Available in stainless steel, powder-coated black and white and now with Zephyr’s trend-setting sleek new alternative to stainless steel, Black Stainless Steel. Savona features a robust 685-CFM blower, ICON Touch® controls with 5 speeds and our exclusive ACT™ technology.
- Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch® Controls: ICON Touch™ Controls seamlessly integrate into the hood’s stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders.
- Multiple Color Options: Multiple colors available to match your kitchen décor.
- BriteStrip™ LED Lighting: The future just got brighter. BriteStrip™ LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00SV)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-01SAW)
Product Manuals
A: Hello, Thank you for your inquiry, however, we would not be able to speak to the color/SS finish of the LG product. -Zephyr
Q: What kind of filter does this vent hood use - Baffle filter?
A: Hello, The Savona Hood includes two aluminum mesh filters. You may also purchase the optional stainless steel Baffle filters model : Z0F-B001. You may view more details here: http://docs.zephyronline.com/docs/specs/savonad_spec.pdf Thank you for your inquiry!
A: Hello, There are many different finish tones of appliances in black stainless steel. We do not know if the Zephyr black stainless finish "matches" a specific manufacturer. We developed a good " mid tone" finish that is very compatible with most black stainless finishes. Thank you for your inquiry!
Q: What are the measurements of the top part of this hood? The part that would touch the ceiling?
A: Hello, The part of the Savona 30" Range Hood that touches the ceiling, is the duct cover. The duct cover measures 9" wide by 7 1/2 " deep. You may want to log on to our web site- zephyronline.com/product/savona-wall for more details and specifications. Thank you!
