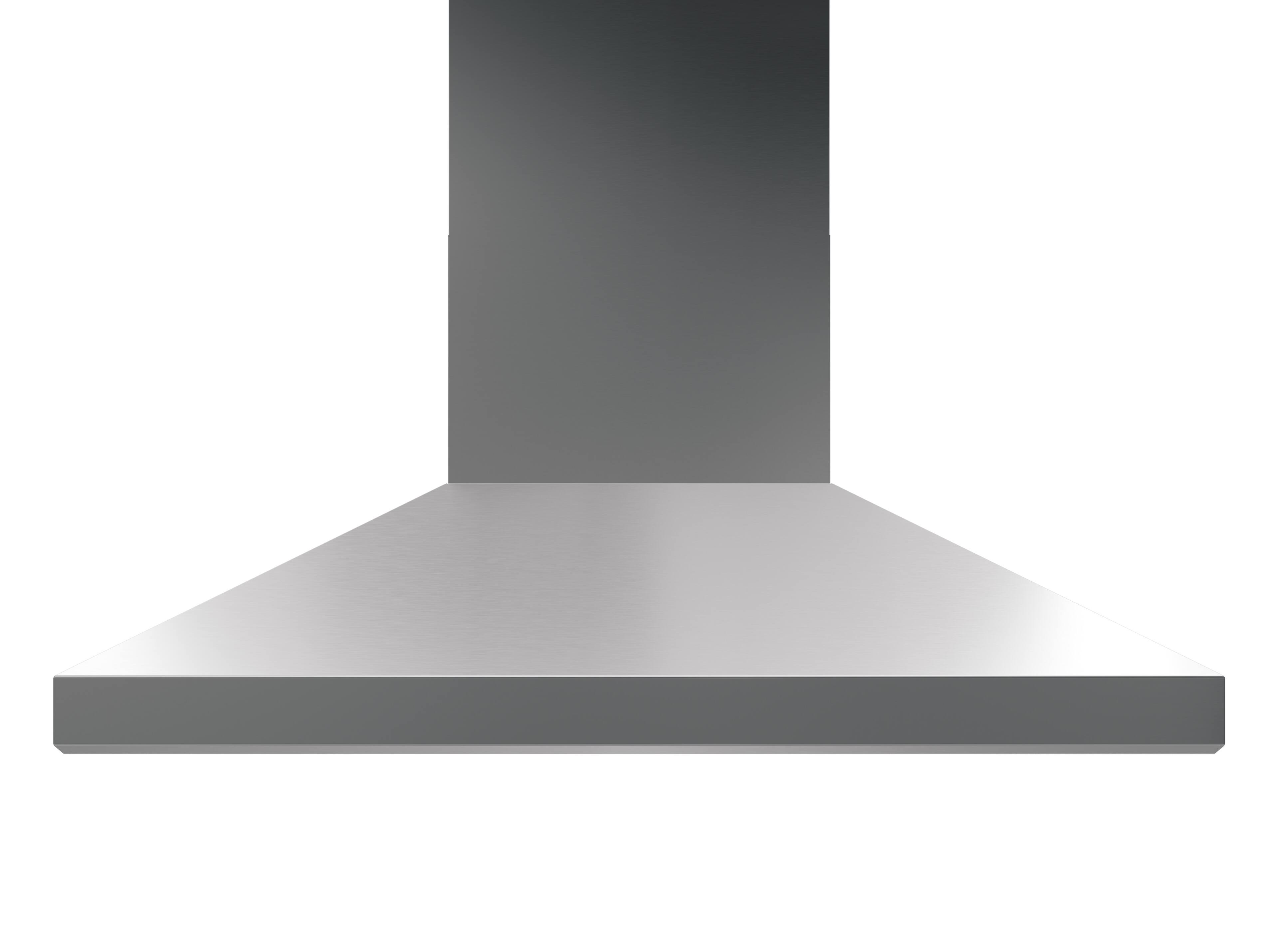

Zephyr - 60 inches - Externally Vented - Wall Range Hood - Stainless Steel
- Key Specs
- Product Height: 30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 59 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Color Finish: Stainless steel
- General
- Product Name: Titan 60 in. External Wall Mount Range Hood
- Brand: Zephyr
- Model Number: AK7660AS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 59 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 60 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 105 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Duct Length: 12 1/2 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: true
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Filter Info
- Filter Material: Other
- Removable Grease Filter: true
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328006609
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr’s new PowerWave™ blower technology, Titan features a 750 CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60 inches and features pro baffle filters and LED lighting.
- Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Directional Lighting: The light bulbs can be adjusted to direct light over cooking surface where it is needed the most.
- Welded and Polished Body: A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Feature: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.(Part # 14000005)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-0176)
Product Manuals
Q: What is the minimum installation height above the cooktop for this range hood?
A: The minimum installation height above the cooktop for the Titan 60 in. External Wall Mount Range Hood by Zephyr is 24 inches. This information can be found in the product specifications section, under "Minimum Installation Height Above Cooktop".
Q: Can this range hood be used with standard 8-inch round ductwork?
A: Yes, the Titan 60 in. External Wall Mount Range Hood is designed to fit standard 8-inch round ductwork for ease of installation.
Q: What are the dimensions of this range hood?
A: The dimensions of the Titan 60 in. External Wall Mount Range Hood are: 30 inches in height, 59 7/8 inches in width, and 24 inches in depth.
Q: What is the duct shape of this range hood?
A: The duct shape of the Titan 60 in. External Wall Mount Range Hood by Zephyr is round. This information can be found in the product specifications section under "Duct Shape: Round".
Q: What is the exhaust capacity of this range hood?
A: The exhaust capacity of the Zephyr Titan 60 in. External Wall Mount Range Hood is 750 CFM. It features Zephyr's PowerWave™ blower technology, allowing for efficient smoke and odor removal from the kitchen.
Q: What is the voltage requirement for this range hood?
A: The voltage requirement for the Titan 60 in. External Wall Mount Range Hood by Zephyr is 120 volts.
Q: What is the color finish of this range hood?
A: The color finish of the Titan 60 in. External Wall Mount Range Hood by Zephyr is stainless steel. The product specifications indicate that the "Color Category" is "Silver" and the "Color Finish" is "Stainless steel."
Q: How many light levels does this range hood have?
A: The Titan 60 in. External Wall Mount Range Hood by Zephyr has 2 light levels.
