Zmodo - 2nd Gen 8-Channel, 8-Camera Indoor/Outdoor High-Definition DVR Surveillance System - White
- Key Specs
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 81 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 8
- Number Of Channels: 8
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 2nd Gen 8-Channel, 8-Camera Indoor/Outdoor High-Definition DVR Surveillance System
- Brand: Zmodo
- Model Number: ZM-SS76D9D8-SC-2TB
- Camera
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 81 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 65 feet
- Number Of Cameras Included: 8
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0.1 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 25 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Iris: Fixed (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
- Camera Mount Type: Wall mount
- Compatibility
- Camera Compatibility: Select Zmodo DVRs; Apple iOS 7 or later, Android 4.0 Ice Cream Sandwich or later
- Operating System Compatibility: Windows, Android, Apple iOS, Mac, Chrome
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Records Audio: false
- Number Of Channels: 8
- Video Compression Type: H.264
- Simultaneous Operation: Pentaplex (Refers to the number of operations (live view, record, playback, back up, remote control, etc.) the DVR can perform simultaneously. For example, a simplex DVR can perform only one task at a time, such as recording or playback of footage, while a pentaplex DVR can multitask up to 5 functions.)
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- DVR Storage Capacity: 2000 gigabytes
- Performance
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio-Only Option: false
- 3-Axis Adjustable: true
- Auto-On Detection: None
- Dimensions
- Camera Height: 2.6 inches
- Camera Width: 4.3 inches
- Camera Depth: 4.9 inches
- Camera Weight: 0.5 pounds
- DVR Height: 1.7 inches
- DVR Width: 8.1 inches
- DVR Depth: 8.6 inches
- DVR Weight: 1.53 pounds
- Output
- DVR Output(s): HDMI, VGA
- Display
- Clock Display: false
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: false
- Cable(s) Included: true
- Other
- UPC: 889490004497

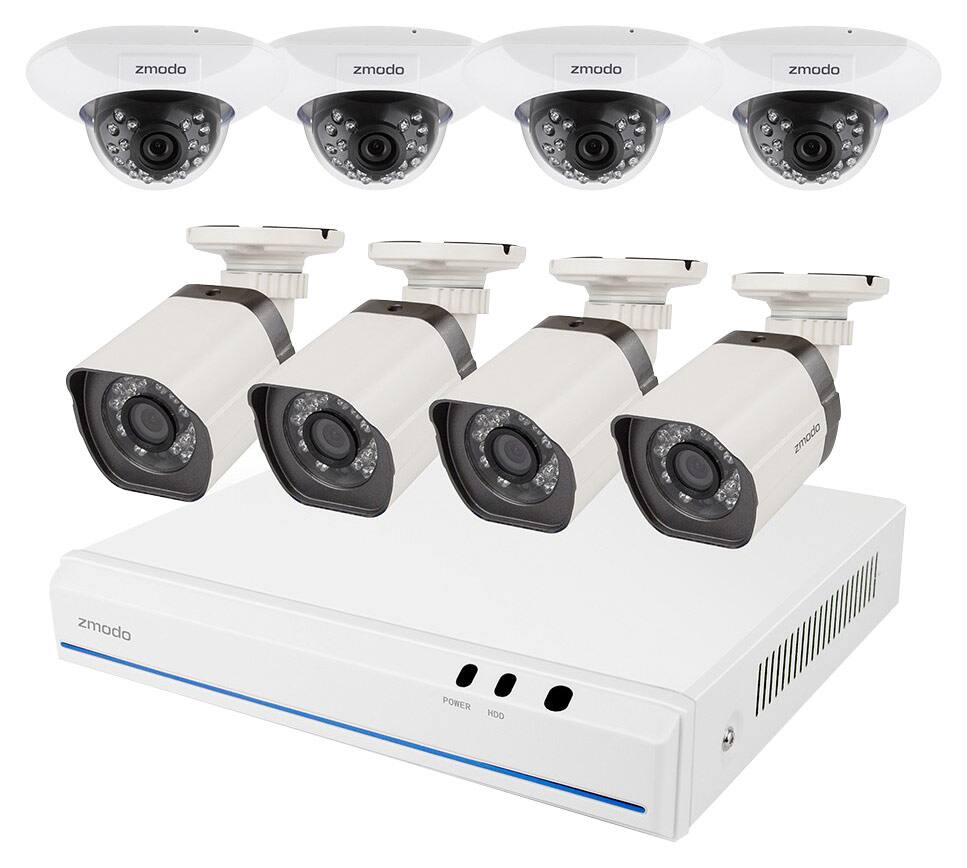

Zmodo 2nd Gen 8-Channel, 8-Camera Surveillance System: Protect your home or business with this surveillance system, which features video-monitoring capabilities on up to 8 channels. Four bullet cameras and 4 dome cameras ensure thorough coverage of your property.
- Receive motion-detection alerts on your mobile device: The Zsight mobile app sends push notifications on your smartphone or tablet.
- Monitor your property with 8 cameras: Four dome cameras and four bullet IP cameras provide versatile surveillance coverage.
- View and record from up to 8 total channels: Included DVR allows 8-channel simultaneous viewing.
- Save recorded video with the pre-installed hard drive: Security-grade 2TB hard drive offers plenty of storage space. Save room on your hard drive with the optional intelligent recording mode.
- Capture high-definition footage: 720p resolution offers high quality footage.
Whats Included
- 8-Channel DVR with 1TB hard drive, 4 dome cameras, 4 bullet IP cameras
- 3' CAT5e network cable, two 50' camera cables, two 98' camera cables
- Owner's manual
A: To playback, you will need to search the files for the date that you which to playback from. This returns a color coded timeline indicating what kind of recording there is, (e.g., motion detected recording or scheduled recording) You can then click on the time to begin playing from that spot. This will not work with an external hard drive.
Q: Is the glass tinted on the dome cameras so you can`t tell what direction they are pointed at?
A: The dome part is not tinted, so the lens will be visible.
Q: Can you get email alerts with this set ?
A: We no longer have email alerts. We replaced them with mobile phone notifications that are sent directly to you phone. You can review your alerts in our web interface at user.zmodo.com. If you have any other questions about the alert features, please contact our support team at 217-903-5037 Monday through Friday from 8 a.m. to 8 p.m. Central time.
Q: Am I reading this correctly? There are 8 cameras but only 4 cables? How does that work?
A: This kit comes with 4 x 50ft cables, and 4 x 98ft cables. 8 in total, one for each camera.
A: You can use a female to female RJ45 coupler to connect the cables that come with this system to your existing cables. The total length of these runs cannot exceed 200ft with CAT5 cabling.
A: You can record audio if you use Zmodo sPoE cameras that have a built in microphone. You can hear the playback online, but there is no audio output to monitors or speakers.
Q: Can the dome cameras be used outside?
A: Yes, the dome cameras can be used outside.
