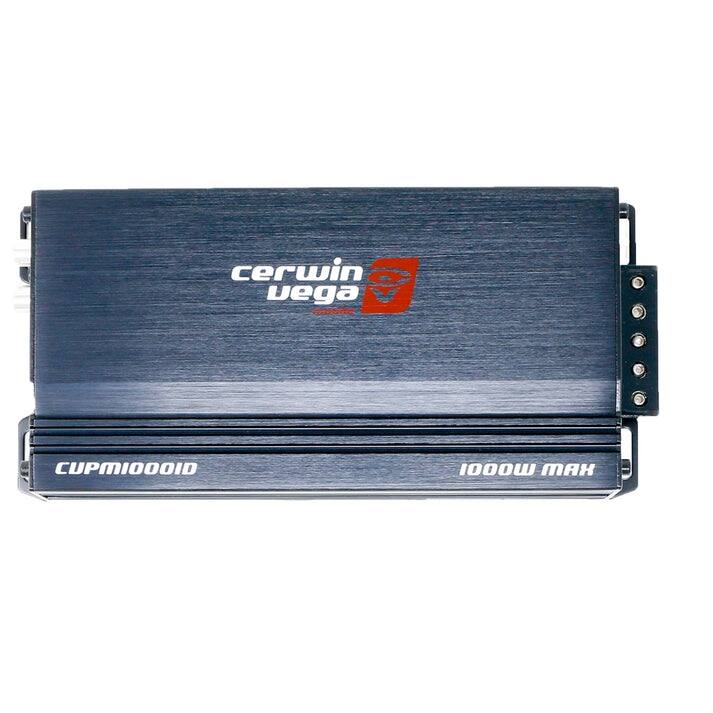

Cerwin Vega - Cerwin Vega- CVPM1000.1D CVPM Mini-Series 1-Channel Mono Block Class-D Amplifier - Black
Cerwin Vega - Cerwin Vega- CVPM1000.1D CVPM Mini-Series 1-Channel Mono Block Class-D Amplifier - Black
More Buying Options
Specifications
- Maximum Watts x Channel @ Ohms310W @ 4ohm, 500W @ 2ohmAmplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Maximum Watts x Channel @ Ohms: 310W @ 4ohm, 500W @ 2ohm (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: CVPM1000.1D
- Product Name: Cerwin Vega- CVPM1000.1D CVPM Mini-Series 1-Channel Mono Block Class-D Amplifier
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Total Power Handling RMS: 310 watts
- Maximum Watts x Channel @ Ohms: 310W @ 4ohm, 500W @ 2ohm (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 1000 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 45 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 85 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Remote Control Included: Wired
- Dimensions
- Product Height: 1.47 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.64 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 847169054075
Get ready to amplify your driving experience with the Cerwin-Vega CVPM Performance Series Amplifiers—designed to make legendary Cerwin-Vega sound accessible for everyone. Whether you're looking to upgrade your car audio system or build it from scratch, the CVPM series delivers outstanding performance, versatility, and reliability at a price that fits your budget.Your Gateway to the LOUD LifeThe CVPM Performance Series Amplifiers offer the perfect balance of price, power, and performance. Whether you’re a bass-head craving earth-shaking lows or an audiophile seeking clean, balanced sound, the CVPM series gives you the tools to create your ultimate car audio setup.CVPM – The Right Price, The Right Power, The Right Products Affordable, powerful, and packed with Cerwin-Vega’s legendary sound quality, the CVPM series delivers the audio performance you’ve been waiting for. Don’t settle—get loud with Cerwin-Vega Mobile!
- Affordable Power, Uncompromising Quality: Tailored for Your Needs: Choose from a wide variety of mono and multi-channel options to perfectly match your setup. High Value, High Performance: Experience the Cerwin-Vega LOUD sound without breaking the bank. Designed for Excellence: Built to deliver clean, powerful output for an unmatched listening experience.
- The Sound of LOUD: Dynamic Power Output: Engineered to push your speakers and subs to their fullest potential. Precision Audio: Tuned for deep bass, crisp highs, and rich mids to transform your music into an immersive experience. Reliable Performance: Sturdy construction ensures long-lasting durability and consistent performance, no matter how hard you push it.
- CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier: Power Rating (RMS) 500W x 1 @ 2Ω 310W x 1 @ 4Ω Power Supply Power Supply: Full WPM Power Supply Threshold: 10.0V-17.0V (DC) Idle Current: (0.7A) Distortion THD 4 (1KHZ @4Ω): 0.01% S/N RATIO (A WEIGHTED @1W): -85dBA S/N RATIO (A WEIGHTED @FP): -101.1dBA Input Sensitivity Hi/Low Level Input: 0.15mV-6.0V Input Impedance Low Level Input: 20KΩ
- Output Stage: Output Stage Output Impedance: 0.0297Ω Damping Factor (50Hz@4Ω): >70 Bandwidth (-3db): 10Hz-45KHz Crossover (1-12dB/Oct) Variable High-Pass: Variable low-Pass: 35Hz-500Hz Fuse Rating 2x30A Dimensions Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)

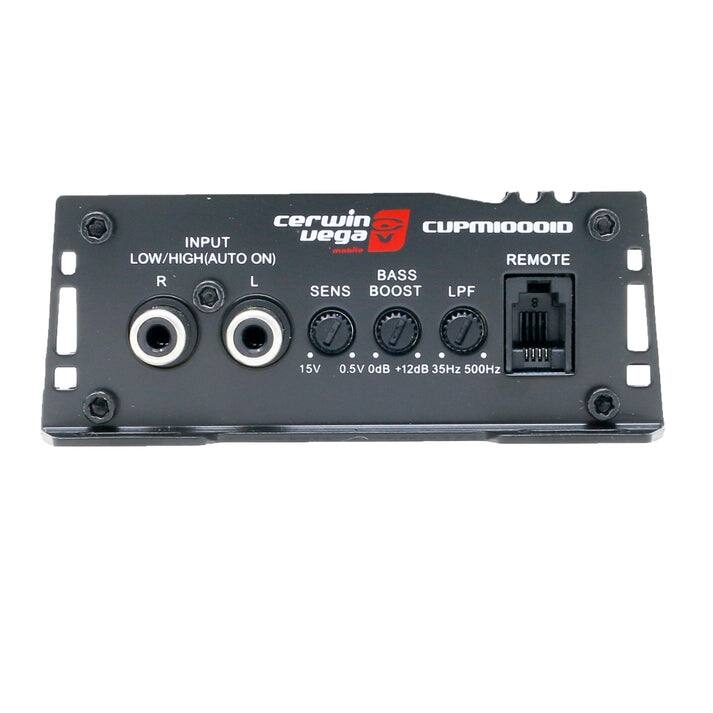

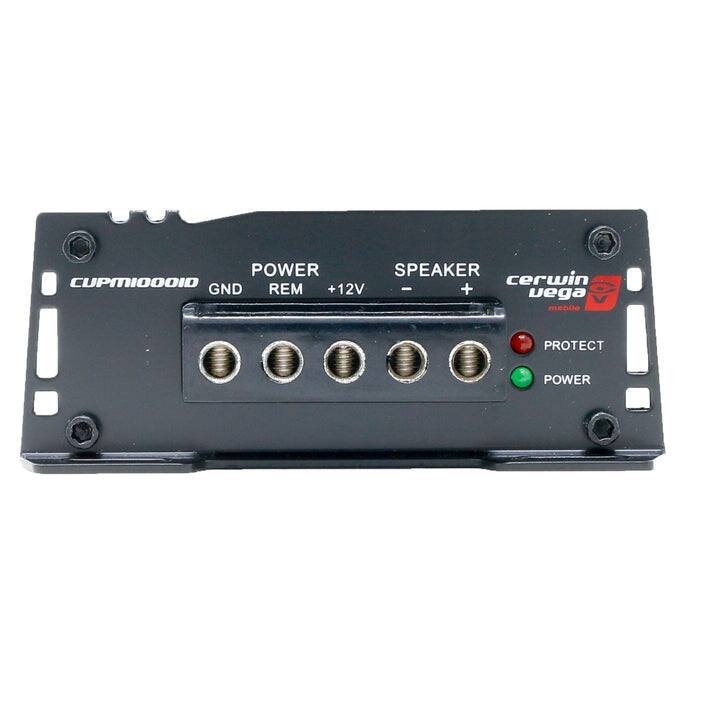

- FEATURES: Vega Bass Boost: This control adds 0 to +12dB of boost at 45Hz. Be cautious when adding boost to some subwoofer systems as they may not be able to handle the additional low frequency boost. Power Input Connections: These connections are for input power, chassis ground, and remote turn-on. Use a minimum of 8 gauge wiring for power and ground connections, 18 gauge for remote turn-on. (4 Gauge is recommended for the mono blocks.)
Whats Included
- amp
