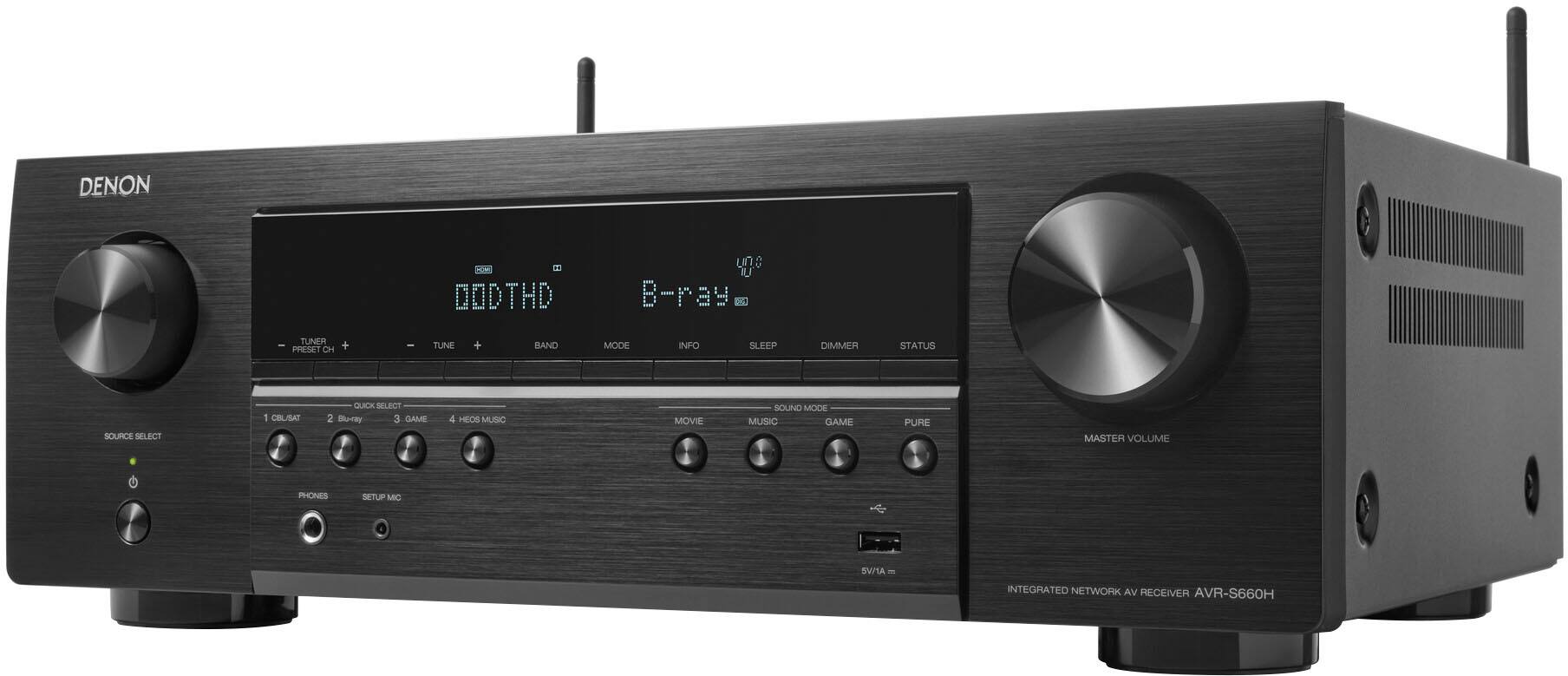

Denon - AVR-S660H (75W X 5) 5.2-Ch. with HEOS 8K Ultra HD HDR Compatible AV Home Theater Receiver with Alexa - Black
- Key Specs
- Continuous Watts x Channel @ Ohms: 100 watts x 5 @ 8 ohms
- Number of Channels: 5.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: 1 x Analog audio, 1 x 3.5mm audio, 1 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Network Connector(s): 1 x LAN
- Video Pass-through: 2160 (4K), 3D, HDR, 1080 (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- General
- Product Name: AVR-S660H (75W X 5) 5.2-Ch. with HEOS 8K Ultra HD HDR Compatible AV Home Theater Receiver with Alexa
- Brand: Denon
- Model Number: AVRS660H
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 100 watts x 5 @ 8 ohms
- Number of Channels: 5.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Surround Sound Supported: Dolby Atmos, Dolby TrueHD, Dolby Surround, DTS Neo:6, DTS-HD Master Audio (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: true (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: WAV, DSD, WMA, MP3, FLAC, ALAC
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): HD Radio tuner, Satellite, AM/FM
- Inputs
- Audio Only Inputs: 1 x Analog audio, 1 x 3.5mm audio, 1 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Video Only Inputs: 2 x Composite video (The number and type of video signal only inputs the product has.)
- Network Connector(s): 1 x LAN
- Number of HDMI Inputs (Total): 6
- Number of USB Inputs: 1
- Video
- Video Pass-through: 2160 (4K), 3D, HDR, 1080 (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- High Dynamic Range Format: HDR 10, HDR 10+, Hybrid Log-Gamma (HLG), Dolby Vision (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Video Only Outputs: 1 x Composite video (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: RCA
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Featured Streaming Services: Pandora, Spotify, TuneIn, TIDAL (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay 2, Denon Heos (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Compatibility
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 17.2 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 747192134532
The Denon AVR-S660H 5.2 Channel AVR delivers extraordinary sound quality from music, movies, and games. Ushering in a new standard for fully immersive, high-resolution home theater and listening, this AV Receiver supports Dolby TrueHD, Dolby Surround, DTS-HD Master Audio and DTS Neo:6 and delivers an unparalleled audio output. Featuring 6 HDMI inputs and 1 HDMI output, the AVR-S660H incorporates an advanced 8K video section that supports 8K/60Hz or 4K/120Hz video pass-through., BT.2020 Wide Color Gamut, High Dynamic Range (HDR), 4:4:4 Pure Color sub-sampling, along with support for 3D content. The AVR also allows high-resolution file playback with FLAC, ALAC, and WAV support, as well as DSD 2.8/5.6MHz. Built-in HEOS technology lets you enjoy your favorite music anywhere throughout your home and connect to other HEOS-enabled speakers. This high-performance AVR allows effortless and flexible voice control on all the major voice agents like Amazon Alexa, Google Assistant, Josh.ai, Apple Siri and AirPlay 2. Play music or control your home appliances, light, and speakers optimally from any corner of your house with just a voice command. Featuring wireless streaming through built-in Bluetooth, Wi-Fi and HEOS, this AVR allows you to seamlessly play music from your favorite streaming apps like Spotify, Tidal, TuneIn, Deezer, and Pandora.
- High-Performance, 8K Ready 5.2 Channel AVR: At 75W/Ch, the new Denon AVR-S660H supports latest 3D audio formats like Dolby TrueHD, Dolby Surround, DTS-HD Master Audio and DTS Neo:6 and delivers the classic Denon sound for movies, games, and music
- Advanced 8K HDMI Section: Enjoy your favorite movies, shows and games with the best picture quality available. The AVR features three dedicated 8K inputs that support 8K/60Hz and 4K/120Hz video pass-through, along with HDR10, HDR10+, Dolby Vision & HLG for exceptional color and clarity
- Ultimate Gaming Experience: With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your exceptional gameplay with amazing imaging, crystal-clear audio, as well as reduced lag and latency
- Wireless Multi-Room Music Streaming: Stream Unlimited Music from major streaming platforms like Pandora, Spotify, TuneIn and More, via Wi-Fi, Airplay or Bluetooth with built-in HEOS Multi-Room Digital Streaming and enjoy Hi-Fi, multi-room surround sound
- Full Voice Control Compatibility: Adjust the volume, change tracks & switch inputs absolutely hands-free with Amazon Alexa voice control. Also works with Google Assistant, Apple Siri & integrates with home-automation systems like Josh.ai
- Versatile Connection Options: The AVR-S660H is equipped with 6 HDMI In / 1 Out, 2 Digital, 2 Analog, 1 Coaxial, and 1 Phono Input that allows you to connect various audio sources like CD Players, Blu-Ray, Turntables and more. Features 2 Pre-Outs to connect subwoofers for additional bass
- Award-Winning On-Screen Setup Guide: Denon’s Setup Assistant provides simple, intuitive instructions to connect your TV, specify EQ settings, and tune the AVR for an optimal listening experience. The back-panel is laid out with color-coded connections that make organizing hassle-free
Q: Can this receiver be paired with bluetooth headphones?
A: Hi Dave, Yes - the AVR-S660H can transmit a Bluetooth signal to bluetooth-enabled headphones. Here is a link with the details: https://manuals.denon.com/AVRS660H/NA/EN/DRDZSYyhpiwfqz.php
A: Hi Johnny, The AVR-S660H has no less than three HDMI 2.1 inputs (labeled as 8K). A PS5 and an XBox Series X can both connected at the same time. Of course, only one of which can be displayed at a time.
Q: What kind of subwoffer do I need for bass and how do I hook it up too hear it
A: There are two (2) SUBWOOFER pre-outs on the rear of the unit. You will need a self-powered subwoofer (they come in a variety of sizes and power outputs!) for this and an RCA type connector cable (all of my new subs came with a cable in their box) that has one male end plug for the AVR subwoofer output and either one or two male end plugs for the input on the subwoofer(s). Once installed, go into your AVR's menu to set up for the subwoofer(s). It really is easy to do and as I said, you can hook up two subs (again, if you unit has two!) if that is something you desire. I have two 10 inch subs on my home theater setup from my Denon AVR-X4300H that I bought at my local Best Buy a couple of years ago (Two 10 inch subs!) For my new Denon AVR-S660H I am using a Martin-Logan 10 inch Sub that I also bought a few years ago at Best Buy and it works great with this AVR. All the best! SSSS
Q: Do I need banana plugs to plug in speakers or will regular speaker wire work?
A: Regular speaker wire will work fine. You can unscrew the speaker connector to expose the hole for the speaker wire. Tighten the speaker connector and you are finished. I will say that banana plugs make life easier if you ever need to remove your speaker wire for whatever reason.
A: Hi Bob4, I don't see anything about ARC listed in the spec's of your Sharp AQUOS LC-40LE700UN. The best way to enjoy sound from any sources originating from your TV is to connect your Sharp AQUOS LC-40LE700UN to the AVR-S660H with an optical cable for audio. HDMI is recommended for sending any Video information from the AVR-S660H to your TV.
A: Hello, Yes indeed - with the AVR-S660H there is typically a small plastic cap on the end of the speaker terminal which needs to be removed for the insertion of 4 mm banana plugs.
Q: iis the remote learnable; be used to turn off a sony tv
A: The provided remote control is not a learnable remote control. However, with today's HDMI control, the TV, Receiver, and Sources communicate using CEC (HDMI Control). Basic control is provided with this new technology—power on and off plus volume. Once the receiver is appropriately set up, the need for the receiver's remote should be rare.
Q: Can I use my cell phone to play music on U-Tube with this unit?
A: Yes you can play youtube audio content on the AVR-S660H. The audio signal needs to be sent to the receiver via bluetooth.
