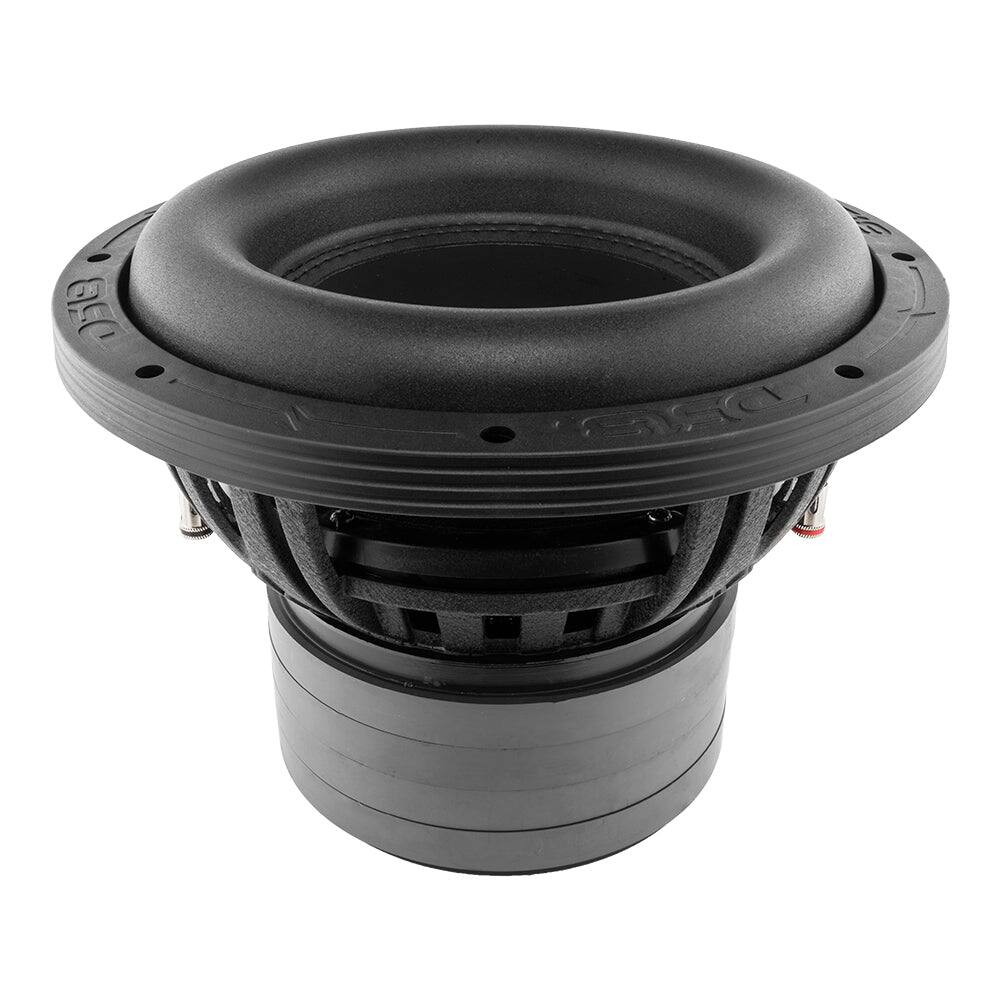

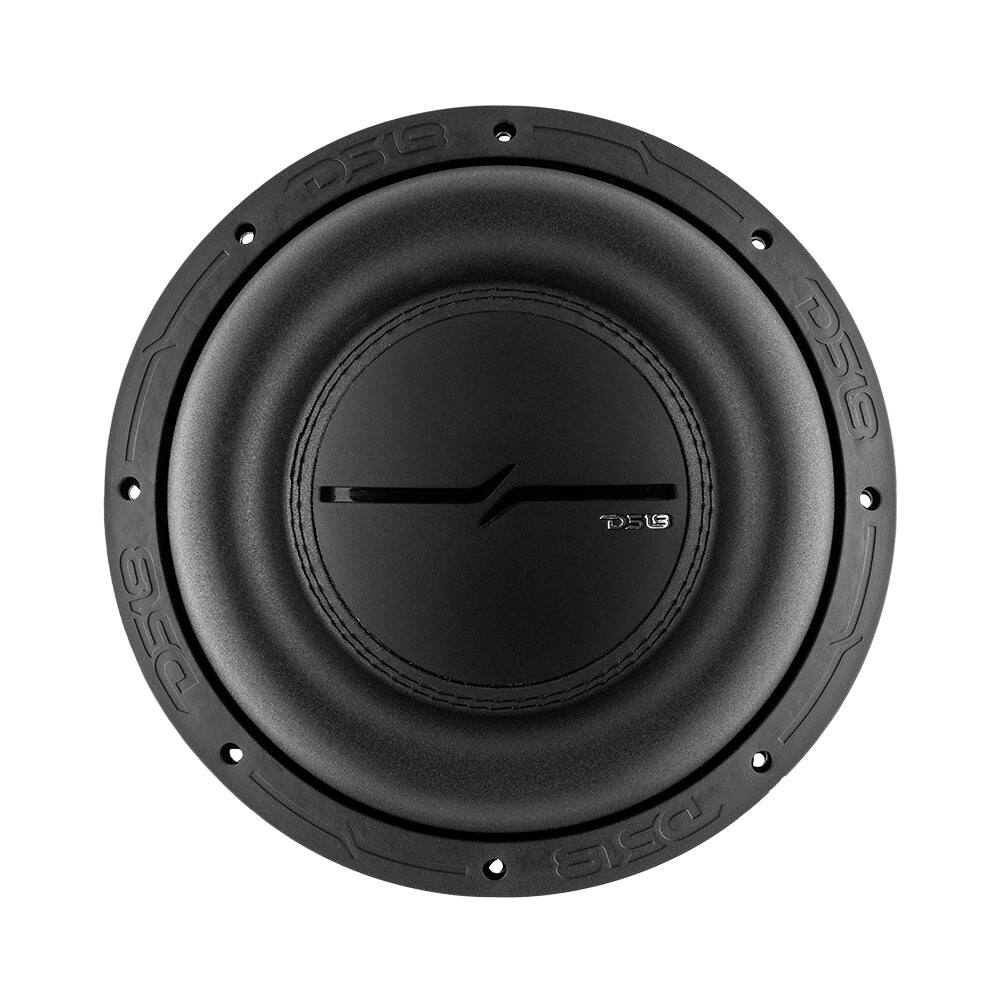

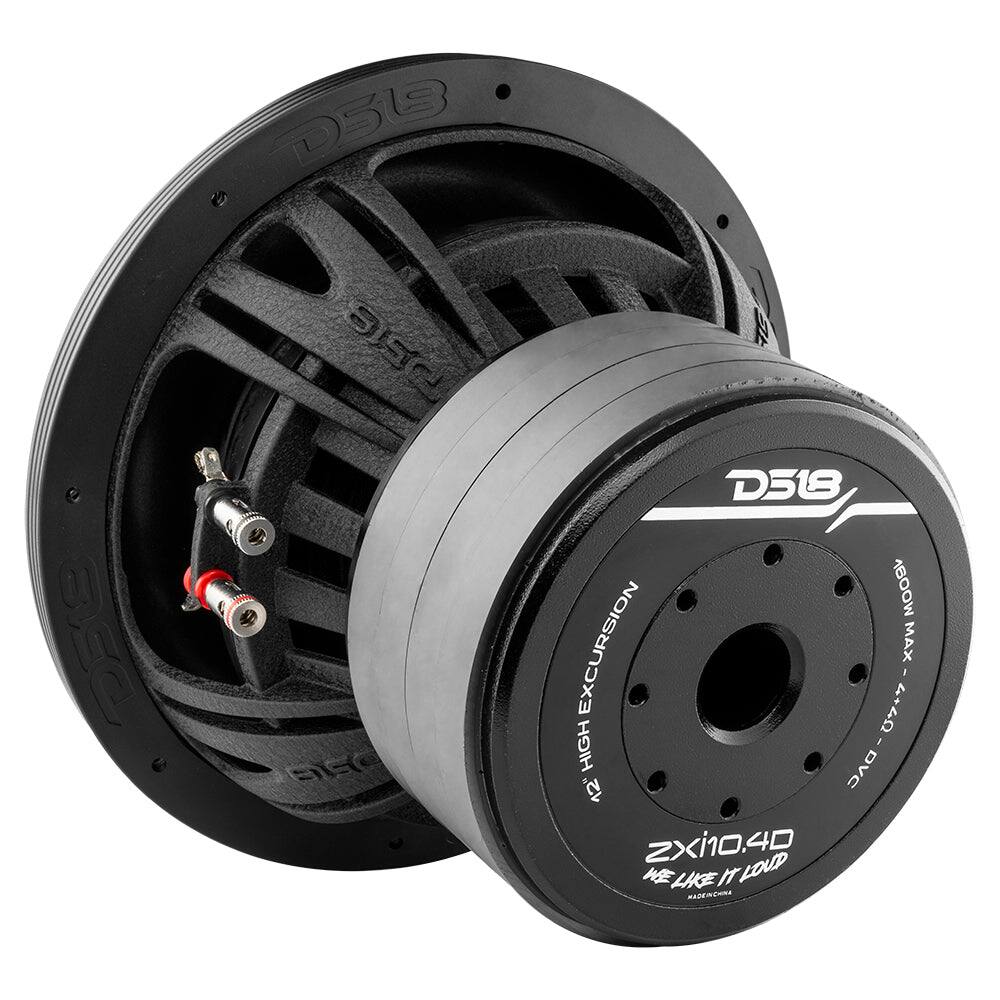

DS18 Audio - ZXI 10" High Excursion Subwoofer with Quad Stacked Magnet, 800W RMS Dual 4-Ohm
Reviews coming soon
About this product
The ZXI10.4D is a 10" car subwoofer from the DS18 ZXI series. It handles 800 watts RMS and uses dual voice coils at 4 ohms per coil, so you can wire multiple subwoofers to the final impedance your amplifier is stable at. Peak power handling is 1600 watts. The high-excursion motor and suspension let the cone travel farther for deeper low-frequency output. The motor uses a quad stacked magnet assembly. Mounting requires a 9.36" cutout diameter and 6.91" of mounting depth, so confirm your enclosure before installing. Pair it with a matching monoblock amplifier and a properly tuned enclosure to get the most low-frequency output.
Woofer Size
10"Features
800W RMS / 1600W Peak Power Handling
Rated at 800 watts RMS and 1600 watts peak. Behind that rating: 2.5" voice coil on a black aluminum former wound with CCAW wire and a 196 oz ferrite motor. That is what lets a 10" cone move this much air without losing control.
Dual 4-Ohm Voice Coil
Dual voice coils let you wire multiple subwoofers in series or parallel to reach the final impedance your amplifier is stable at, which gives you room to grow the system later.
High-Excursion Motor for Deep Bass
The high-excursion motor and suspension allow the cone to travel farther than a conventional subwoofer, which moves more air and produces the low frequencies you feel rather than just hear. Give it a properly tuned sealed or ported enclosure to take advantage of it.
Fitment and Recommended Enclosure

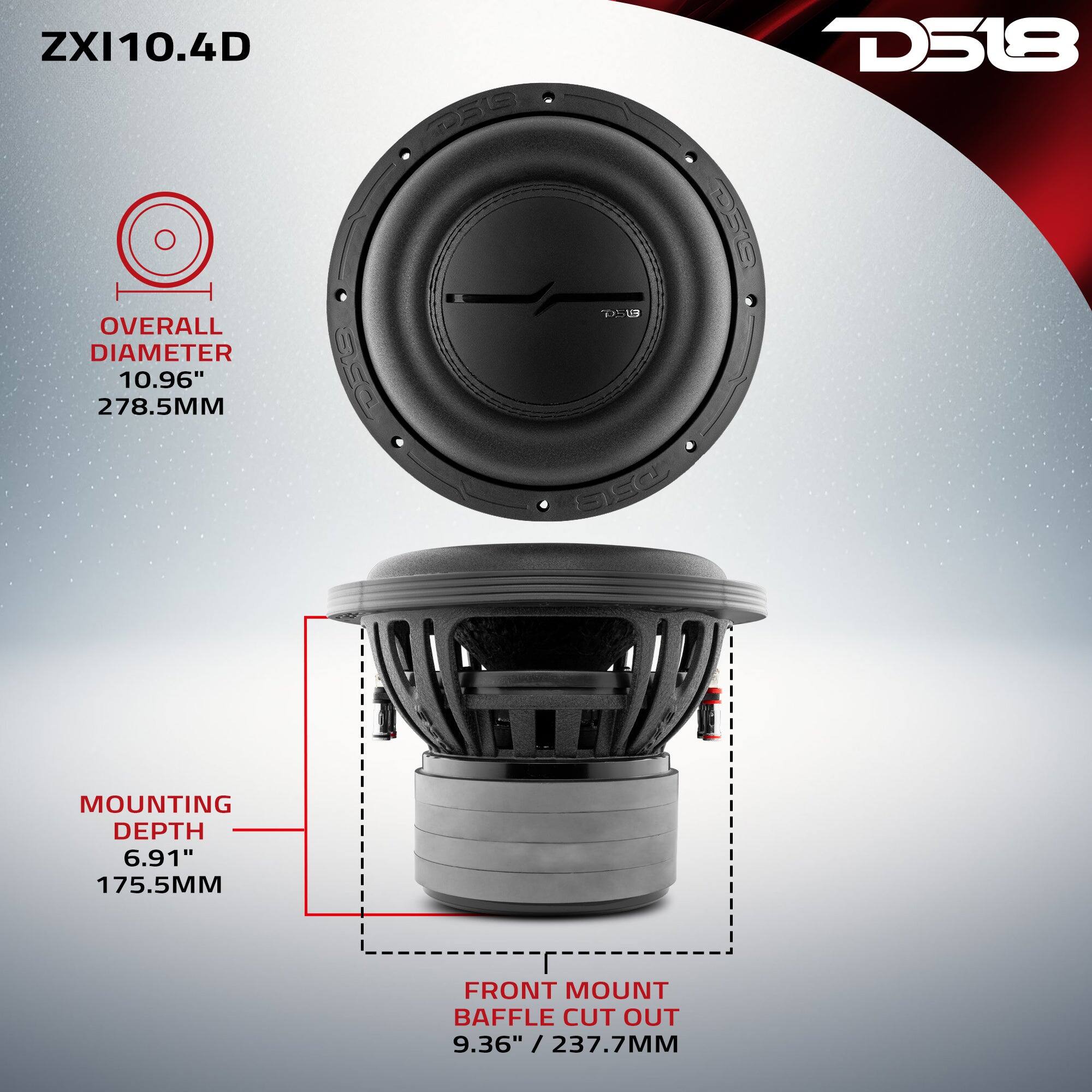

This 10" subwoofer requires a 9.36" cutout diameter and 6.91" of mounting depth. DS18 recommends a sealed enclosure of 0.5 cu ft and a ported enclosure of 1.25 cu ft tuned to 30Hz. Check these numbers against your enclosure before ordering: enclosure volume and tuning change the low-frequency response as much as the driver does.

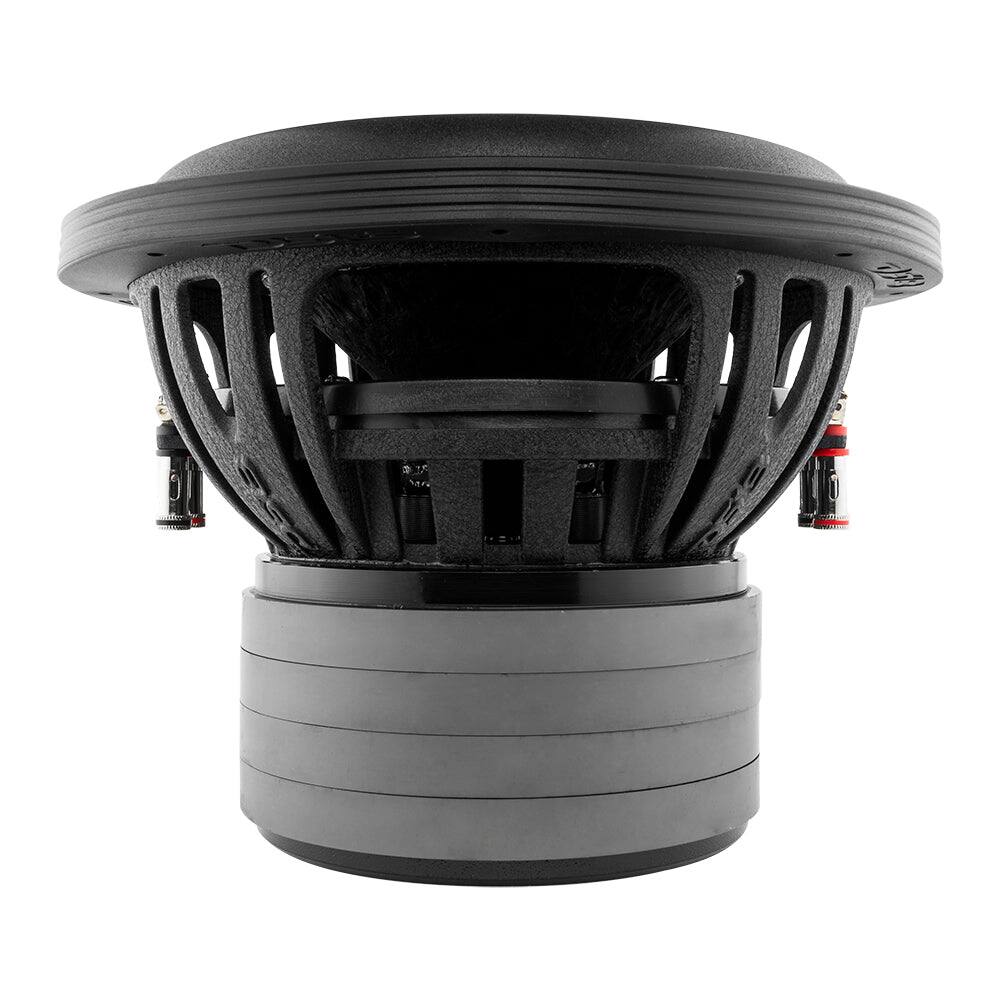

Quad Stacked Magnet
A quad stacked magnet assembly increases motor force, which improves cone control at high power and helps the subwoofer stay accurate instead of getting loose and boomy when driven hard.
Specifications
- RMS Power800 wattsPeak Power Handling1600 wattsImpedance4 ohmsSensitivity86 decibelsDual Voice CoilsYesWoofer Size10"
