JBL - GSF6 6.5" 200W 8 Ohm and 70V/100V Ground-Stake Landscape-Outdoor Speaker, (Pair) - Tan
Color
TanRelated Item
Specifications
- Speaker TypeLandscapeRMS Power100 watts
- Key Specs
- Speaker Type: Landscape
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: JBL
- Model Number: JBL-GSF6-TN
- Product Name: GSF6 6.5" 200W 8 Ohm and 70V/100V Ground-Stake Landscape-Outdoor Speaker, (Pair)
- Color: Tan
- Audio
- Speaker Type: Landscape
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 65 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 87 decibels
- Tweeter Type: Dome
- Woofer Type: Cone
- Number of Speakers: 1
- Tweeter Size: 1 inches
- Driver Size: 1 inches
- Woofer Size: 6.5 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Banana Jack/Screw Terminals
- Features
- Indoor Or Outdoor Use: Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 21.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.7 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: [Titanium, Neodymium]
- Driver Material: Aluminum
- Woofer Material: [Polypropylene]
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 691991039348
The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation. Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

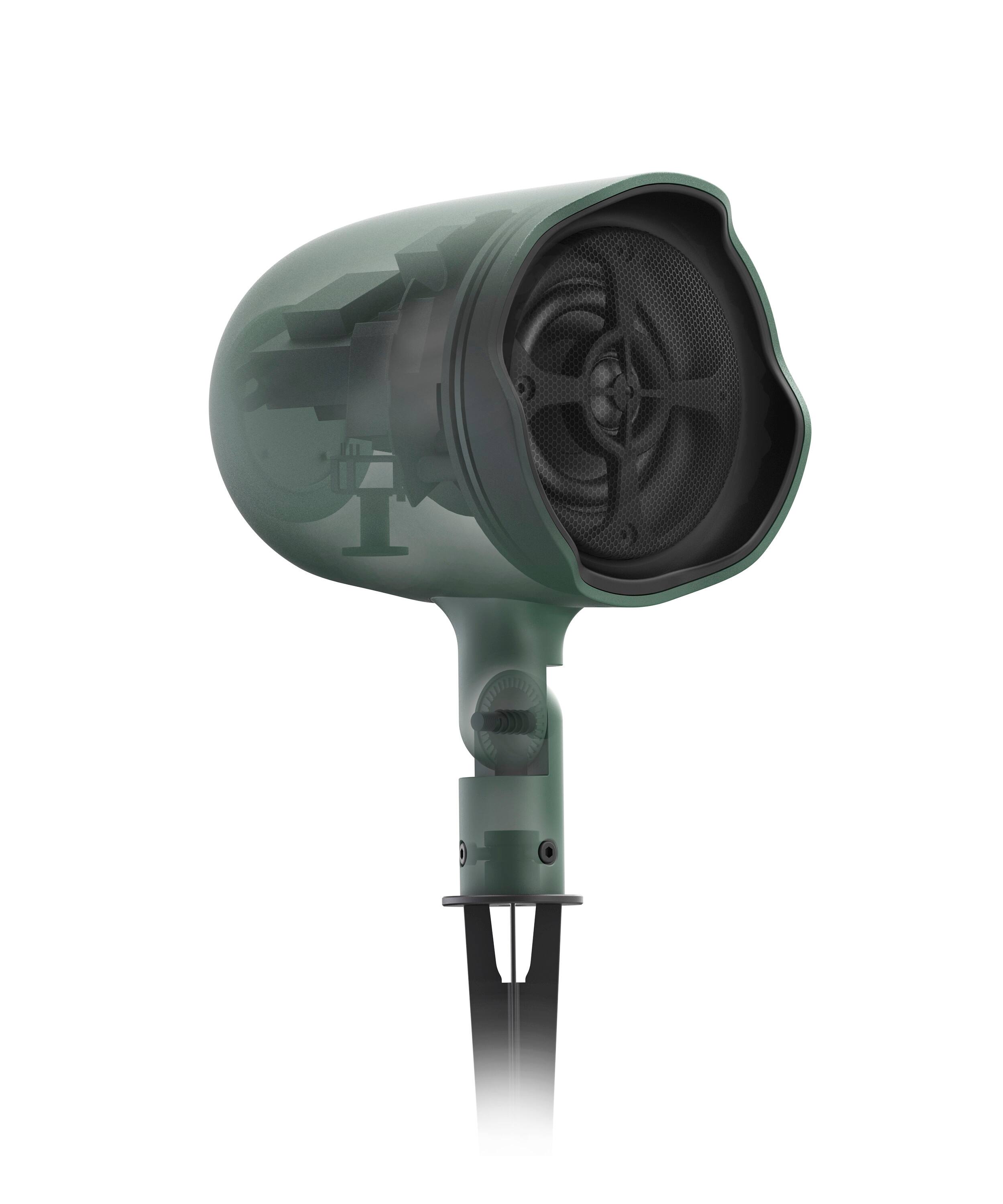

- Transducers: 165 mm (6.5”) woofer with polypropylene cone and 25 mm (1”) voice coil on aluminum voice coil former; 25 mm (1.0”) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
- Power handling: At 8Ω setting: 50W continuous pink noise, 100W continuous program
- Frequency range: 65 Hz–20 kHz
- Multi-tap 30W transformer: Switchable for 8Ω direct operation or use in 70V/100V distributed systems. 70V: 30 W, 15 W, 7.5 W; 100V: 30W, 15 W
- IP Rating: IP66 rated against water and dust ingress. Bottom drip hole provides drainage for drivers.
- Expandable: Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers

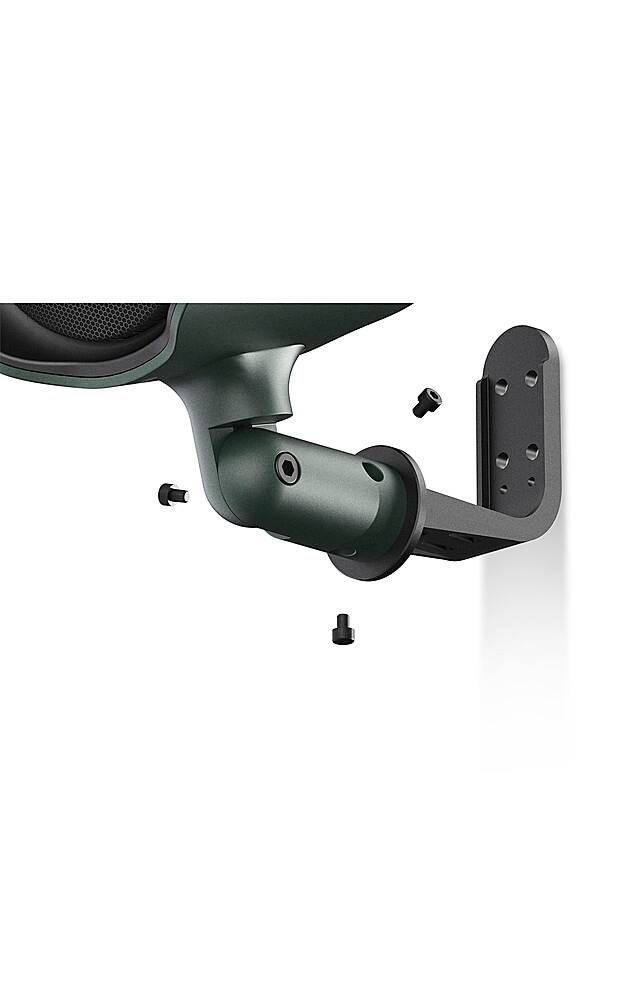

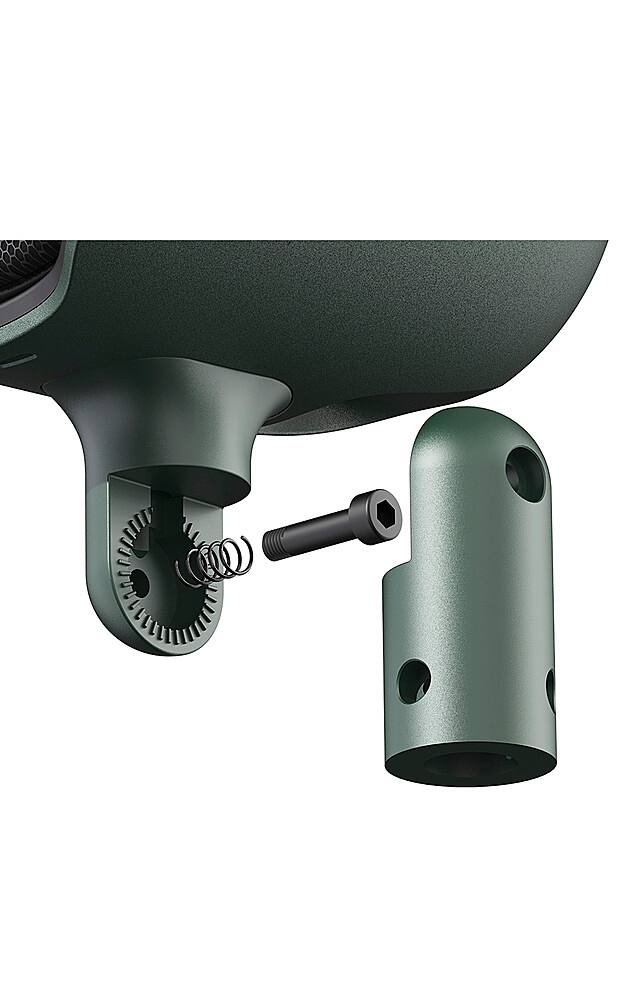

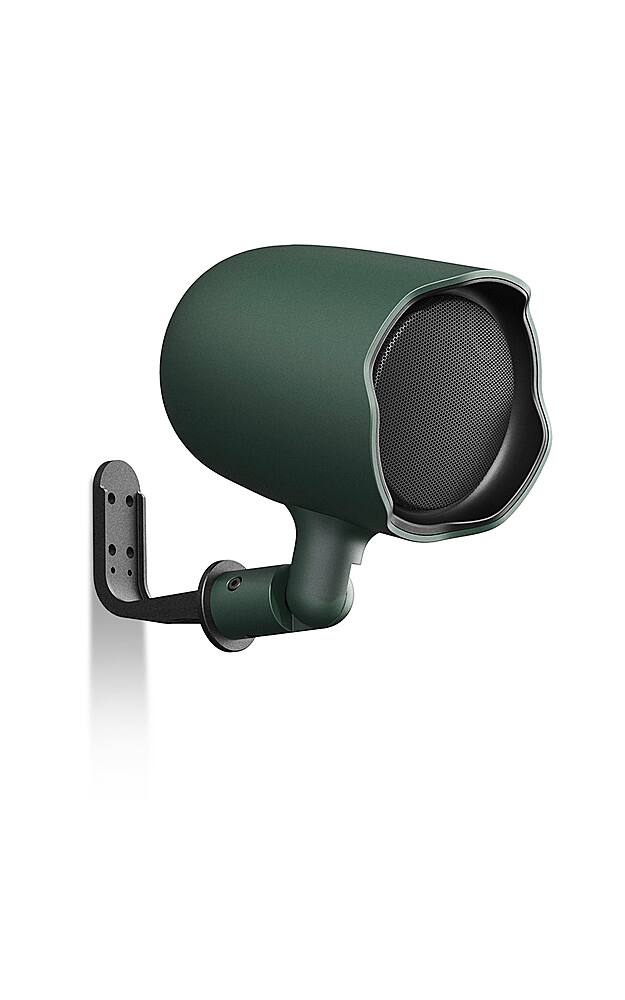

- Flexible Install: Aimable via adjustable hinge. Includes ground stake and L-bracket for surface mount.

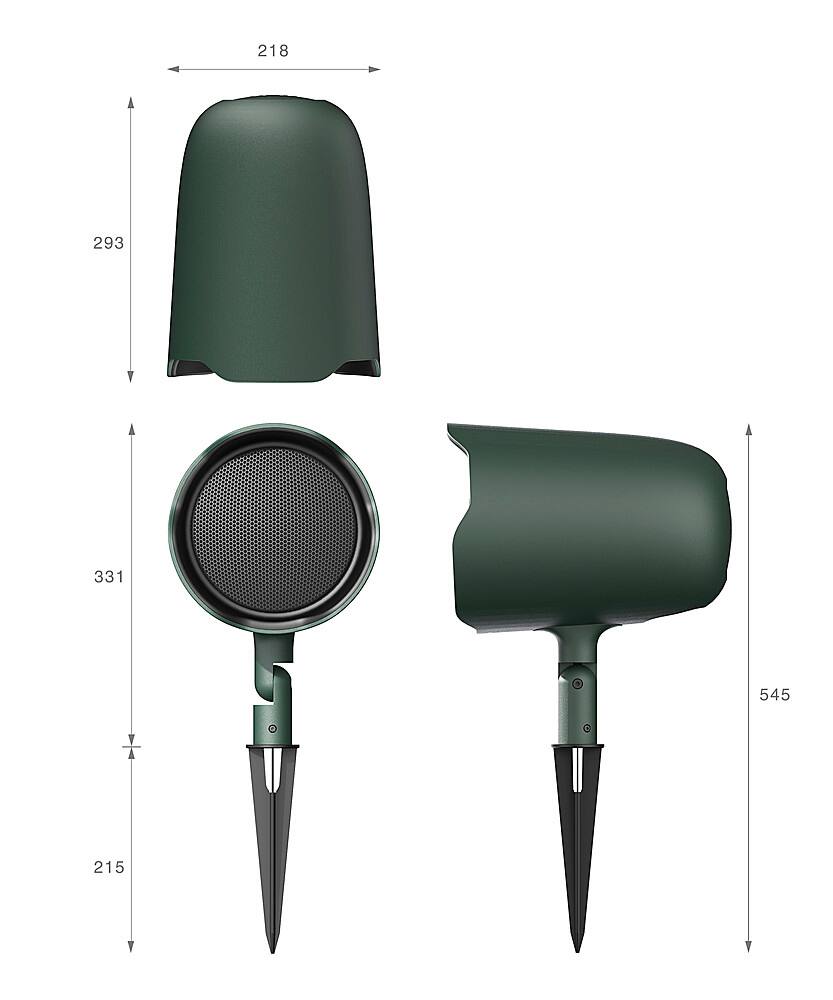

- Dimensions: Cabinet (8.6 x 11.6 in). Assembly height (17.5 in) with L-bracket base (at 90°) and (21.5 in) with ground stake base.
- Installation Note: Installation must be done by qualified persons using safe installation standards. The installer is responsible for proper selection and use of mounting hardware and processes to install the speakers in a safe manner.
- Transducers: 165 mm (6.5”) woofer with polypropylene cone and 25 mm (1”) voice coil on aluminum voice coil former; 25 mm (1.0”) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
- Power handling: At 8Ω setting: 50W continuous pink noise, 100W continuous program
- Frequency range: 65 Hz–20 kHz
- Multi-tap 30W transformer: Switchable for 8Ω direct operation or use in 70V/100V distributed systems. 70V: 30 W, 15 W, 7.5 W; 100V: 30W, 15 W
- IP Rating: IP66 rated against water and dust ingress. Bottom drip hole provides drainage for drivers.
- Expandable: Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
- Flexible Install: Aimable via adjustable hinge. Includes ground stake and L-bracket for surface mount.
- Dimensions: Cabinet (8.6 x 11.6 in). Assembly height (17.5 in) with L-bracket base (at 90°) and (21.5 in) with ground stake base.
- Installation Note: Installation must be done by qualified persons using safe installation standards. The installer is responsible for proper selection and use of mounting hardware and processes to install the speakers in a safe manner.
Whats Included
- 2 Speakers
- 2 Ground Stakes
- 2 L Brackets
- 2 Speakers
- 2 Ground Stakes
- 2 L Brackets
Q: Can I use these speakers with a distributed system?
A: Yes, the speakers can be used with a 70V/100V distributed system.
Q: Does the JBL GSF6 speaker have an IP rating?
A: Yes, the speaker is IP66 rated for protection against water and dust.
Q: What is the peak power handling of this JBL speaker?
A: The peak power handling for this speaker is 200 watts.
Q: What is the frequency range of the JBL GSF6 speaker?
A: This speaker has a frequency range of 65Hz to 20kHz.
Q: Can the speaker be used with a subwoofer?
A: Yes, you can extend the system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.
Q: What is the difference between the 70V/100V and 8-ohm operation modes?
A: The 70V/100V mode is used for distributed audio systems, while the 8-ohm mode allows for direct operation.
Q: What is the purpose of the multi-tap transformer?
A: The multi-tap transformer allows the speaker to be used on 70V/100V distributed systems and is switchable for 8-ohm direct operation.
Q: Do the ground stake and L-bracket come included with the speaker?
A: Yes, the speaker comes with both a ground stake and an L-bracket for versatile mounting options.
