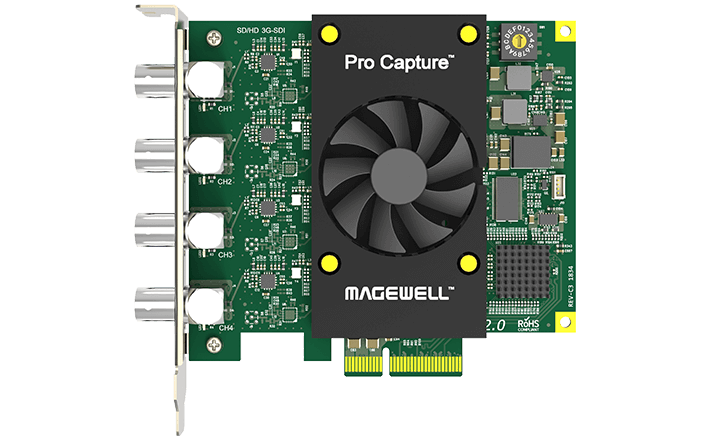

The Magewell Pro Capture Quad SDI 11090 is a professional PCIe capture card designed for high-density SDI video ingest. Featuring four independent SDI inputs, it enables simultaneous capture from multiple cameras or SDI sources in broadcast, live production, enterprise AV, medical, and multi-view monitoring applications. Each SDI input supports SD, HD, 3G-SDI, and 2K formats up to 2048×1080, with support for professional color formats and up to 10-/12-bit color depth. Embedded SDI audio is captured alongside video with accurate synchronization, making the card suitable for demanding production workflows. A high-performance onboard video engine provides advanced processing functions including de-interlacing, up- and down-scaling, cropping, aspect ratio conversion, color space conversion, and on-screen display composition. These functions are accessible through Magewell’s SDK, helping offload processing from the host CPU and maintain stable performance. Designed for scalability, the card includes an onboard rotary switch for assigning unique device IDs, enabling multiple cards to be installed in a single system for large multi-input capture setups. Compatible with Windows, macOS, and Linux, the Magewell Pro Capture Quad SDI 11090 delivers reliable, professional-grade SDI capture for high-performance video workflows.

• Four Independent SDI Inputs: PCIe capture card with 4× SDI inputs for simultaneous multi-camera or multi-source capture in broadcast, AV, and enterprise environments.
• Supports SD, HD-SDI & 3G-SDI: Compatible with common SDI formats up to 2048×1080 for reliable capture from cameras, switchers, and production equipment.
• 8/10/12-Bit Color Depth Support: Handles multiple color spaces and bit depths for accurate color reproduction in professional capture applications.
• Low-Latency PCIe Gen2 x4 Interface: Direct PCI Express connection delivers stable, low-latency performance for live production, monitoring, and real-time encoding. Supports multiple cards per system.
• Hardware-Based Video Processing: Supports cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, and frame rate conversion via SDK control.
• Four Independent SDI Inputs: PCIe capture card with 4× SDI inputs for simultaneous multi-camera or multi-source capture in broadcast, AV, and enterprise environments.
• Supports SD, HD-SDI & 3G-SDI: Compatible with common SDI formats up to 2048×1080 for reliable capture from cameras, switchers, and production equipment.
• 8/10/12-Bit Color Depth Support: Handles multiple color spaces and bit depths for accurate color reproduction in professional capture applications.
• Low-Latency PCIe Gen2 x4 Interface: Direct PCI Express connection delivers stable, low-latency performance for live production, monitoring, and real-time encoding. Supports multiple cards per system.
• Hardware-Based Video Processing: Supports cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, and frame rate conversion via SDK control.
