Minisforum - UM870 Slim Mini Desktop PC, AMD Ryzen 7 8745H, 16 GB RAM, 512 GB SSD Storage - Silver
Highlights
- Key Specs
- Processor Model: AMD Ryzen 7 8000 Series (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 512 gigabytes
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: AMD Radeon 780M (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Brand: Minisforum
- Model Number: UM870SLIM16
- Product Name: UM870 Slim Mini Desktop PC, AMD Ryzen 7 8745H, 16 GB RAM, 512 GB SSD Storage
- Color: Silver
- Year of Release: 2024
- Processor
- Processor Brand: AMD
- Processor Model: AMD Ryzen 7 8000 Series (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: 8745H
- Processor Model Year of Release: 2024 (The year the processor model was initially available for sale or built into a computer.)
- CPU Base Clock Frequency: 3.8 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The average rate at which the processor is able to execute tasks under normal operating conditions as asserted by the manufacturer.)
- CPU Boost Clock Frequency: 4.9 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The maximum rate at which the processor is able to execute tasks, typically only used for a short period of time as needed. This rate may temporarily boost the processor's performance, but may result in overheating, shutdown, or damage to equipment if sustained.)
- Number of CPU Cores: 8-core (A core, or "brain" of a CPU, allows it to receive and execute instructions. Each core can work independently or together to perform parallel operations.)
- Number of CPU Threads: 16 (Generally, the more threads, the faster and more responsive the operating system.)
- Unlocked Processor: false
- Neural Processing Unit (NPU): false (Whether the product comes with an integrated neural processing unit (NPU) that performs computations for AI (artificial intelligence) functions to increase proficiency of the CPU and reduce power consumption.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 512 gigabytes
- Solid State Drive Capacity: 512 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Solid State Drive Interface: NVMe (Connects the solid state drive to the host system. PCI and SATA interfaces are the most common; PCI interfaces are typically faster, but SATA interfaces are compatible with a wider range of systems.)
- Memory
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 5600 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 2
- Number of Memory Sticks Included: 2
- System Memory RAM Expandable To: 96 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: AMD Radeon
- Graphics: AMD Radeon 780M (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Unlocked GPU: false
- GPU Base Clock Frequency: 0.4 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.2 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 0.8 gigahertz
- Number of GPU Cores: 12
- Compatibility
- Operating System: Windows 11 Pro (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Operating System Architecture: 64-bit (An operating system (OS) manages computer hardware, software resources, and programs in conjunction with the system's processor. 64-bit operating systems can handle more data at once than 32-bit systems, resulting in faster speeds, more effiency, and overall improved performance.)
- Connectivity
- Display Connector(s): 1 x HDMI 2.1, 1 x DisplayPort 1.4, Display connection via USB port (The number and type of connectors used to connect to an external display.)
- Number of HDMI Outputs (Total): 1
- Number of DisplayPort Outputs (Total): 1
- Number of Thunderbolt Ports (Total): 0
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 4, 2 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of USB Ports (Total): 5
- Number of USB-A Charging Ports: 4
- Number of USB-C Charging Ports: 1
- Number Of PS/2 Ports: 0
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Ethernet Ports: 1
- Network Connectivity: 5G (The manner in which a device sends data to another device over a long distance using a cellular network.)
- Cooling
- CPU Cooling System: Air
- Number of CPU Cooling Fans: 1 (The quantity of fans contained within the device designed to cool the Central Processing Unit (CPU).)
- GPU Cooling System: Air
- Number of GPU Cooling Fans: 1 (The quantity of fans contained within the graphics card, or graphics processing unit (GPU) designed to cool it.)
- Power
- Power Supply Maximum Wattage: 120 watts
- Expansion
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of Internal 2.5" Bays: 0
- Number Of Internal 3.5" Bays: 0
- Number Of Internal 5.25" Bays: 0
- Number Of External 3.5" Expansion Bays: 0
- Number Of External 5.25" Expansion Bays: 0
- Number Of PCI-E x1 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x16 Slots: 0
- Features
- Media Card Reader: false (A hardware device that allows for access to data on a memory card and enables the transfer of its files to a computer. These devices may have one or multiple slots for various types of memory cards, and may be integrated into the computer or available as an external device.)
- Customizable Case Lighting: false
- Size: Mini
- Dimensions
- Product Height: 5.12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.98 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.98 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.48 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- EPEAT Qualified: false (The Electronic Product Environmental Assessment Tool (EPEAT) was designed to provide an environmental assessment tool for purchasers. In order to qualify for EPEAT, a product must meet all 23 required criteria.)
- Included
- Included Software: None
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: false
- Mouse Included: false
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: None
- Other
- UPC: 4897118836685
The Minisforum UM870 Slim Mini PC packs serious power into a sleek, space-saving chassis. Featuring the AMD Ryzen™ 7 8745H processor with 8 cores and 16 threads (up to 5.0GHz), it delivers exceptional multitasking and responsiveness for demanding workflows. Paired with AMD Radeon™ 780M graphics based on RDNA 3 architecture, this mini PC supports ultra-high-resolution output across HDMI 2.1, DisplayPort 1.4, and USB4—ideal for creators, professionals, and entertainment enthusiasts alike. With 32GB DDR5 RAM, a 1TB PCIe 4.0 SSD, and support for up to 4TB of storage, the UM870 Slim is engineered for speed, stability, and silent efficiency

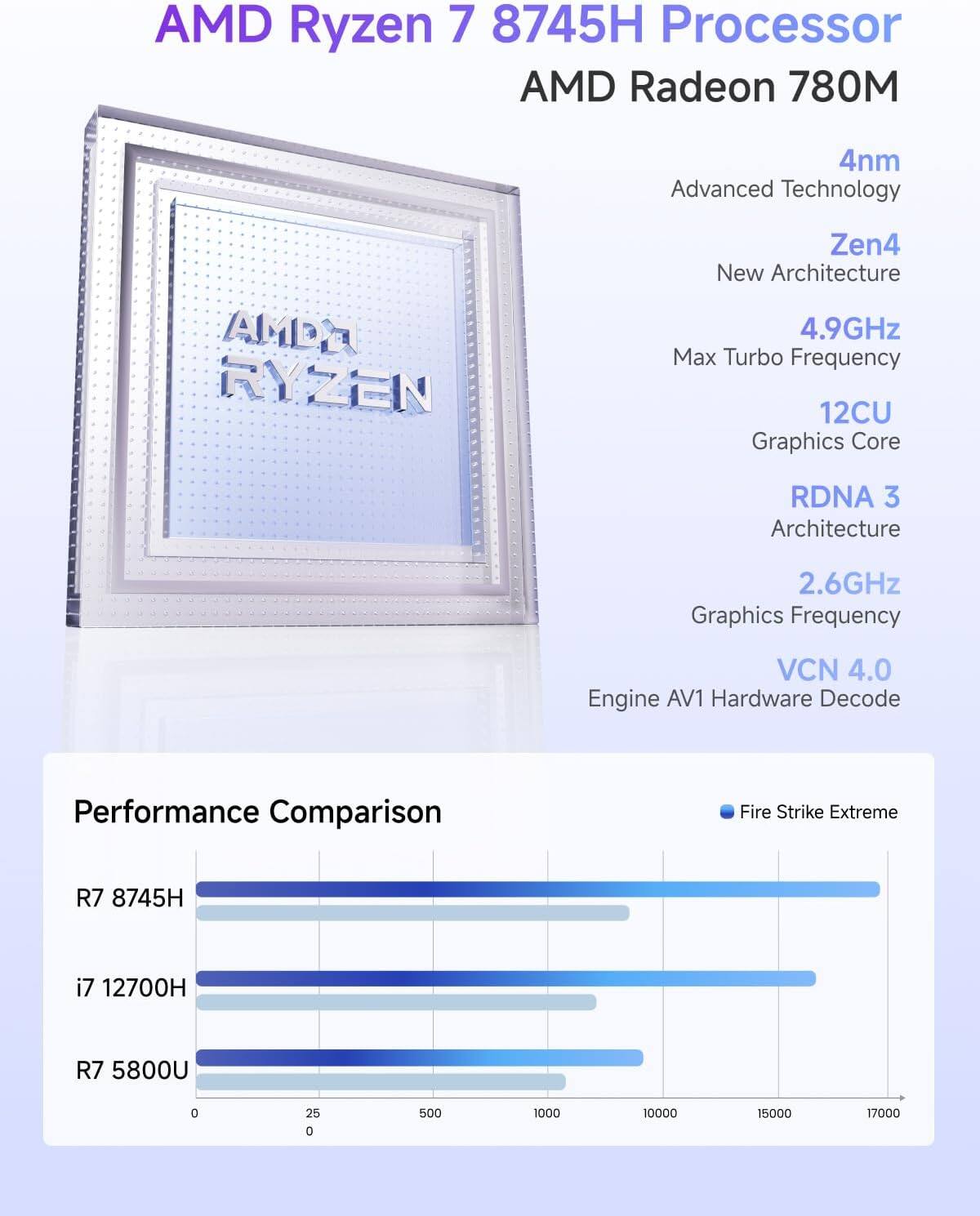

- Zen 4 Performance: AMD Ryzen 7 8745H (8C/16T, up to 5.0GHz) delivers 21% faster performance than Ryzen 5 7640HS, with lower power draw and superior multitasking
- RDNA 3 Graphics: Integrated AMD Radeon 780M GPU supports 8K@60Hz via HDMI 2.1 and USB4, plus 4K@144Hz via DP 1.4—perfect for high-res content creation and smooth visuals

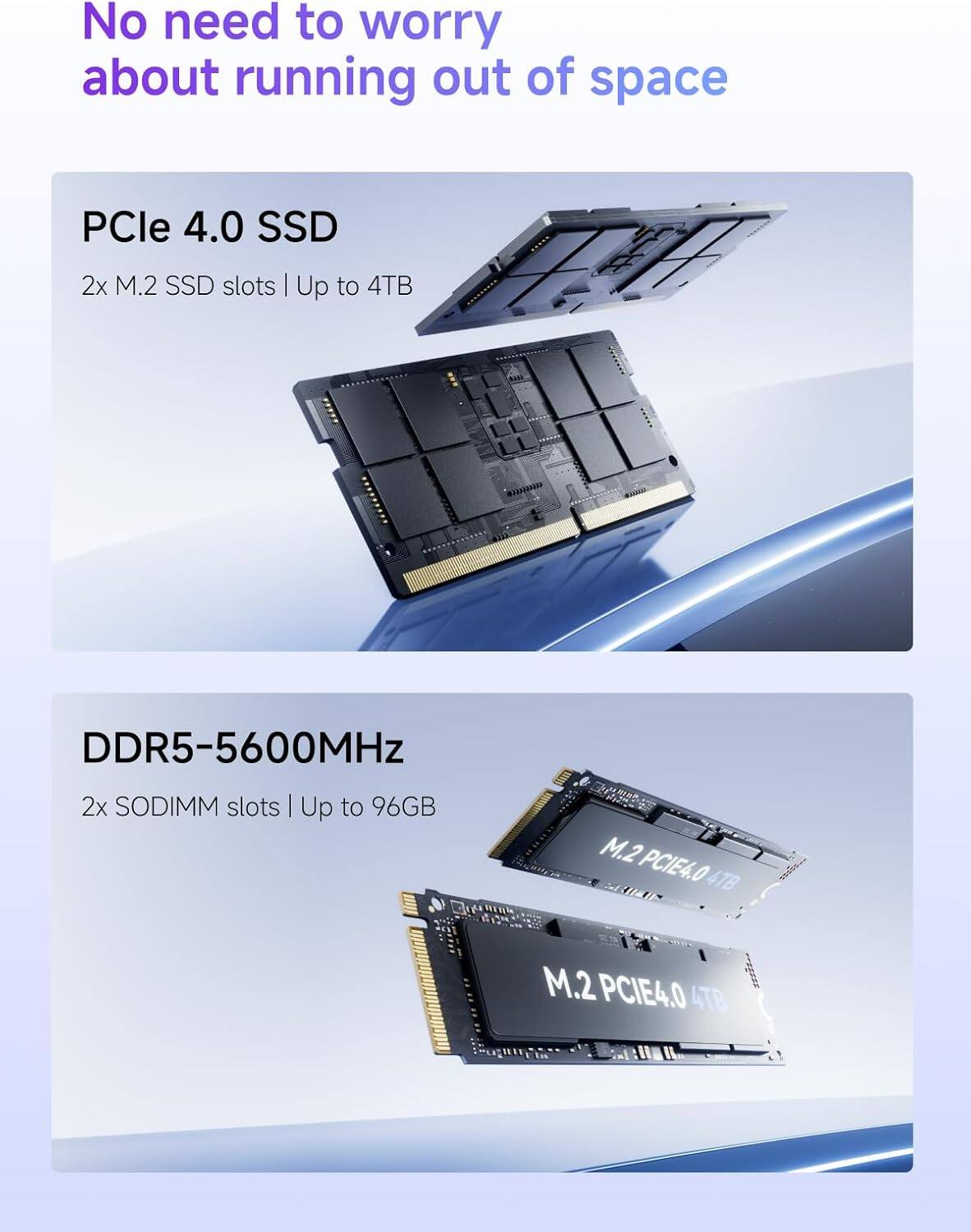

- Next-Gen Memory & Storage: 16 GB DDR5 RAM Storage and 512 GB PCIe 4.0 SSD ensure ultra-fast boot times and data access, with dual M.2 slots supporting up to 4TB
- Advanced Cooling System: Phase-change thermal material and active cooling reduce CPU temps by 25%, maintaining stable 60W performance under 35dB noise levels

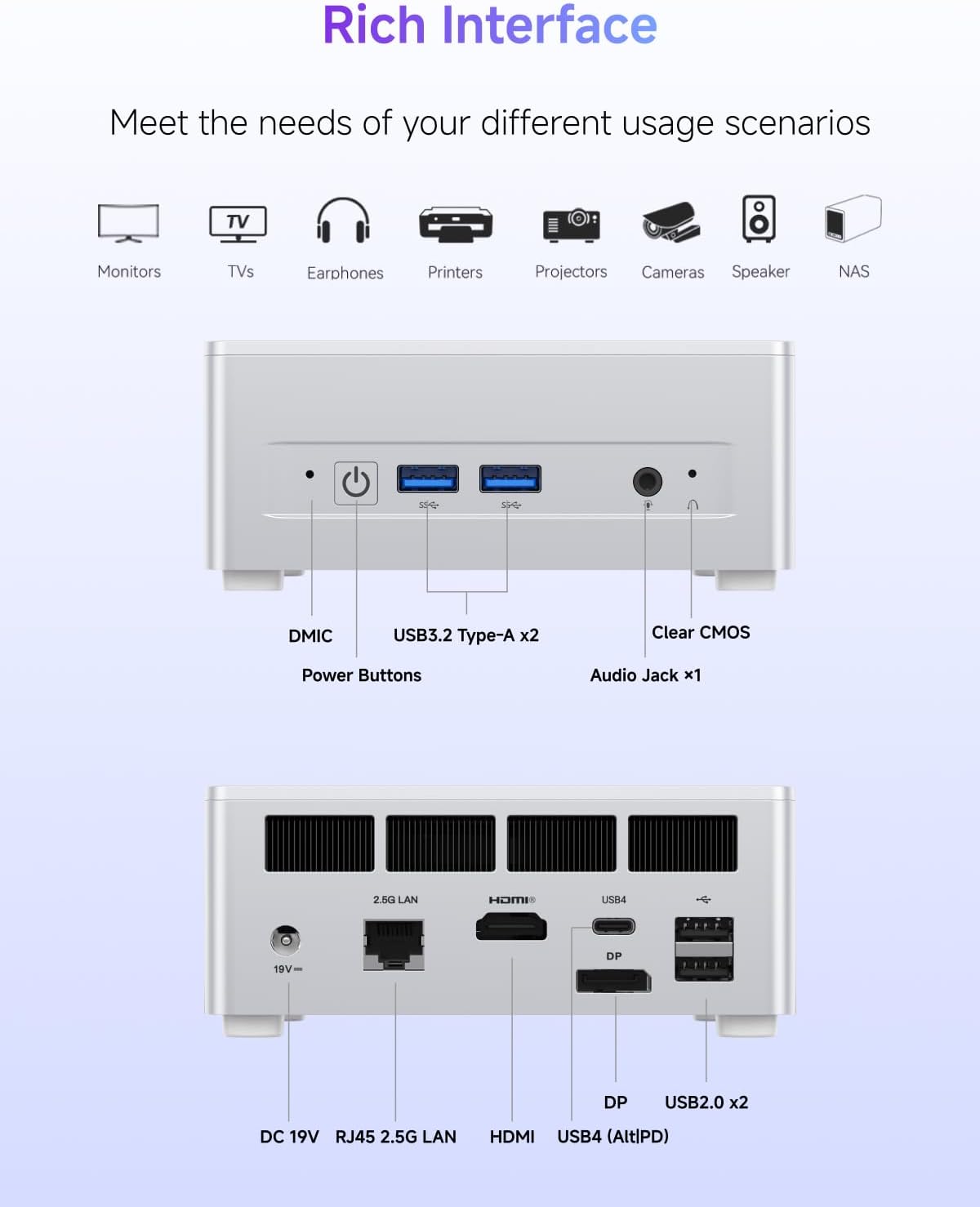

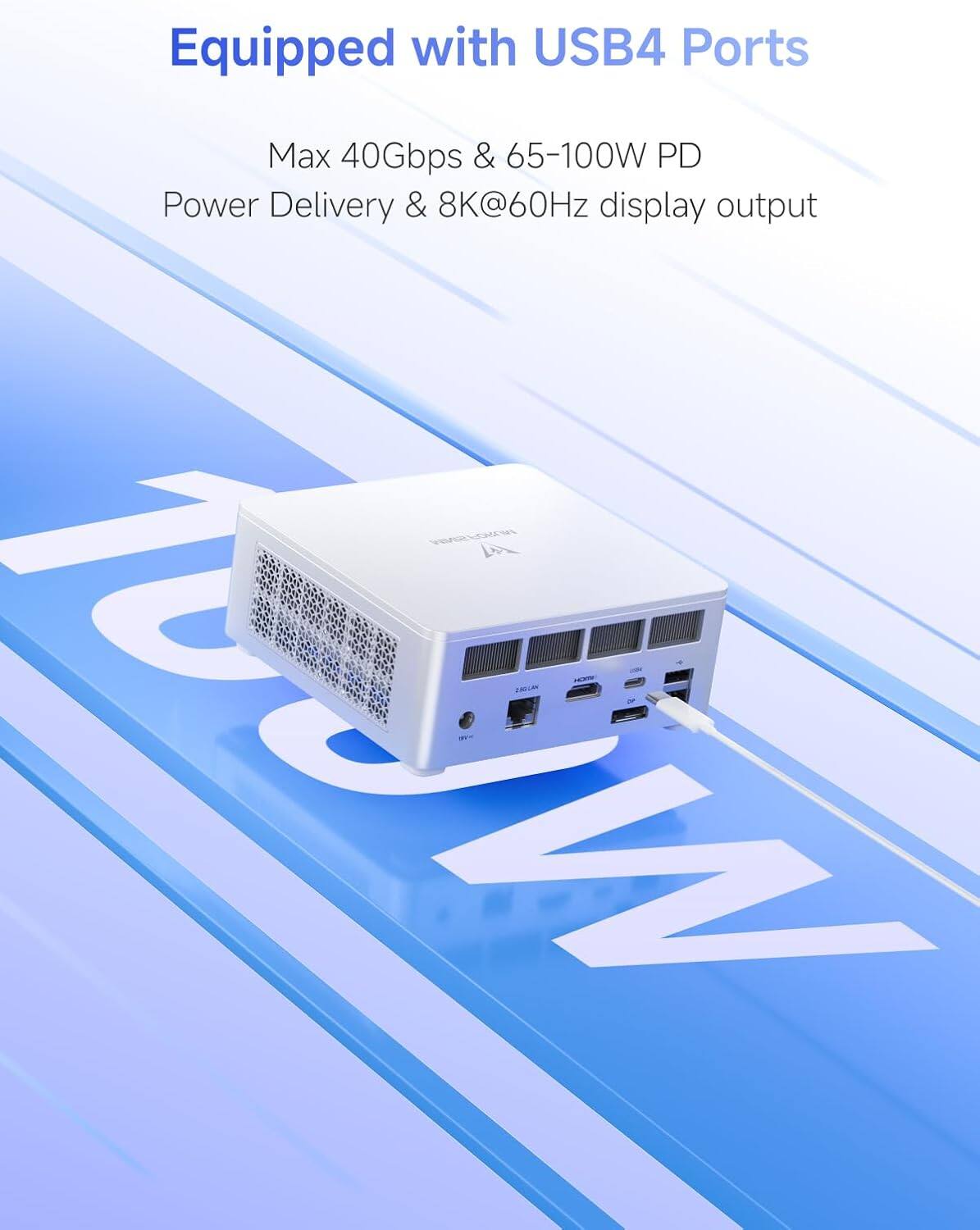

- Robust Connectivity: Includes USB4, HDMI, DP, 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3, and multiple USB ports—ready for high-speed networking and versatile device support
Whats Included
- Minisforum UM870SLIM16
Q: How many HDMI outputs does this desktop have?
A: This desktop has one HDMI output.
Q: What kind of processor does this mini PC use?
A: This mini PC uses an AMD Ryzen 7 8745H processor.
Q: Does this desktop computer have wireless connectivity?
A: Yes, this desktop computer has Wi-Fi connectivity.
Q: Does this mini PC have bluetooth?
A: Yes, this mini PC has Bluetooth 5.3.
Q: How much RAM does this mini desktop PC have?
A: This mini desktop PC has 16 GB of RAM.
Q: Are a keyboard and mouse included with this computer?
A: No, a keyboard and mouse are not included.
Q: What is the total storage capacity of this PC?
A: The total storage capacity is 512 gigabytes.
