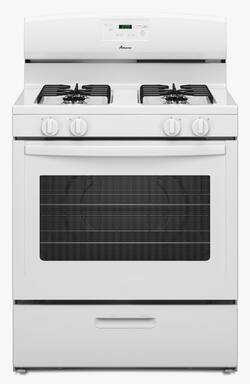

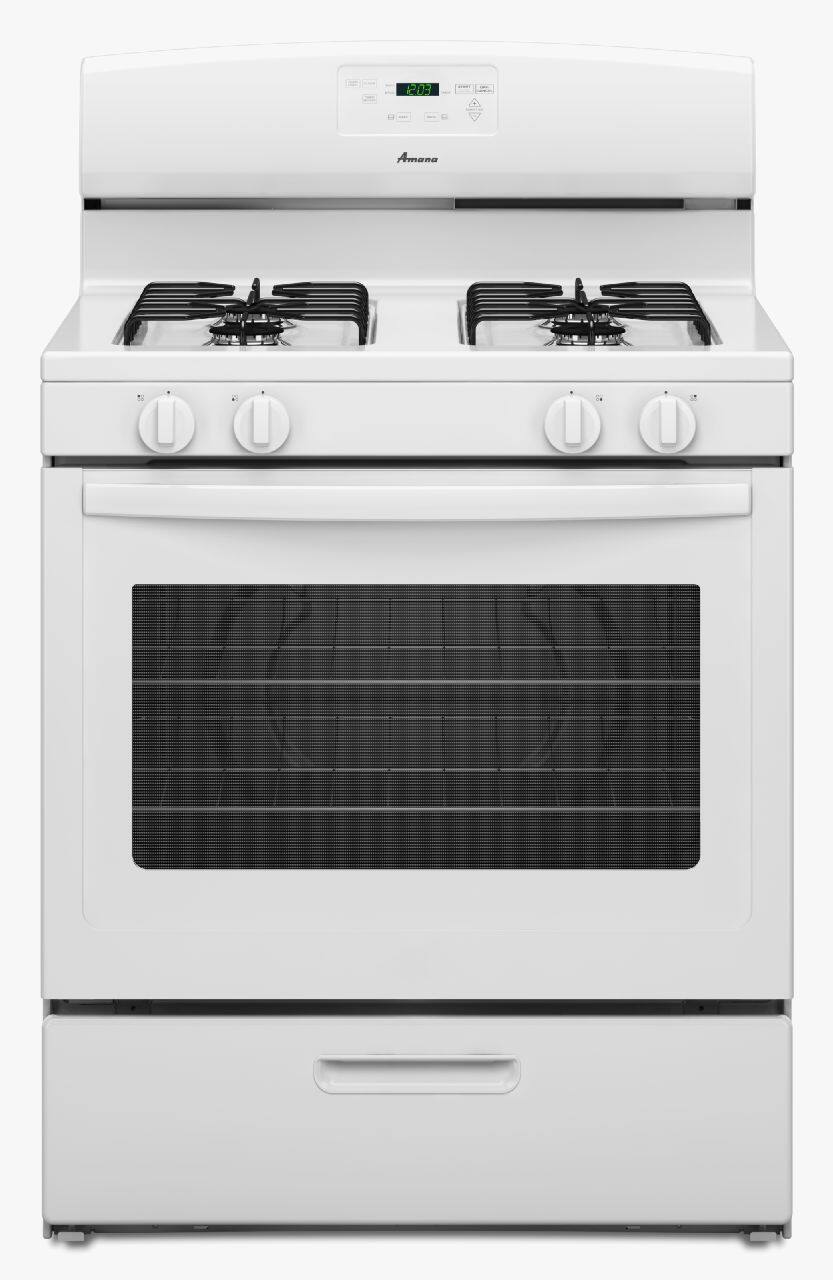

Amana - 5.1 Cu. Ft. Freestanding Gas Range - White
Model: AGR5330BAW
SKU: 4733001
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 46 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27.2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: White
- General
- Product Name: 5.1 Cu. Ft. Freestanding Gas Range
- Brand: Amana
- Model Number: AGR5330BAW
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 46 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27.2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 136 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5.1 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Soft Close Door: false
- Control Type: Knob, Touchpad
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Bake, Broil
- Oven Settings: Delay Bake Option, Time Bake
- Oven Features
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Broiler (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Drawer
- Number of Oven Racks: 2
- Number of Oven Rack Positions: 5
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Not Applicable (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 11500 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 9500 british thermal units
- Burner 3 Rating: 9500 british thermal units
- Burner 4 Rating: 5000 british thermal units
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: false
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049283661
Amana Gas Range: Prepare tasty meals for your friends and family with this versatile gas range, which features a 5.1 cu. ft. oven and an EasyAccess broiler drawer. Plus, cook up delicious sauces and sides using the 4 burners that deliver between 9,500 BTUs and 11,500 BTUs of heat.
- 4 burners: Deliver between 9,500 BTUs and 11,500 BTUs of heat for flexible cooking options.
- Dishwasher-safe porcelain-coated steel grates: Make cleanup a breeze.
- Helps prevent spills from spreading: A Spillsaver upswept cooktop with sealed burners eliminates the space between the burners and the cooktop.
- Accommodates multiple courses at the same time: The 5.1 cu. ft. oven capacity provides ample space for large dinners. A pair of oven racks and 5 rack guides let you place multiple pieces of cookware inside the oven.
- Cook steaks and roast vegetables with ease: The EasyAccess broiler drawer offers added versatility.
- Monitor food while it cooks: An extra-large oven window and incandescent oven light let you see what's cooking.
A: The range can be converted to LP by following the directions in the installation instruction booklet. Spuds for LP operation are included.
A: A gas line is not provided with this model. Yes, the oven has two racks.
Q: What is the size of this stove. I need a 36-inch stove to replace current one.
A: Fel, the dimensions are as follows: width is 29 22/25 inches, depth is 27 1/5 inches, height is 46 1/4 inches.
Q: Where does the oven heat vent out from?
A: The oven vents from the bottom right side of the controls.
Q: Does the oven have two racks?
A: One in the oven and one in the bottom
A: Hello Aquamom, this Range comes with 2 racks. Broiler pans are accessories that will need to be purchased separately. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Amana appliances!
Q: What is height from the ground to the range top? Not the top of the control panel. Thanks
A: Jeff, the appliance is 36" tall from the ground to the range top.
A: You would have to light the top burners with a matches. Your oven won't work need the electronic ignitor. But yes top burners can be used. Hope this was helpful .
