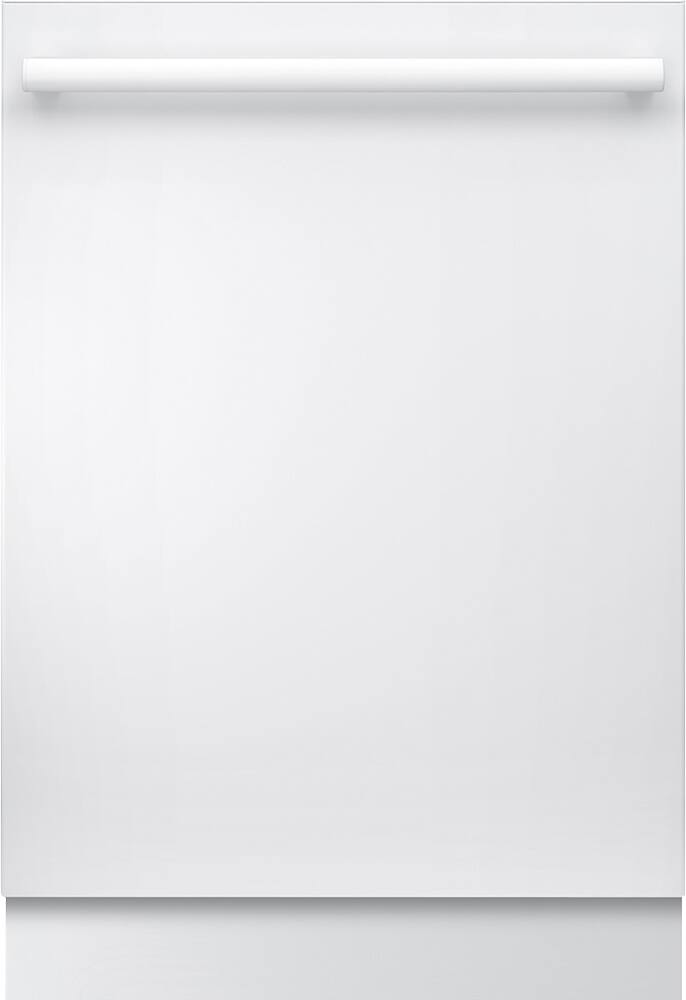

Bosch - 100 Series 24" Tall Tub Built-In Dishwasher with Stainless-Steel Tub - White
Model: SHX5AV52UC
SKU: 6362158
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 33.875 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.5625 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 46 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: White
- General
- Product Name: 100 Series 24" Tall Tub Built-In Dishwasher with Stainless-Steel Tub
- Brand: Bosch
- Model Number: SHX5AV52UC
- Vendor Collection: Bosch Ascenta (Part of a line of different product types, like kitchen appliances.)
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 33.875 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.5625 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 69 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33.875 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23.625 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 46 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: 4
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.2 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 2

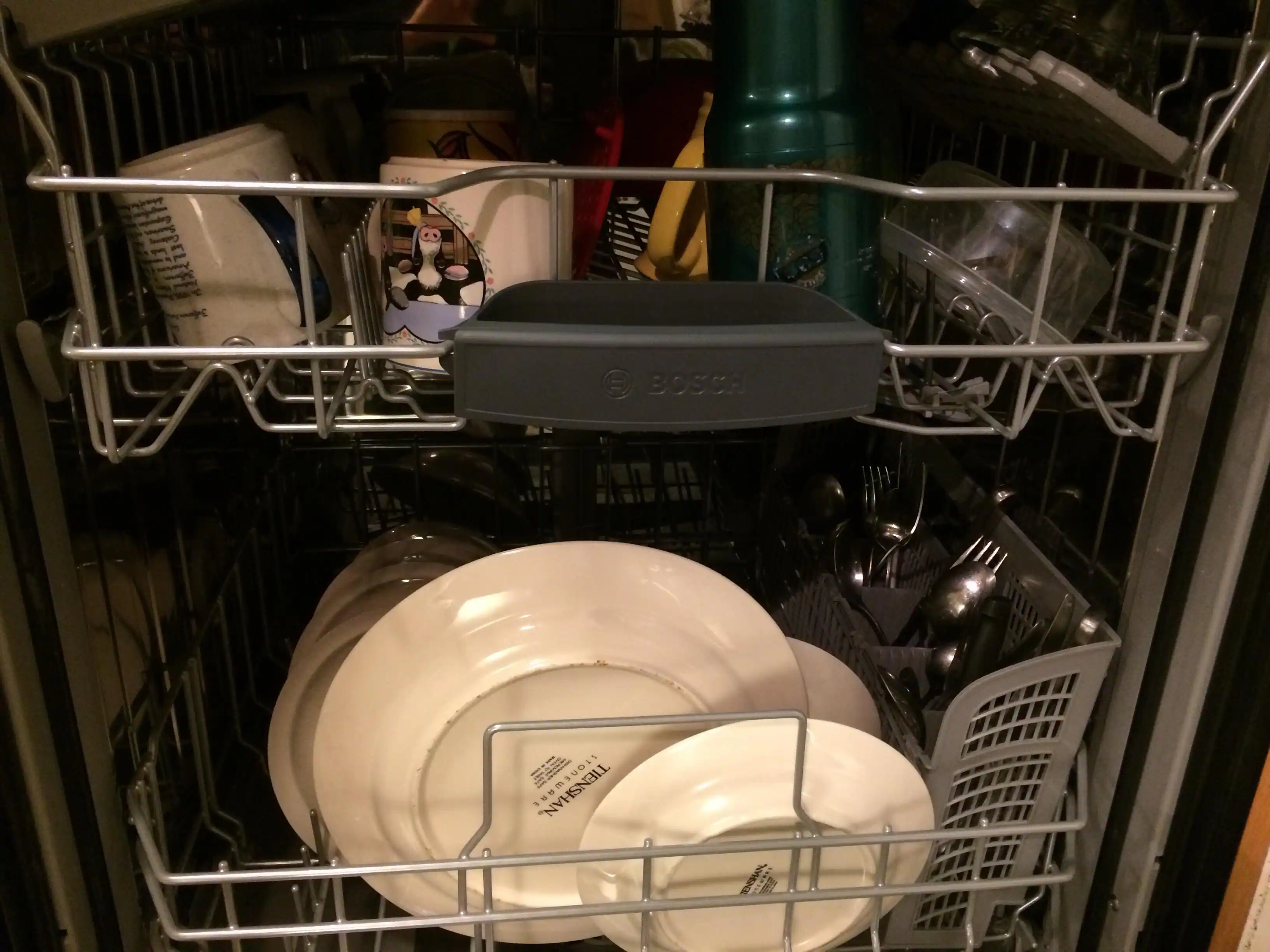

- Upper Rack Features: Cup shelf (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Handle Type: Bar handle
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 33 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1300 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Other
- UPC: 825225917519
Bosch 100 Series built-in dishwasher: Complete the wash while you chat with guests thanks to 46 dBA quiet operation and a large capacity that accommodates up to 14 place settings. Five wash cycles offer versatile cleaning options.
- Simple navigation of settings: Hidden button controls allow you to select cycles and options easily.
- Bar-style handle: For easy opening and closing.
- Enjoy a quiet kitchen: 46 dBA sound reduction system minimizes operational noise, so you can talk easily with your family or guests.
- Maximize flexibility and space for large loads: RackMatic adjustable top rack allows you to choose from 3 height levels and 9 tilt positions to suit your needs.
- Clean up quickly after a large dinner: Accommodates up to 14 place settings, so you can do fewer loads.
- Lay knives and other utensils flat for thorough washing: Accessory rack fits neatly into the upper rack to accommodate long utensils.
- Thorough and efficient cleaning: Concealed heating element offers powerful cleaning performance.
- Easily clean freshly soiled dishes: The Speed60 cycle helps reduce cleaning time, while still including drying.
- Dishes are ready to be put away almost immediately: Heated dry option works quickly.
- Manage pots and pans, delicate glassware and more: 5 cycles enable customized cleaning options. A quick-wash option saves time when you're in a hurry.

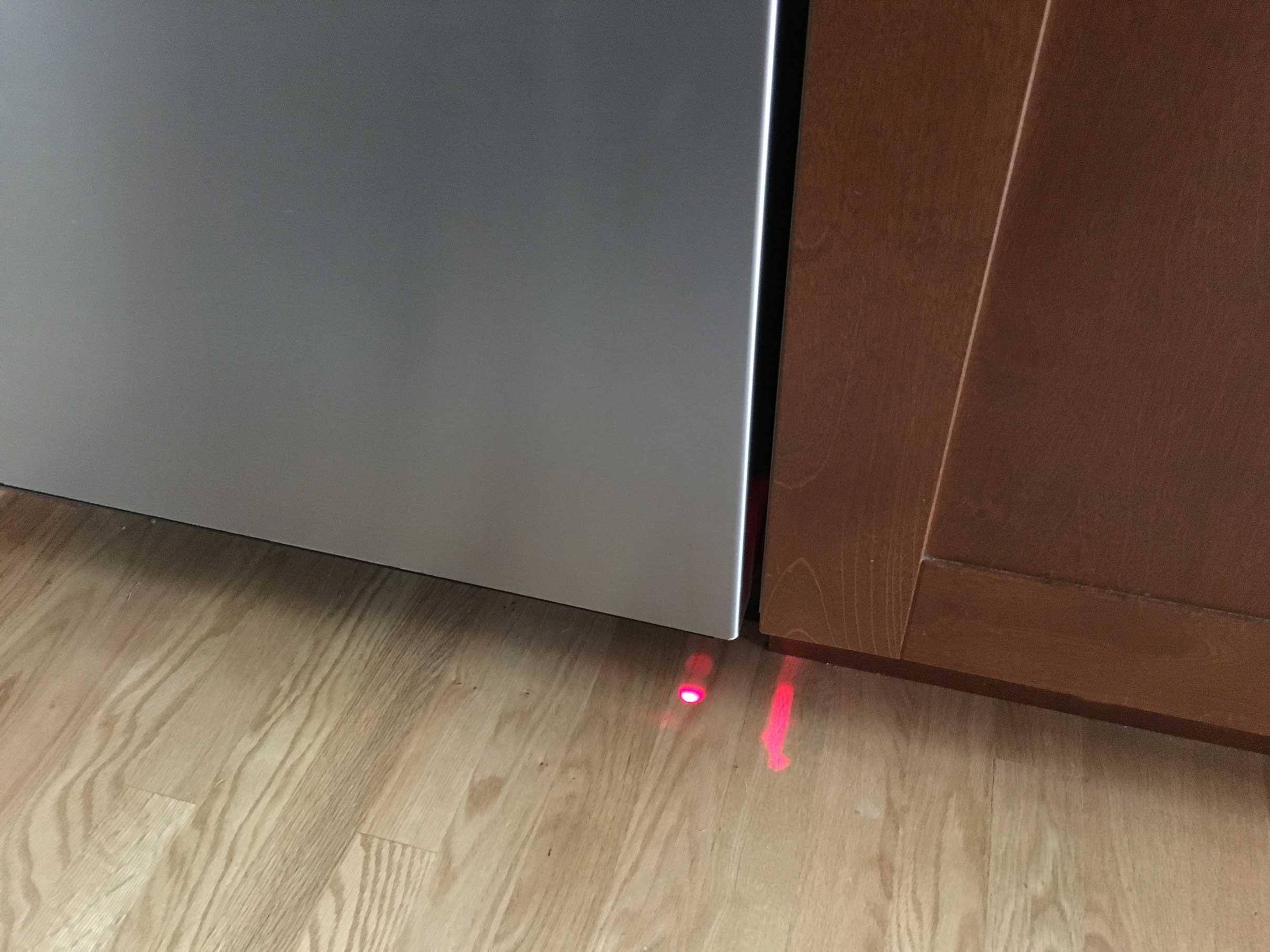

- See at a glance when the dishwasher is running: Info Light shines on the floor for easy visibility.
Whats Included
- 100 Series 24" Tall Tub Built-In Dishwasher with Stainless-Steel Tub
- Drain hose
- Owner's manual
Documents
- Energy_Guide_PDF
A: No, mine is so quiet, we truly have to look at the floor light it projects to know if it's running or not.

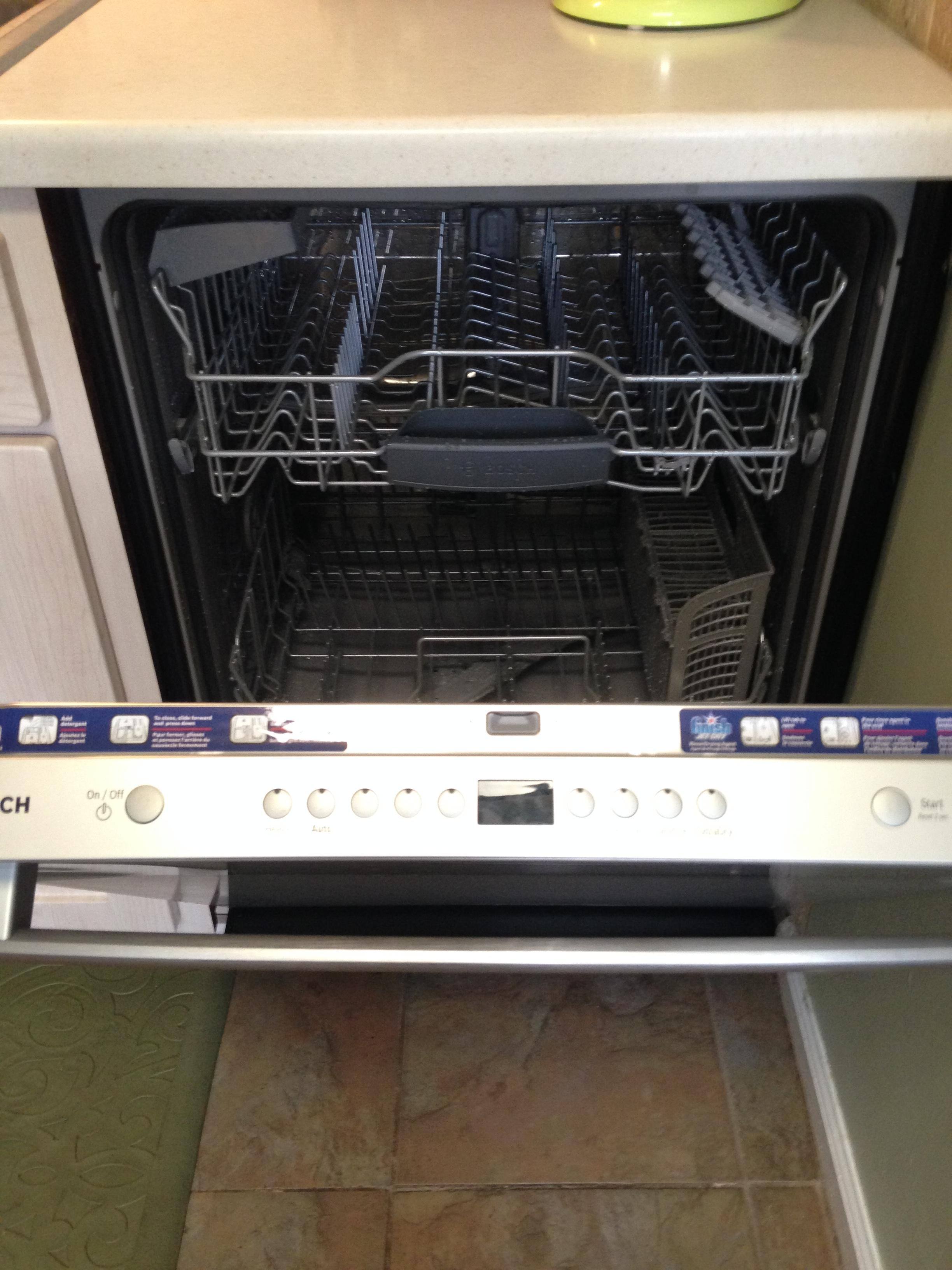

A: Actutally, you can only operate the controls with the door open! They are not accessible when the door is closed, granite counter tops, or no!
Q: Is the filter self cleaning ?.
A: No, the filter is not self cleaning.
A: Yes, it beeps and, yes, you can adjust the beep or turn it off. Check the card that comes with the dishwasher--it tells you how to do this. (Trust me--you won't figure out how to do it on your own!)
Q: Can you lock the controls on this unit when it is not in use. IE child lock
A: Yes, there is a button that prevents anything from happening. Our 4yr old has tried and failed to get it washing!
A: The part you need is Model: 5304504505 SKU: 5146600. This is a generic install kit the will work for most dishwashers. It is the one I used for the same model you are asking about. You can order it online or pick it up in store.
Q: Can I open the door during a cycle. Bosch 100 series. Top control
A: Yes, you can open it at any time during a wash, but you have to hit the start button again before closing it. One cool thing is it shines a red light on your floor while it's working. If it's paused because you opened it, the red light blinks.
A: Hi lanagia. Thank you for your question. Model SHS5AV55UC has a Speed 60 Cycle, a 9 hour Delay Start and a Rinse Cycle. the Rinse Cycle is used when you won't be starting the dishwasher for a day or two. Our dishwashers have many sensors which know if the load needs additional rinsing.
