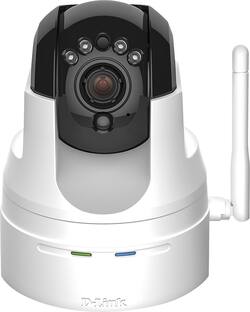

D-Link - High-Definition Pan and Tilt Wi-Fi Video Security Camera - White
- Key Specs
- Field Of View: 92 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 1
- Camera Power Source: Plug-in
- Maximum Operating Temperature: 104 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: 32 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- General
- Product Name: High-Definition Pan and Tilt Wi-Fi Video Security Camera
- Brand: D-Link
- Model Number: DCS-5222L
- Camera
- Field Of View: 92 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 26 feet
- Number Of Cameras Included: 1
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: true (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Power
- Camera Power Source: Plug-in
- Voltage: 12 volts (Amount of power needed to support an electrical current.)
- Compatibility
- Compatibility: Most smartphones
- Operating System Compatibility: Android, Apple iOS, Mac, Windows, Windows Mobile
- Connectivity
- Camera Connectivity: Wireless (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Records Audio: true
- Performance
- Maximum Operating Temperature: 104 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: 32 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Features
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- Auto-On Detection: Motion
- Dimension
- Product Height: 4.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.2 pounds (The out of box weight of the item.)
- Display
- Color Display: true
- Warranty
- Manufacturer's Warranty - Parts: 1 year limited
- Manufacturer's Warranty - Labor: 1 year limited
- Other
- UPC: 790069370236
Keep an eye on your home or office with this D-Link Cloud Camera DCS-5222L wireless surveillance camera that features a 1/4" progressive CMOS image sensor with 720p resolution for sharp, clear video and IR LEDs for effective night vision up to 26.2'.
- 1/4" progressive CMOS image sensor: Captures crisp footage with up to 720p resolution at 30 fps for clear images.
- IR LEDs: Along with a built-in ICR (infrared-cut removable) filter module provide night vision up to 26.2'.
- Day/night mode: Automatically switches the picture to black-and-white in low-light conditions.
- Built-in PIR sensor: Delivers enhanced motion detection.
- Built-in microphone and speaker: Enable simple 2-way communication.
- Digital pan, tilt and zoom: Let you view an area from multiple vantage points and get close to distant subjects.
- H.264 compression: Allows you to store large video files with minimized network bandwidth.
- Selectable recording resolutions: Include 1280 x 720 and 640 x 352 to suit your needs.
- microSD slot: Offers local storage (card not included).
- Wireless-N and Wi-Fi Protected Setup (WPS): Along with a 10/100 Ethernet LAN port to ensure a secure network connection. Zero Configuration enables automatic configuration with a compatible D-Link Cloud router (not included).
- mydlink mobile apps and Web portal: Allow you to view your surveillance footage on your Apple® iPhone® or iPad®, or a compatible cell phone with an Android or Windows operating system or computer (additional fees may apply).
- E-mail and push alerts: Notify you when motion is detected to help you stay informed.
Whats Included
- Cat-5 Ethernet cable, power adapter
- D-Link Pan and Tilt Wi-Fi Video Security Camera
- Installation CD
- Owner's manual
- Remote, camera base, mounting kit
Q: can this camera be mounted upside down and still view normally ?
A: Yes. After having mounted the camera to the ceiling , you can invert and flip the image through the web-based camera configuration and the image will be right side up. I have done that with one of my two cameras.
A: We want to thank you for your questions as we do appreciate them. Please note the DCS-5222L is an outdoor HD Wireless Network Camera and you may be able to changes the exposure mode to set the camera for Indoor, Outdoor, or Night environments, or to Moving to capture moving objects as well. You may find out more information by visiting our website at www.support.dlink.com. Thank you for choosing D-Link.
A: We appreciate the interest in the product. Please note that just as long as you have a working internet connection, you are able to view the camera's live feed from your computer or laptop.
Q: What is the wireless range?
A: We thank you for your interest in the product. Please note that the range depends on the wireless coverage of your router. To get an estimated range, we advise that you use your mobile device. Usually the camera will cover the same wireless range as a cellphone or tablet.
Q: Do you need to have a d-link router to connect wirelessly?
A: No, this does not require a specific manufacturer's router. It will work with other brands.
Q: what method does the camera use for recording?
A: You either use up to a 32G Micro-SD card or buy the DVR module and a hard drive. The 32G only gives around 4-hours of recording time.
Q: if there is no motion but sound only will it record the sound..
A: We thank you for your interest in the product. Please note that the camera will be able to snapshot or record if sound is detected.
Q: Which version are you selling: Revision A or Revision B ?
A: Get ver B Look at the bottom of the box look for HW Ver B2
