Key Specs
- Maximum Resolution: 1920 x 1200 (The highest display resolution that the graphics card(s) can support.)
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 7.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce 6200 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
General

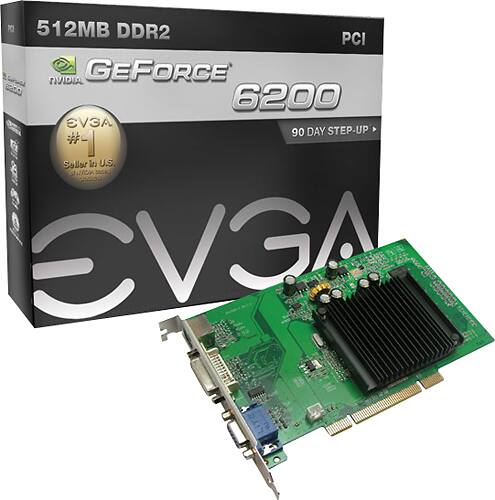

- Product Name: GeForce 6200 512MB DDR2 PCI Graphics Card
- Brand: EVGA
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce 6200 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Model Number: 512-P1-N402-LR
Display
- Maximum Resolution: 1920 x 1200 (The highest display resolution that the graphics card(s) can support.)
Compatibility
- Operating System Compatibility: Windows
Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 7.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.15 pounds (The out of box weight of the item.)
Other
- UPC: 843368009311

This graphics card features a PCI interface for compatibility with a range of systems and 512MB memory for visual realism. The VGA, S-video and DVI-I outputs allow for an easy connection.

Powered by the GeForce 6200 graphics processing unit (GPU): With Unified Driver Architecture (UDA) for the most demanding games.
512MB DDR2 on-board memory: With 4.3 GB/sec. of memory bandwidth provides the memory needed for visual realism.
PCI interface: Along with a core clock and shader clock speed of 300MHz provides compatibility with a range of systems.
OpenGL 2.1 support: Enables high-performance graphics.
Microsoft DirectX 9.0 support: For rich, immersive game environments
Passive heatsink: Helps keep the graphics card cool for efficient operation.
