KitchenAid - 36" Built-In Gas Cooktop - Black
Model: KGCC566RBL
SKU: 7291628
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 2 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- Color Finish: Black
- General
- Product Name: 36" Built-In Gas Cooktop
- Brand: KitchenAid
- Model Number: KGCC566RBL
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 2 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 45 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 2 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 32 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: false
- Fingerprint Resistant: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic
- Number of Cooking Zones: 5
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): None (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Metal
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 9000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 17000 british thermal units
- Burner 3 Rating: 6000 british thermal units
- Burner 4 Rating: 6000 british thermal units
- Burner 5 Rating: 12500 british thermal units
- Total Maximum BTU Rating: 50500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Propane Kit Model Compatibility: 3192741
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Other
- UPC: 050946995373

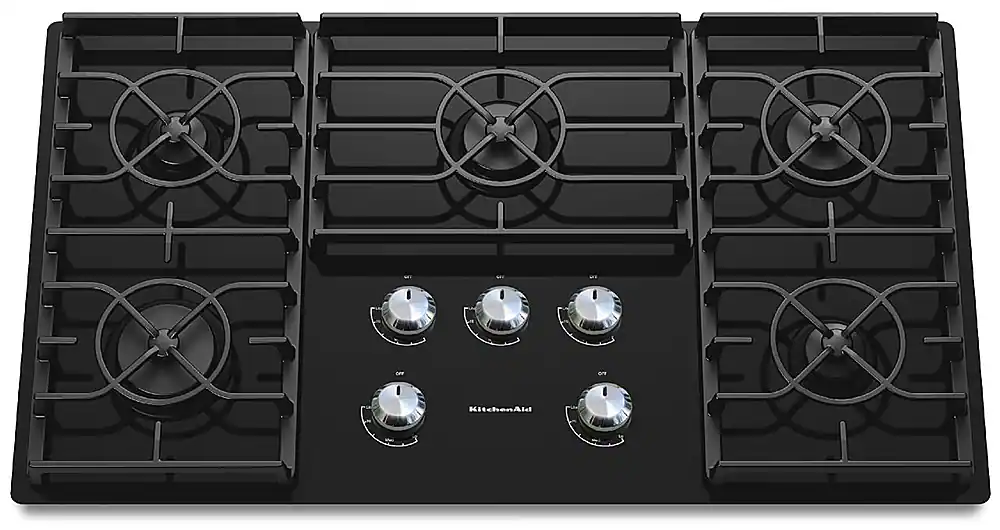

This 36-inch cooktop has a ceramic-glass surface that looks stylish in many kitchens. The easy-to-clean surface features full-width cast-iron grates that allow you to slide cookware across the surface without lifting. In addition, the powerful burner options range from 6,000 to 17,000 BTU allowing you to get exceptional results for simmering a sauce or searing a steak.
- Gas-on-Glass Surface: A gas cooktop where the burners are mounted directly into a ceramic-glass surface
- Full-Width Cast-Iron Grates: Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- 17K BTU Professional Burner: Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- Two 6K BTU Simmer Burners: Allow more accurate simmer control at the lowest setting, and are ideal for cooking smaller quantities of food, using smaller pots and pans.
- Electronic Ignition: Automatically lights burners so no standing pilot light is needed.
- LP Conversion Kit: Allows you to convert the cooktop so it can be used with LP gas.
A: Hi Des, This units grates do have rubber feet on the bottom to help from moving. We hope this helps.
Q: Does it come with the electrical power cord included? Do I need to buy a smart choice gas line?
A: Hi HBCOOKTOP, Yes this model does come with a power cord. I would speak with your gas company in regards to the gas line. We hope this helps.
Q: Are the burner knobs plastic or metal?
A: The knobs on this KitchenAid® Cooktop are plastic.
Q: Are the grates dishwasher safe?
A: Hi Clara. The grates on this KitchenAid® Cooktop are not Dishwasher safe.
Q: Do you carry it in white? what do you charge to install? It will replace an existing cooktop.
A: Hey muneca, we apologize but this unit does not come in white. For installation charges and processes we recommend you consult your local dealer.
Q: Can this be seen at a Best Buy brick and mortar store?
A: Kip20, please reach out to Best Buy Customer Care at 1(888)237-8289 for further assistance. We hope this helps.
Q: cutout specification for cooktop model no KGCC566rbl
A: Hello, please look at the Use and Care Guide below for more information. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances! https://bit.ly/2Sjm7nw
