Klipsch - 6-1/2" Architectural Speaker (Each) - White
- Key Specs
- Speaker Type: In-Wall
- RMS Power: 140 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Product Name: 6-1/2" Architectural Speaker (Each)
- Brand: Klipsch
- Model Number: R-1650-W
- Color: White
- Audio
- Speaker Type: In-Wall
- RMS Power: 140 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 140 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 53 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 88 decibels
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Woofers: 1
- Woofer Size: 6.5 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 14.30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.38 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.5 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: Polymer
- Midrange Material: Other
- Woofer Material: Polymer
- Included
- Speaker Wire Included: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 5 years
- Manufacturer's Warranty - Labor: 5 years
- Other
- UPC: 743878018547

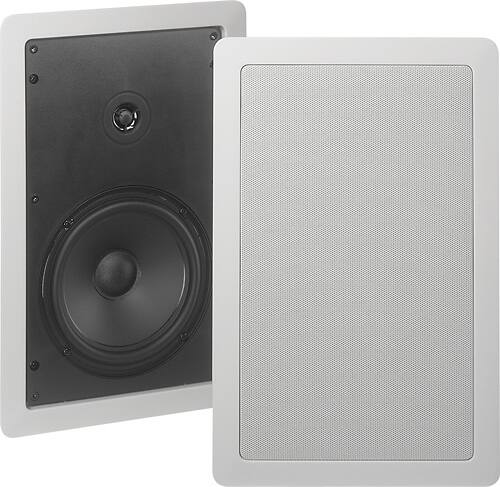

This Klipsch architectural speaker features a 6-1/2" polymer cone woofer and a large motor structure for high sensitivity and strong bass output. A 1" polymer dome tweeter distributes smooth, clear highs over a wide area.
- Handles up to 140 watts maximum input power: For robust and controlled audio that is crisp and clear.
- One 6-1/2" polymer cone woofer: Along with 1" polymer dome tweeter for a complete range of sounds.
- Large motor structure: Provides high sensitivity and strong bass output.
- Speaker mounting system: Makes installation simple. The paintable aluminum grille provides additional rust protection in moisture-prone areas, such as bathrooms, kitchens and saunas.
- 13" x 8" cutout dimensions: For proper installation.
- 53Hz - 20kHz frequency response: For faithful sound reproduction.
- 88dB sensitivity: For powerful sound.
- 8 ohms impedance: Conducts power through the speaker.
Whats Included
- Klipsch 6-1/2" Architectural Speaker (1 speaker)
- Owner's manual
Q: What kind of wiring is needed
A: I had the Geek Squad do the installation so I can't speak with a great deal of certainty, but I'm sure you can use standard speaker wire. However, since they are in-wall speakers, the wire would have to be run through the wall structure and might have to come near electrical wiring. This could cause feedback in the line. With this said, I imagine the Geek Squad used shielded speaker wire.
Q: Can the cover be painted to match the wall color?
A: Yes, the screens are paintable.
Q: Can you install in- wall speakers ?
A: Yes
A: The R-1650-W speaker has a mounting depth of 4 inches. It should work fine in the application you are attempting.
A: No, they will not. These speakers are recommended for matching with the Reference Line. You will want to look at the R-5650-W II for best tonal match with the Reference Premier series.
A: The total dimensions of the frame of the speaker is as follows: 14.3” (36.3cm) H x 9.3” (23.6cm) W
Q: how do you connect it to your phone i have 10 of them but i don’t know how to connect to play music.
A: The R-1650-W in-wall speakers are passive. They will need to be connected via bare wire to an AV receiver or amplifier to power them. From there, you should be able to connect an audio source via Bluetooth or compatible cables.
Q: What does "architectural" mean regarding speaker type? And are these 2 or 3 way speakers?
A: It means they need to be built-in to the wall (made a permanent part of the architecture of the building.)
