- Key Specs
- Speaker Type: Center channel
- RMS Power: 150 watts (The maximum amount of continuous power the device is able to handle.)
- General

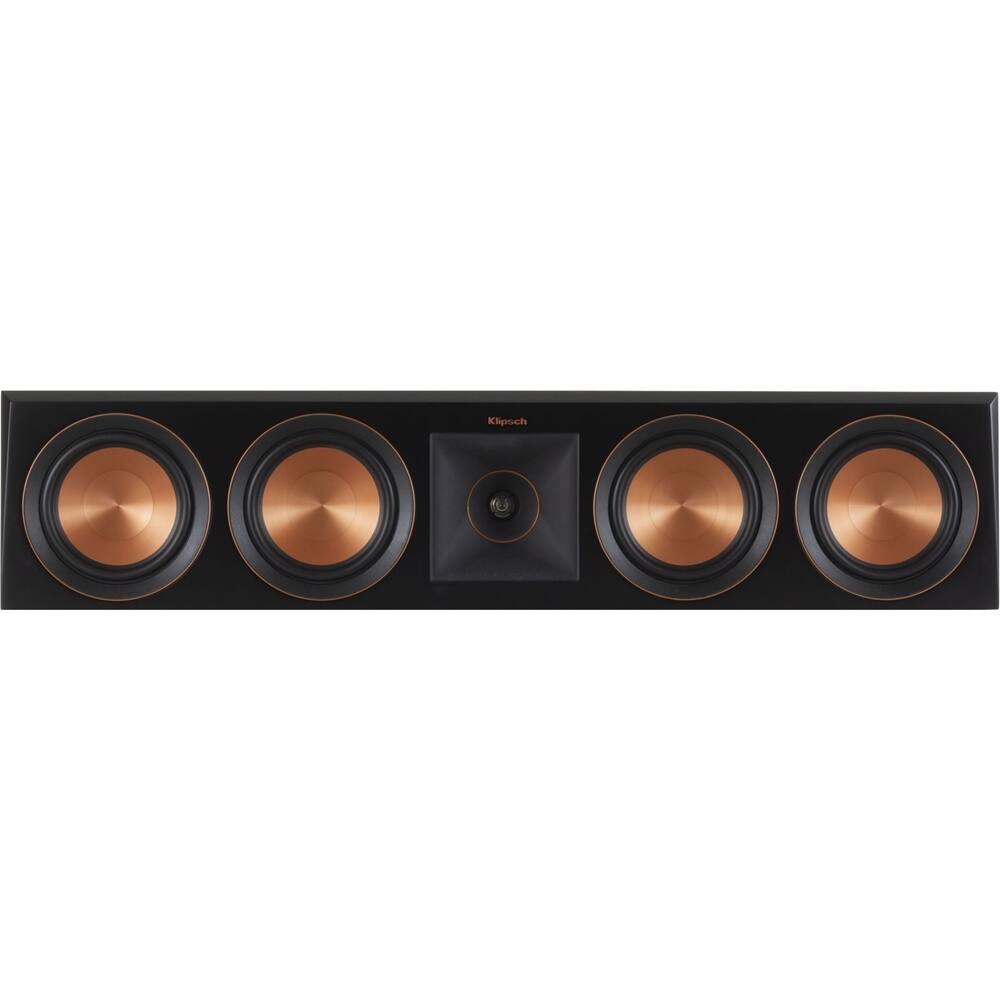

- Product Name: Reference Premiere Quad 5-1/4" 600-Watt Passive 3-Way Center-Channel Speaker
- Brand: Klipsch
- Model Number: 1065810 RP504C BLACK
- Color: Ebony
- Audio
- Speaker Type: Center channel
- Enclosure Type: Bass reflex
- RMS Power: 150 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 600 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 58 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Drivers: 5
- Number of Woofers: 4
- Woofer Size: 5.25 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- Indoor Or Outdoor Use: Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 6.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 34 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: Titanium
- Woofer Material: Cerametallic
- Included
- Cable(s) Included: None
- Other
- UPC: 743878035773
Experience extreme audio performance with this Klipsch Reference Premier speaker. Featuring four 5.25-inch woofers with cerametallic cones and rear-firing Tractrix ports, this speaker produces clear, resonant bass at frequencies as low as 58Hz. This Klipsch Reference Premier speaker handles a peak of 600W with a sensitivity of 97dB for powerful audio that brings down the house.
- Handles up to 600W peak power (150W continuous): For robust and controlled audio that is crisp and clear.
- Four 5-1/4" cerametallic woofers: Along with 1" titanium tweeter for a complete range of sounds.
- 3-way speaker system: Sounds like 1 source rather than several separate sources.
- Vinyl finish: Offers a stylish look to complement your existing décor.
- Removable grille: Remains acoustically transparent while protecting the speaker's components.
- Bass reflex enclosure: With a rear-firing port promotes optimal performance.
- 58Hz - 25kHz frequency response: Ensures a wide range of accurately reproduced sound.
- 8 ohms nominal impedance: Ensures efficient conduction of power through the speaker.
Whats Included
- Klipsch Reference Premiere Quad 5-1/4" 600-Watt Passive 3-Way Center-Channel Speaker
A: It is rear ported. In addition, it is 34 pounds, and 14.4" deep and only 6.8" high. The majority of the weight is going to be in the front, away from the wall. Physics will say that it would be very difficult to securely attach that to a wall, even if it wasn't rear ported. I would not attempt to put it directly up against a wall. It needs to rest on a shelf or something similar, with some rear clearance between the speaker and the wall. This speaker is very large, and requires significant space. If you want a Klipsch center that can be wall mounted, I would look at the R-34-C. It is front ported, isn't very deep and has rear keyhole mounts.
A: I have the same. Get it!
Q: Did anyone get this on a sale? How much?
A: Just got it half price.
A: It is available in ebony right now. July 2021.
Q: Do you all plan to replenish stock of the Ebony RP504C?
A: In stock right now. July 2021.
Q: whats best Klipsch center channel upgrade to pair with Klipsch synergy3 mains ?
A: The Klipsch Synergy line is comparable to the current Reference line speakers. Klipsch recommends the R-34C to pair with the Synergy systems.
A: The dimensions of this unit are 6.8" H x 31.1" W x 14.4" D.
A: I believe you will need a receiver to power the speaker. The TV does not have enough power, nor the connections, to do it on its own. This was meant to be connected to an AV receiver.
