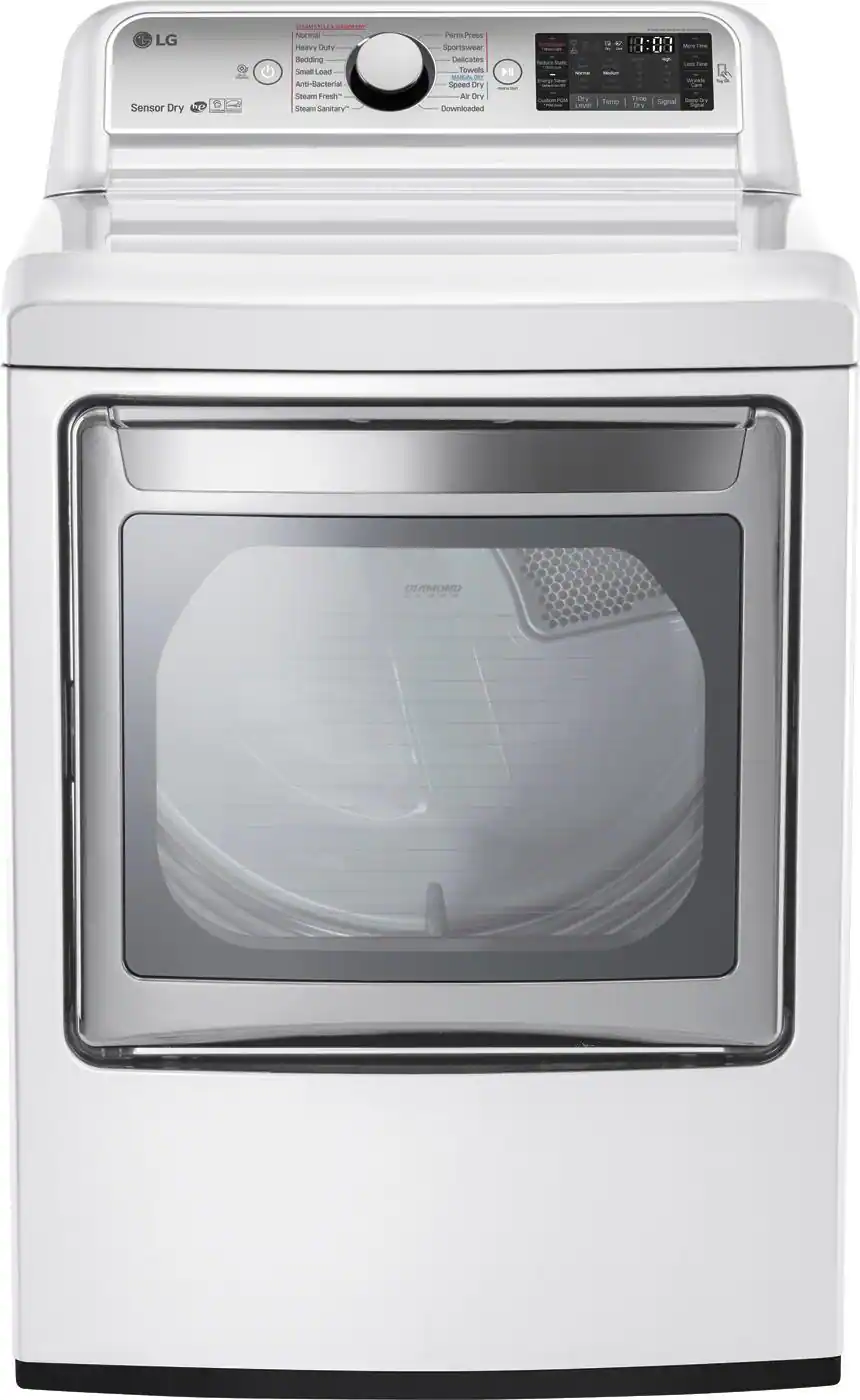

LG - 7.3 Cu. Ft. 14-Cycle Gas Dryer with Steam
Model: DLGX7601WE
SKU: 5195703
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 45 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 50 1/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 7.3 cubic feet
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Gas
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Matching Washer Model Number: WT7600HWA
- Stackable: false (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Propane Conversion Kit Model Compatibility: 383EEL3002D
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: White
- General
- Product Name: 7.3 Cu. Ft. 14-Cycle Gas Dryer with Steam
- Brand: LG
- Commercial Merchandise: false
- Model Number: DLGX7601WE
- Color Finish: White
- Dimensions
- Product Height: 45 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 50 1/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 132.5 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7.3 cubic feet
- Features
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Water Source: Fill hose
- Dryer Heating Source: Gas
- Propane (LP) Convertible: true
- Automatic Temperature Control: false (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Interior Light(s): true
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Rear
- 4-Way Venting: false (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Type: Dial, Touchpad
- Control Location: Rear panel
- Display Type: LED
- Drum Material: Stainless steel
- Drying Rack: true
- Window: true
- Cycle Specifications
- Number Of Drying Cycles: 14
- Drying Cycles: Cotton/Normal, Perm Press/Casual, Heavy Duty, Bulky/Bedding Delicates, Towels, Small Load, Anti-bacterial, Sports Wear, SteamFresh™, SteamSanitary™, Speed Dry, Air Dry, Download (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Wrinkle care; delicate; SteamFresh; speed dry; heavy duty; air dry; towels; time dry; sportswear; custom program; ReduceStatic option; SteamSanitary
- Number of Temperature Settings: 5
- Temperature Settings: High, Medium High, Medium, Low, Ultra Low
- Compatibility
- Pedestal Available: false
- Matching Washer Available: true
- Matching Washer Type: Top load
- Matching Washer Model Number: WT7600HWA
- Stackable: false (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Propane Conversion Kit Model Compatibility: 383EEL3002D
- Included
- Fill Hoses Included: false
- Propane Conversion Kit Included: false
- Filter Info
- Lint Filter Full Indicator: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- NSF Listed: false (Meets the National Sanitation Foundation's standards for public health protection.)
- Connectivity
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Other
- UPC: 048231016704
Open and close the EasyLoad door of this LG dryer vertically or horizontally for convenience. With 14 drying programs, this appliance lets you handle a variety of laundry jobs by pressing a few buttons, and a steam function lets you fluff clothing and forgo ironing. SmartThinQ technology on this LG dryer helps you quickly troubleshoot issues.
- Dial-A-Cycle electronic controls with LED display: Allow easy program setting.
- Activate options right from your Smartphone: Offers remote control over your dryer.
- Safely dry all your garments and linens with 1 of 14 cycles: Includes wrinkle care, delicate, SteamFresh, speed dry and other drying programs.
- Avoid over-drying by provide the proper heat for different fabric types: 5 temperature settings.
- Save time between loads with an end-of-cycle signal: Know exactly when it's time to change your load with an audible signal.
- Indicators for time remaining, FlowSense duct clogging and drying progress: Keep you apprised of the dryer's status at a glance.
- Sanitize hard to wash items: With the SteamSanitary cycle, you can use steam to sanitize hard to wash or unwashable items, like throw pillows or children's stuffed toys.
- Quickly refresh your items: Use the SteamFresh cycle when you need to quickly reduce wrinkles. Also, helps cut down on ironing.
- TurboSteam™ technology: Give favorite clothes new life in just 10 minutes. (Based on test conducted at LG’s test lab facility on December 10, 2014).
- Do laundry while others are sleeping, conversing or watching TV: LoDecibel quiet operation reduces operating noise.
- Front-loading design: For easy access.
- EasyLoad™ door: Opens either vertically or horizontally for convenient loading and unloading.
- Keep children safe: Child security prevents unintentional or unauthorized use of the dryer.
- NeveRust drum: Features stainless steel material for durability.
Whats Included
- Drying rack
- LG DLGX7601WE
Product Manuals
Q: Does the dryer have a light inside?
A: Yes led!
Q: Can I wash clothes the same time as I dry clothes with the "steam" option?
A: Yes, as long as you are using the supplied water splitter that allows you to connect the washer and drier to the cold water connection
Q: DOes this get all types of loads completely dry in about 40 minutes or less?
A: No, certainly not. It is more focussed on saving your gas and electricity. My 1 hour 10 minutes is normal time to make them normal dry in medium temp setting.
A: small loads are perfect. It's just myself and husband. Clothes actually felt cleaner than the old Maytag top loader we had/ Cycles are much longer but there is a quick wash setting, only 30 min. At first I thought there were too many cycle options, but after I became familiar with the settings I think all is perfect. I love doing laundry now.
A: The dryer connects with a furnished kit to the washer's water line. If you are in need of any assistance, have additional questions, or would just like to see our helpful tips, check us out on Twitter @LGUSSupport Facebook https://www.facebook.com/LGUSA/ or you can give us a call at 800-243-0000. ^CP
A: The dryer connects with a furnished kit to the washer water line.
Q: Does the water line adaptor to split the water from the washer to the drier come with the dryer?
A: Yes it does
A: The matching dryer is the DLE4970W (electric) and DLG4971W (Gas). ^AC
