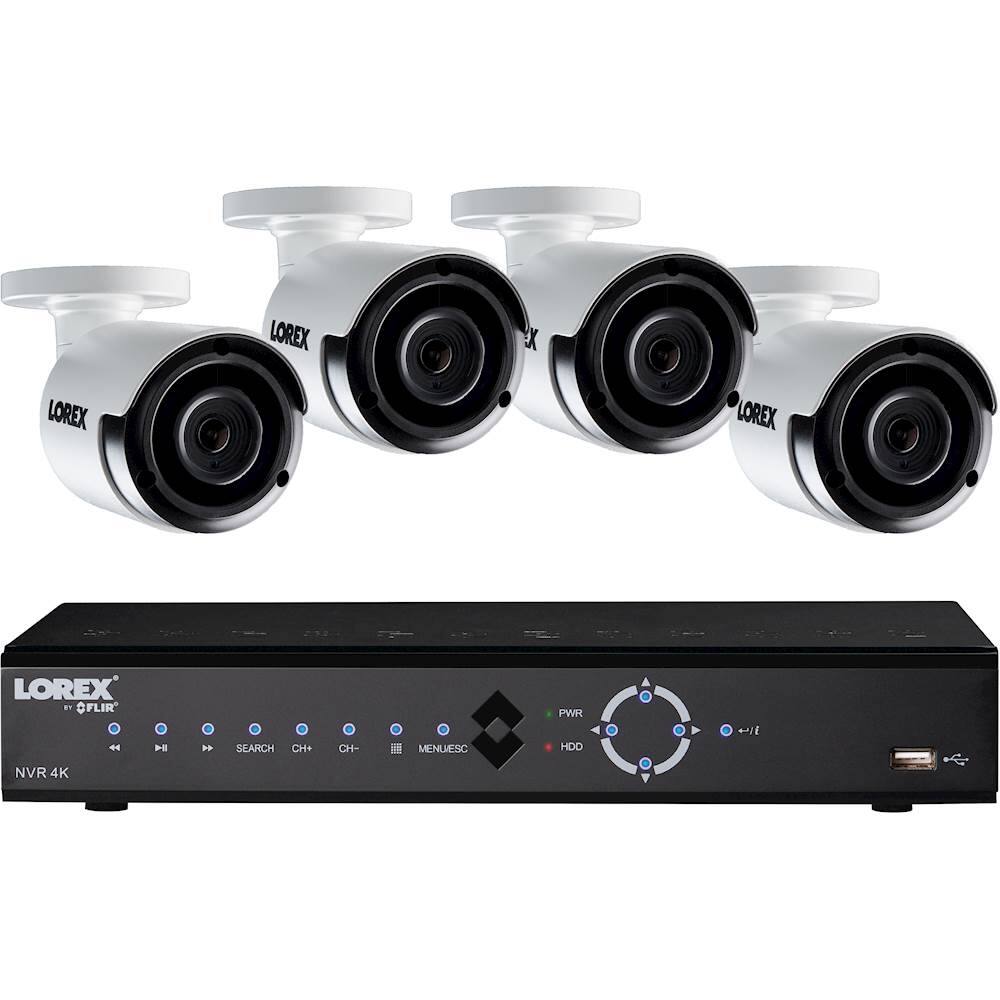

Lorex - 8-Channel, 4-Camera Indoor/Outdoor Wired 4MP 2TB NVR Surveillance System
- Key Specs
- Camera Resolution: 2688 x 1520 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 101 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Number Of Channels: 8
- Minimum Operating Temperature: 60 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 8-Channel, 4-Camera Indoor/Outdoor Wired 4MP 2TB NVR Surveillance System
- Brand: Lorex
- Model Number: LNK71082TC4B
- Camera
- Camera Resolution: 2688 x 1520 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 101 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 130 feet
- Number Of Cameras Included: 4
- Number Of Cameras Supported: 8
- Frame Rate: 30 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0.3 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Lorex LKB/LKE series PoE HD IP cameras
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Number Of Channels: 8
- Video Compression Type: H.265 / H.264
- Simultaneous Operation: Pentaplex (Refers to the number of operations (live view, record, playback, back up, remote control, etc.) the DVR can perform simultaneously. For example, a simplex DVR can perform only one task at a time, such as recording or playback of footage, while a pentaplex DVR can multitask up to 5 functions.)
- DVR Operation Mode: Pentaplex
- Storage
- DVR Storage Capacity: 2000 gigabytes
- External Storage Capacity Upgradeable Upto: 12000 gigabytes
- Performance
- Minimum Operating Temperature: 60 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Mobile Notifications: true
- Auto-On Detection: Motion
- Dimension
- Camera Height: 2.9 inches
- Camera Width: 2.9 inches
- Camera Depth: 6 inches
- Camera Weight: 0.9 pounds
- DVR Height: 10.5 inches
- DVR Width: 16.7 inches
- DVR Depth: 3.9 inches
- DVR Weight: 5.7 pounds
- Output
- DVR Output(s): HDMI, RCA audio, USB 2.0, USB 3.0, VGA
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: true
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: 2 Years
- Manufacturer's Warranty - Labor: 2 Years
- Other
- UPC: 695529012094
Monitor activity at your business with this Lorex security system. It includes eight channels and four cameras that record video in detailed quality and store the footage on a 2TB network video recorder with plenty of storage space. This Lorex security system has built-in color night vision that works at distances up to 130 feet.
- Push notifications and email alerts keep you informed: The system automatically records once motion is detected, then sends you e-mail alarm notifications.
- Monitor your property with 4 cameras: Four 2688 x 1520 resolution IP cameras record high-resolution video for widescreen viewing.
- View and record from up to 8 channels: Add up to 4 more cameras of your choice for 8-channel simultaneous monitoring. Compatible with Lorex PoE HD IP cameras only (sold separately).
- Set and forget with hard drive storage: Record continuously from 8 channels with a 2TB hard drive. For extra capacity connect an external hard drive to the SATA port.
- 4MP video recording: Provides HD quality even when zoomed, offering clearer identification in video footage.
- Color Night Vision™: Delivers full-color nighttime video for improved recognition of objects in low-light conditions. Up to 130' in ambient lighting and 90' in total darkness.
- See more with the 101° wide-angle lens: Watch over a room with minimal blind spots.
- Weather-resistant camera design: IP66 rating protects against wind and rain for versatile indoor/outdoor monitoring.
- Live viewing and real-time playback: Stream live video from your home to your mobile device.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer the stored footage.
- Remote viewing with FLIR Secure™ app: Lets you see what's happening from wherever you are.
- 4K ready NVR: You can add 4K resolution security cameras to the remaining open channels if your security needs expanding.
- Power-over-Ethernet installation: Thanks to the Power-over-Ethernet (PoE) technology you can install your cameras where you need them most without having a power outlet nearby.
- Ceiling- / wall-mountable: For optimal placement on a wall or ceiling.
Whats Included
- 1 x NVR
- 4 x IP Bullet Cameras with mounting kits
- 4 x 100ft Ethernet Cable
- 1 x Allen Key
- 1 x Ethernet cable
- 1 x Power cable
- 1 x HDMI cable
- 1 x Remote control
- 1 x USB mouse
- Quick start guides
A: I am going to answer your question from experience. Now it is 64 degrees outside, so at this time it is not any help. However, I was out of town, and accessed the cameras from a far remote location, with the temperature, at the camera location of 50 degrees. The cameras all continued to function. Prior I had Lorex Surveillance Cameras, and they continued to function properly at temperatures as low as 35 degrees, for at least 5 years, without failure. The system I have now, which you are asking about, is far inferior to the prior surveillance cameras I had, in reference to the quality of the software, and the quality of the video. The prior system was full High Definition, yet this system is supposed to be much higher definition. It is NOT. I would not have the system, if I would have had the correct return time. I had another 2 weeks to return it. Unfortunately I overlooked the return time. The system is not at all as advertised. It is much easier to set up, but the quality is not at all as advertised. I cannot say yet as to the functioning of the cameras with this system, with the outside temperature in the lows at 40 degrees or lower. I have not had it long enough, to know. This coming Thursday, the temperature is forcast at 40 degrees. I will send another reply to your question the day after. If the temperature goes as low as 40 degrees and still functioning I will attempt to answer your question again. I do not know if I can answer twice. I will try however. For me, you will be very disappointed both in the software , and the quality of the video. Personally my recommendation is for you to take it back to Best Buy, for a refund, if you still have the time. My Daughter has a Samsung Surveillance system, and it functions with quality video, and never has a problem in cold weather, much lower than 60 Degrees. For me, I wish very much I would have purchased Samsung. I cannot say if all Samsung Surveillance Systems are very good, however my Daughter's is very good with high quality video. Worth a try. Look for my answer after this coming Thursday if I can reply to you, I will.
A: Lorex color at night is false advertising. There is not an adjustment built into the Lorex Flir software for colors to appear as advertised. The only way to get color is to provide additional lighting, such as an outside flood light. Then you will see color. This fact is absurd, and, definitely NOT as advertised. Even worse, if the infrared from the cameras reflect off a white building surface, the camera being used shuts down. Again, the only solution is to add additional lighting. And at night and certain times during the day, depending upon the lighting situation, there are significant problems with there not being enough or to much light. Prior models had numerous adjustmenst built into the software. The adjustments have been removed. The prior adjustment were very easily accessed and were permanent until changed. There are other technical problems. I will not go into them, being your question pertains to color. It is not just color problems, but much more extensive is the reason I added information in addition to your color question. This NVR is a very stripped down version of the prior Lorex NVR surveillance system. My recommendation, if you still have time left is definitely return the Lorex Surveillance system to Best Buy. Very unfortunately my time to return is past. However I definitely will not buy Lorex anything again. Hope getting assistance from Lorex Tech Support in finding a person that know what they are doing is just about zero. I hope this helps. I wish I would have known, before I purchased Lorex. However, never ever again. As a final note, a bad review you may find, is not exaggerated.
Q: Can you purchase and add 4K Cameras to this system?
A: Yes. The system comes with 2K (4MP) cameras and the NVR is 4K ready. Cameras can be PoE tethered to the NVR, (or) wireless or wired cameras into your local router up to the maximum number accepted by the NVR you choose (8,16,32).
A: I have a Verizon Samsung Galaxy S7 on the 4G LTE network and I have had no problems at all with it. I also use it on a daily basis.
Q: are the camera included 4k ready
A: they are 2K.
Q: Can the recording capacity of the NVR be increased?
A: The 8-channel NVR only accommodates a single HDD up to 6TB. You can quite easily replace the 2TB HDD with a single 4TB or 6TB HDD. The 16-channel and 32-channel NVR's accept a second HDD up to 6TB each for a total of 12TB per NVR. It is important to be discerning when choosing a hard drive and only a surveillance hard drive such as the Seagate SkyHawk 6TB Surveillance Hard Drive should be used. These hard drives are specifically designed for the continuous multi-channel recording and the concurrent recording/playback that is inherent with surveillance systems.
Q: Do these cameras record sound?
A: No. Video Only.
