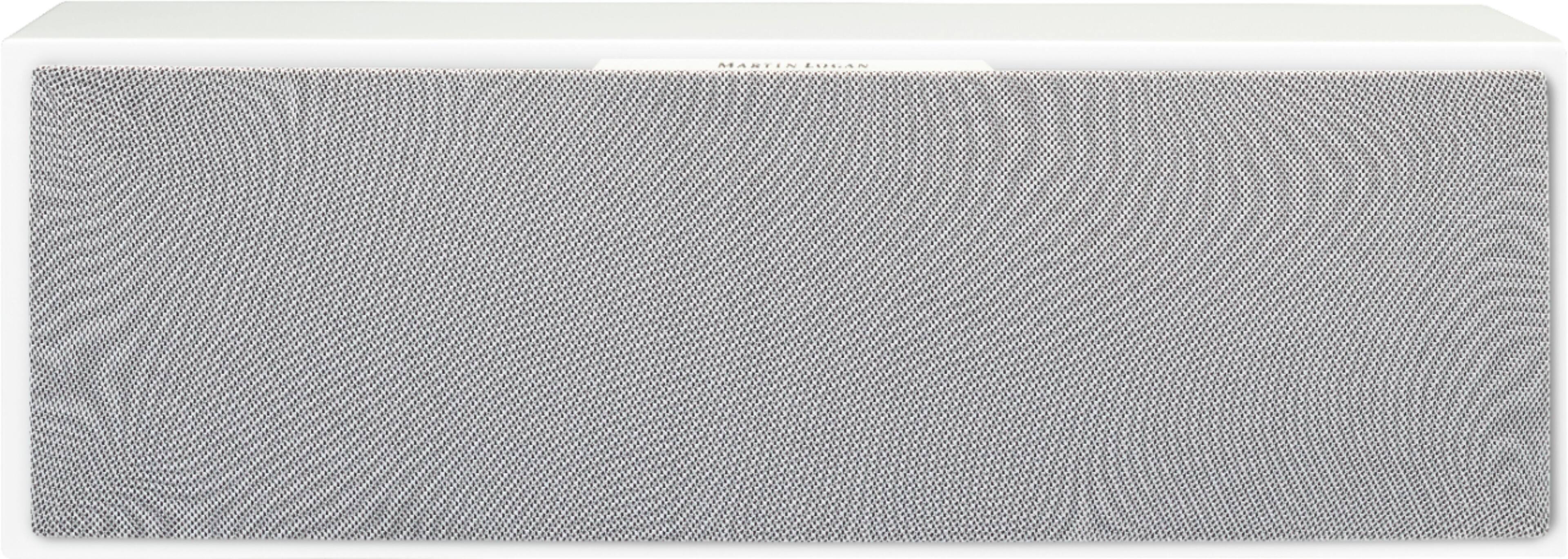

MartinLogan - Motion Dual 6-1/2" Passive 2.5-way Center-Channel Speaker - Matte White
- Key Specs
- Speaker Type: Center channel
- General
- Product Name: Motion Dual 6-1/2" Passive 2.5-way Center-Channel Speaker
- Brand: MartinLogan
- Model Number: MO50XTIMW
- Color: Matte White
- Audio
- Speaker Type: Center channel
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 50 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 94 decibels
- Number of Tweeters: 1
- Tweeter Size: 2.4 inches
- Number of Drivers: 3
- Number of Woofers: 2
- Woofer Size: 6.5 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 7.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 29.1 pounds (The out of box weight of the item.)
- Material
- Woofer Material: Aluminum
- Included
- Cable(s) Included: None
- Warranty
- Manufacturer's Warranty - Parts: 5 years
- Manufacturer's Warranty - Labor: 5 years
- Other
- UPC: 810123024766
Upgrade your home entertainment setup with these Martin Logan Motion Series speakers. The dual 6.5-inch aluminum cone woofers deliver thumping bass, while the tweeter reproduces high treble sound. These Martin Logan Motion Series speakers feature solid cabinets to reduce vibrations, and the luxurious finish adds upscale style to your living room.
- Two 6-1/2" aluminum woofers: Along with 1-1/4" x 2-1/2" folded motion XT tweeter for a complete range of sounds.
- Removable grille: Remains acoustically transparent while protecting the speaker's components.
- 50Hz - 25kHz frequency response: Ensures a wide range of accurately reproduced sound.
- 94dB sensitivity: Ensures crisp, robust audio.
- 4 ohms nominal impedance: Ensures efficient conduction of power through the speaker.
Whats Included
- MartinLogan Motion Dual 6-1/2" Passive Center-Channel Speaker
Q: I have Martin Logan ESL side speakers. Will the motion center speaker match up well with them?
A: Hello. Thank you for your question and we hope all is well. All of our speakers are designed to mix and match with one another regardless of the series. So pairing your ESLs with a Motion center will work seamlessly together. We hope this helps and we appreciate your support.
Q: What is the RMS output and are each speaker functional or with passive radiators?
A: Hello. Thank you for your question and your interest in our products. For the Motion 30i, we typically recommend amplifier power between 20-200 watts per channel. As for the speakers, the Motion 30i and 50XTi are designed with a 2.5 way crossover to prevent lobing from occurring below the tweeter crossover point. Unless there is a single driver that plays all frequencies, there will always be some lobing. The 2.5 way design minimizes this as much as possible. In a 2.5 way MTM (Midrange/Tweeter/Midrange) configuration (Like the Motion 30i/50XTi) both woofers play the same up to the lower crossover point, then one woofer rolls off, and the other plays up to the tweeter crossover point. This minimizes lobing effects, in the same manner, as a TM (Tweeter/Mid like 15i or 35XTi) design would. With this, combined with the controlled dispersion of the Folded Motion Tweeter, we are able to avoid these acoustic issues. We hope this helps and we greatly appreciate your support.
A: I have researched this a lot. ML can only speak to their speakers, not the avr. ML is biased and should not be trusted to answer regarding the avr. Consult your avr manual. If still unsure, ask the avr customer service. They will tell you the answer. (I did and was told not to use.) That being said, people allegedly mismatch speaker and avr impedance (ohm) without causing damage. If you do this, do not play at loud volumes though.
A: I tried both, and I heard an obvious difference when bi wiring the 50 XTi. I was surprised because I have tried other speaker brands with and without biwiring, and I usually cannot tell the difference. When biwiring, follow the manual and remove the jumper clips.
A: undefined
A: CALL ML LIKE I DID. ASK THEM‼️
