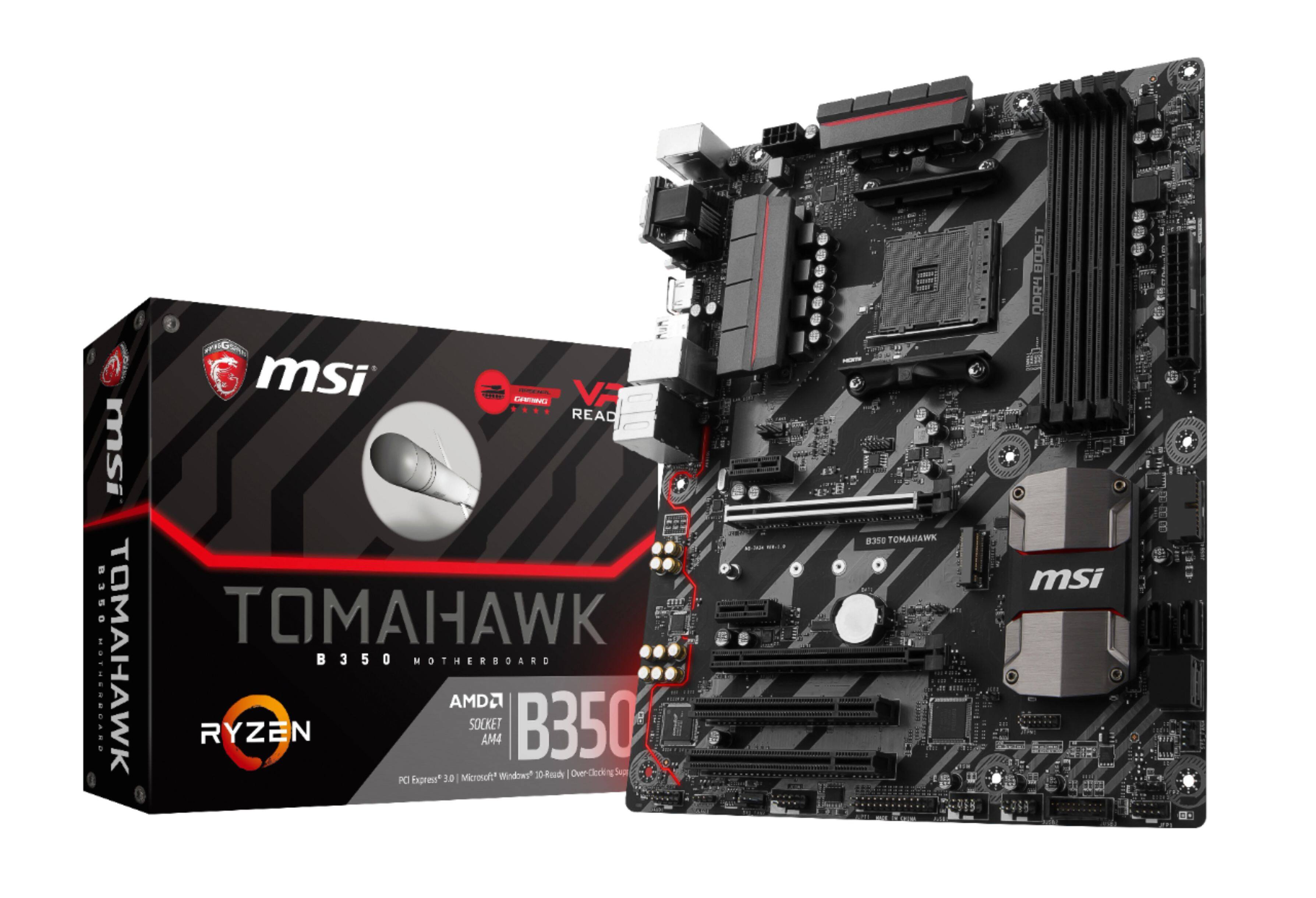

MSI - B350 TOMAHAWK (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
- Key Specs
- Chipset: AMD B350 FCH
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- General
- Product Name: B350 TOMAHAWK (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
- Brand: MSI
- Model Number: B350 TOMAHAWK
- Compatibility
- Chipset: AMD B350 FCH
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Athlon
- Connectivity
- Power Connector: 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 9.6 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 824142142974
Assemble a high-performance gamer computer with this VR-ready MSI Tomahawk gaming motherboard. It supports DDR4 and Intel Optane memory systems for fast data processing, and it’s compatible with AMD Crossfire setups for smooth installation of multiple graphics cards. The heavy-plated heat sinks of this MSI Tomahawk gaming motherboard provide thermal efficiency.
- Supports AMD processors: Including Athlon™, A series and Ryzen in an AM4 socket.
- Up to 3200MHz (OC) system speed: With an AMD B350 FCH chipset for efficient operation.
- AMD CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 1 USB-C Gen1, 1 PS/2 (mouse/keyboard), 1 audio line-in, 1 audio line-out, 1 microphone, 1 VGA, 1 DVI-D, 1 HDMI, and more.
- Expansion capabilities: Include 1 PCI Express 3.0 x16, 1 PCI Express 2.0 x16, 2 PCI Express 2.0 x1 and 2 PCI.
Whats Included
- MSI B350 TOMAHAWK
- Software
Q: Does this motherboard support a Intel Core i5 CPU?
A: No. It’s a AM4 socket.
A: It can handle new line processors but it does need a bios update. Just download the update to a usb and flash the bios msi is one of the easiest in my opinion. But if your not comfortable with that take it to your local pc shop and they can help you.
Q: Do i need a separate graphics card for this motherboard?
A: You will unless your cpu has a built in gpu
Q: Is this motherboard updated for the ryzen 2600x or would i need to updated the bios
A: Yes the item i purchased was bought in store and it carried the ryzen 2000 series ready sticker
Q: Can this mother board run a sli gpu setup
A: No. This motherboard does not have SLI Support
Q: is it compatible with intel cpu i7-8700k/300 series
A: No this series is for AMD sockets only.
Q: will this board work with amd fx 8320 cpu
A: The MSI B350 does not support AM3+ socket CPUs like the FX 8320. Only AM4 socket CPUs like AMD Ryzen 1st and 2nd Generation CPUs.
Q: Will this work with evga geforce gtx 960
A: The motherboard has the appropriate slot for it. My EVGA 8800GTX card worked in it without any issues.
