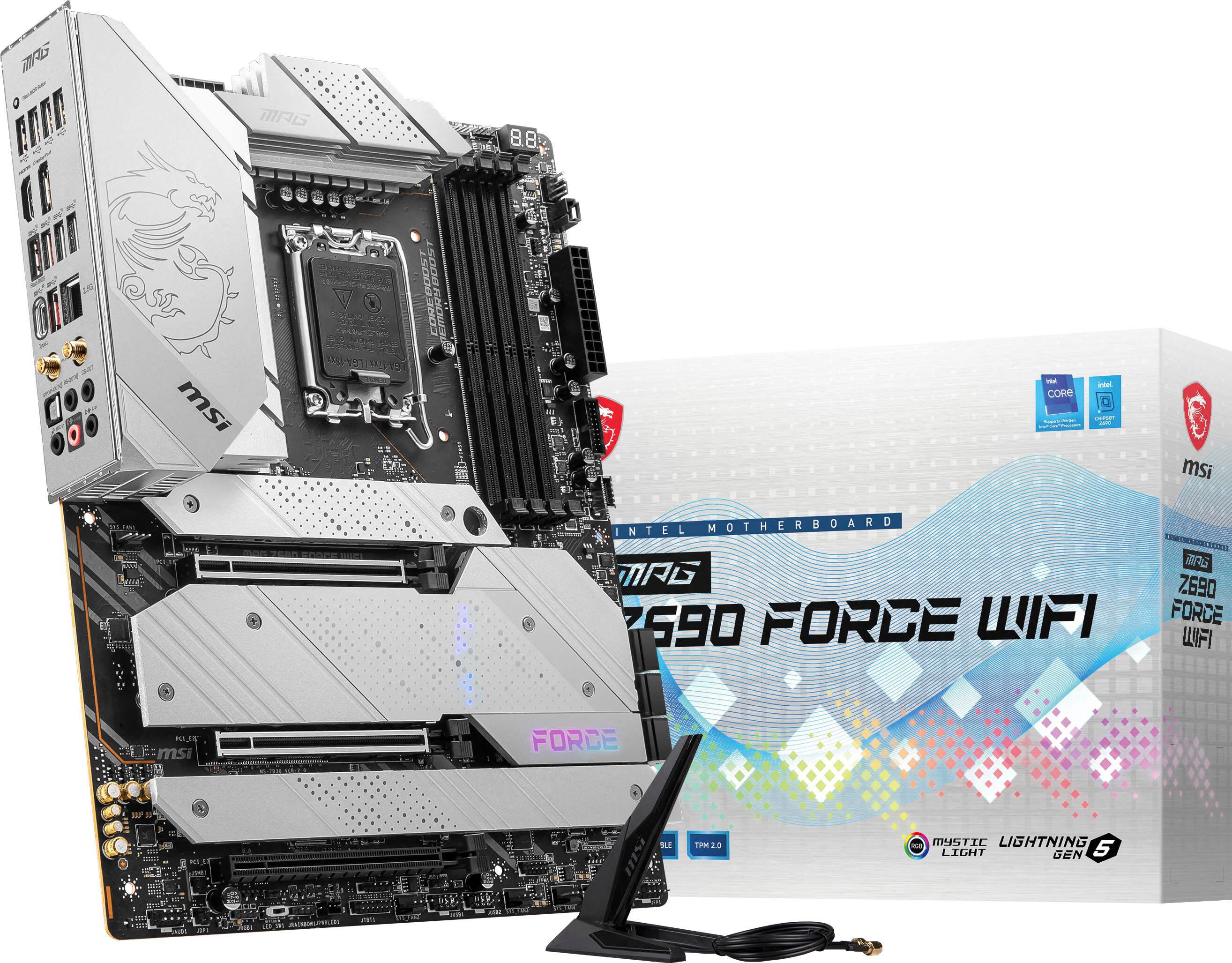

MSI - MPG Z690 FORCE WIFI Socket LGA 1700 USB 3.2 Intel Motherboard - Black

Name: MSI - MPG Z690 FORCE WIFI Socket LGA 1700 USB 3.2 Intel Motherboard - Black
Brand: MSI
SKU: 6484561
Rating: 4.6 (38 reviews)

Model: MPG Z690 FORCE WIFI

SKU: 6484561

This item is no longer available in new condition. See similar items below

Key Specs
- Chipset: Z690
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
General
- Product Name: MPG Z690 FORCE WIFI Socket LGA 1700 USB 3.2 Intel Motherboard
- Brand: MSI
- Model Number: MPG Z690 FORCE WIFI
- Color: Black
Compatibility
- Chipset: Z690
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel, Intel Core i9, Intel Core i7, Intel Core i5, Intel Core i3
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
Slot
- Number of M.2 Slots: 5 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 4
Connectivity
- SATA Connector: 6x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 6x 4-pin (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
Ports
- USB Ports: 8 x USB-A 2.0, 8 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 1x Front Audio (JAUD)
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 40 ounces (The out of box weight of the item.)
Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6666 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
Features
- Multi-GPU Support: CrossFire
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
Other
- UPC: 824142269763

PREMIUM HARDWARE DESIGN With years of experience, MSI is no stranger to building high- performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions. DIRECT 18 + 1 +1 PHASES POWER DESIGN Unleash and sustain maximum performance with an aggressive VRM design built with a total of direct 18 +1+1 power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work. Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking. The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal. The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

Supports Intel® 12th Gen processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1700 socket
Chipset: With an Intel® Z690 chipset for fast computing.
Dual Channel DDR5-6666Mhz: 4 DIMM
Graphics Interface: 2x PCIe 5.0 x16
Expansion Slots: 1x PCIe 3.0 x16
Storage: 4x M.2 Gen4 x4 64Gbps 1x M.2 Gen3 x4 32Gbps 6x SATA 6Gbps
USB: 1x USB 3.2 Gen 2x2 20 Gbps (1 Type-C) 6x USB 3.2 Gen 2 10Gbps (5 Type-A + 1 Type-C) 2 x USB 3.2 Gen 1 5 Gbps (2 Type-A) 6x Usb 2.0
Wireless: Intel Wi-Fi 6 module, Bluetooth 5.2

Product Manuals

Product Datasheet/Brochure

Q: DDR4 ?

A: This board uses DDR5 only.

Q: Are any of the M.2 slots gated by CPU type? My current MB requires 11th gen Intel to use the full speed of 2 of the M.2 slots, as I have 10th gen I have to use the slower slots. Anything funky like that with this MB?

A: The MPG Z690 Force WiFi has no CPU limitations in regards to M.2 storage devices.

Q: What is the preferred size and speed of the Ram if you use two stick compared to four with this motherboard?

A: I just started with 32gig@6400mhz/spd. Gskill. Not one issue with it. Runs XMP perfectly.

Q: Does this support Nvidia-SLI or AMD Crossfire?

A: Yes

Q: Does this have a ufs 3.1?

A: undefined

Customers are saying

Customers praise the MPG Z690 FORCE WIFI motherboard's DDR5 compatibility and ease of use, highlighting the user-friendly BIOS and its excellent performance. The board's attractive appearance and convenient onboard Wi-Fi are also frequently cited as positive aspects. However, some users note the minimal RGB lighting as a drawback.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
Beautiful motherboard!!!!
I went from a Z690 pro-A to the Z690 force and I love the difference! Both are great boards, but its worth it to spend the extra money to get the extra features. I went with a white build with some black sprinkled in so this motherboard was the perfect choice. Four M.2 slots is just right for the amount of storage! Plenty of USB slots to plug in everything you need. The only con is that there are only two internal usb slots, so if you plan to use more than one brand's controller you will need an adapter. That's only a small issue though. I would recommend this motherboard to anyone!!
Posted 2 years ago by MattT
Rated 5 out of 5 stars
Great board for me.
Had a 790 msi and it wouldn't load drivers correctly. Went with this msi board and it works great. Had to flash the bios so that the 13900k would be recognized. Flash bios button was a lifesaver.
Posted 2 years ago by Frank
Rated 5 out of 5 stars
MSI has come a long way with Z690
MSI is proving itself to be a great board on the Z690 front. coming form strictly ASUS and ASROCK motherboards for the last few gens. THIS board is GREAT with 5 M.2, 4 of which are PCIEx4 gen 4 slots.. 6 sata, that if you use 5 M.2s you can STILL use 5 SATAs. outstanding ! been a solid performer and the BIOS is easy to setup and get going right away!
Posted 3 years ago by Yamataz
