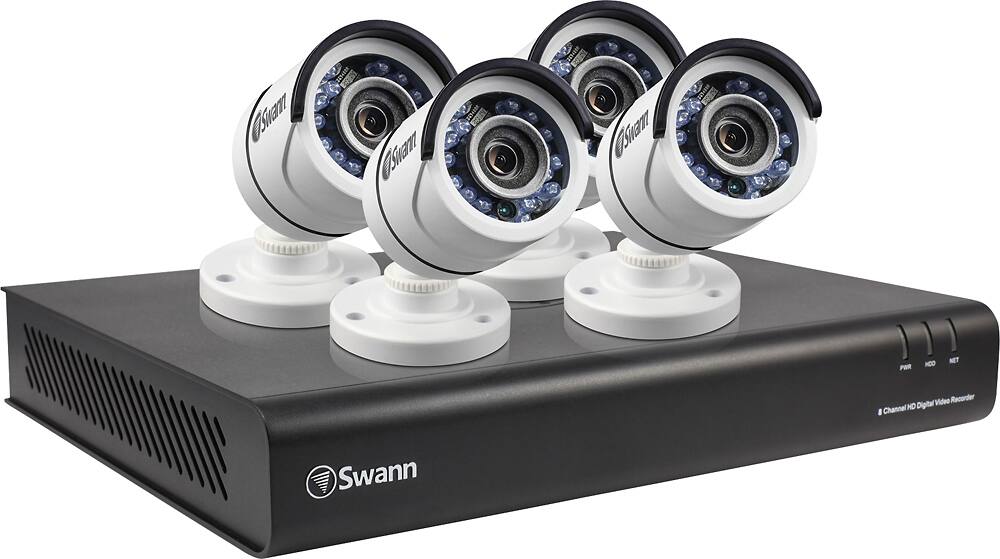

Swann - 8-Channel, 4-Camera Indoor/Outdoor High-Definition DVR Surveillance System - White/Black
- Key Specs
- Camera Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 77 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Camera Power Source: AC/DC Power (plug-in)
- Number Of Channels: 8
- Recording Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage Type: DVR
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 8-Channel, 4-Camera Indoor/Outdoor High-Definition DVR Surveillance System
- Brand: Swann
- Model Number: SWDVK-845004-US
- Camera
- Camera Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 77 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 100 feet
- Number Of Cameras Included: 4
- Number Of Cameras Supported: 8
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Number of IR LEDs: 34 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Infrared Distance: 100 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Infrared Cut Off Filter: true (Often referred to as an IR or heat-absorbing filter, this camera feature is designed to block infrared light during the day to produce optimally lit images, while still allowing for night vision capabilities in low light.)
- Camera Mount Type: Other
- Power
- Camera Power Source: AC/DC Power (plug-in)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Camera Compatibility: Swann SWPROT855 CAM wired cameras
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Records Audio: true
- Number Of Channels: 8
- Recording Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Video Recording Prompt: Motion detection
- Storage
- Storage Type: DVR
- DVR Storage Capacity: 1000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 6000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Protective Qualities: Water resistant
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Auto-On Detection: Motion
- Dimensions
- Camera Height: 5.75 inches
- Camera Width: 2.36 inches
- Camera Depth: 2.36 inches
- Camera Weight: 0.37 pounds
- DVR Height: 1.5 inches
- DVR Width: 10 inches
- DVR Depth: 9 inches
- DVR Weight: 3 pounds
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): HDMI, VGA
- Display
- Camera Color Display: true
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: false
- Cable(s) Included: true
- Other
- UPC: 840236112838
Swann 8-Channel, 4-Camera Surveillance System: Easily monitor your home or business with 4 cameras and a DVR for viewing multiple feeds simultaneously. IR night vision lets you see up to 100' in the dark.
- Watch multiple areas with 4 cameras: Includes 4 SWPROT855 CAM cameras with CMOS sensors for detailed image capture.
- Record and view video from up to 8 channels: Add up to 4 additional cameras (sold separately) for enhanced security.
- Store videos to review later: DVR with 1TB hard drive offers ample space to save recordings.
- Enjoy HD recording resolution: 1080p resolution provides a crisp, clear picture.
- Night vision up to 100': 34 IR LED lights enable visibility around the clock.
- Viewing angle up to 77°: Lets you monitor a wide area of your property.
- Weather-resistant design: Rugged cameras endure most weather conditions, including extreme temperatures, for outdoor use.
- HDMI and VGA outputs: Along with an HDMI cable let you display video feeds on an external monitor or TV (sold separately).
- Stay up to date: Monitor from afar via your Android or Apple® iOS device.
- BNC wired installation: For a reliable connection.
Whats Included
- DVR (DVR-84500) with 1TB hard drive
- 4 cameras (SWPROT855 CAM)
- Four 60' BNC cables, HDMI cable, Ethernet cable, power adapter and splitter
- Mouse, mounting hardware, theft-deterrent stickers
- Owner's manual
Q: how many hours of video will this record with all 4 cameras?
A: That depends upon the resolution you set and whether you have continuous record or only capture motion events. In my case, I have continuous record at night (6:00pm - 6:00 am) and use motion detection during the day. I have the resolution set at 1080p ... The recorder keeps 2 weeks history with these settings. I had originally set recording for 24 hr motion only ... with that setting I retained 4 weeks history.
A: Yes it can be.
Q: Does this model have motion alerts?
A: Yes, the cameras in the system have motion detection.
A: This camera system as a downloadable app for Android and iPhone you can also view video feed from a PC it doesn't take much to set the system up I had mine up and running in less than a half hour. It took longer to wire up the cameras related to set up the NVR system.
A: The 100ft cables for each camera are the size of the standard RCA video/audio cable in thickness. It's the same with the exception of the video connector which has a BNC twist lock and the audio cable which is a male to female connector.
A: My unit has an ethernet port which recognizes my internet connection. It appears that you need to establish an account with Swann to use the SwannView app on any of your mobile devices. I don't want an outside party to have access so I don't use the app.
Q: Is this weather proof? Will it be okay outside in the rain and temperature up to 100-110 degrees?
A: Yes it would be fine up to 110. Mfg says they are stable up to 122 degrees. If possible shield them from sun to help extend their life
