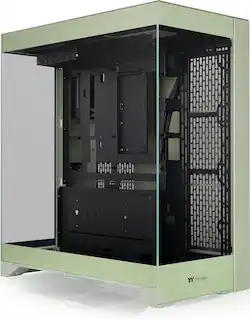

Thermaltake - CTE E550 TG Mid Tower ATX PC Case - Matcha Green
- Key Specs
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 415 millimeters
- Product Height: 20 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Front, Left side, Side
- Case Material: Steel
- General
- Brand: Thermaltake
- Model Number: CA-1Z8-00MEWN-00
- Product Name: CTE E550 TG Mid Tower ATX PC Case
- Color: Matcha Green
- Case Material: Steel
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 220 millimeters
- Maximum GPU Length: 415 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.0, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of USB-A Charging Ports: 2
- Number of USB-C Charging Ports: 1
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 20 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 512 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Front, Left side, Side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 166 millimeters
- Number of Fans Supported: 11
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 0
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 841163097106
CTE E550 TG focuses on the theatrics of fish tank style PC case. With the 90 degree rotated motherboard, we are able to replace the rear metal panel with tempered glass, creating ultra wide viewing angle that is almost identical with open frame chassis. CTE E550 TG also offers three different ways to install graphic cards, and is compatible with hidden connector motherboard from ASUS, MSI, and GIGABYTE.
- Aesthetic and dual chamber design: Enjoy an ultra-wide viewing angle with three tempered glass panels and enhanced airflow and cable management with a dual chamber design.
- Hidden-connector motherboard support: Compatible with ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH motherboards.
- Flexible Three-Way VGA Installations: Offers versatile VGA installation options with rotational PCIe slots and a floating VGA bracket for flexible setup.
- Comprehensive cooling support: Supports up to six 140mm fans and three 120mm fans, with space for radiators up to 420mm for optimal thermal management.
- Convenient I/O ports: Includes USB 3.0 Type-A x 2, USB 3.2 Gen 2 Type-C x 1, HD audio.
Whats Included
- 1x Thermaltake CTE E550 TG Mid Tower ATX PC Case - Matcha Green
Product Manuals
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum height of a CPU cooler that can be installed is 166 millimeters.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 415 millimeters.
Q: How many internal 3.5-inch bays does the case have?
A: The case has two internal 3.5-inch bays.
Q: Does the case have any built-in fans?
A: The case does not come with any fans included.
Q: What is the warranty period for the case?
A: The manufacturer's warranty for both parts and labor is 3 years.
Q: Can the case support liquid cooling?
A: This case is liquid cooling ready.
