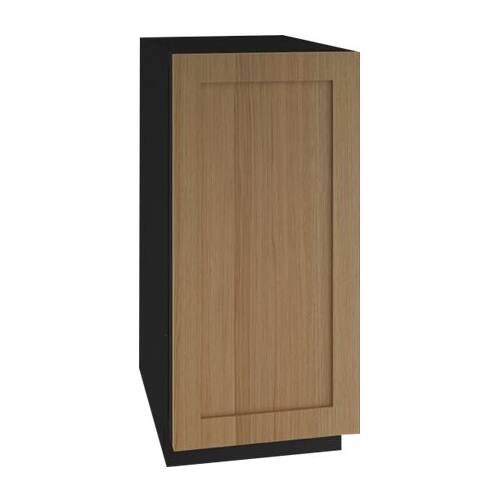

U-Line - 90-lb Freestanding Nugget Ice Machine with Reversible Hinge in Integrated Solid with Pump - Custom Panel Ready
- Key Specs
- Product Height: 34.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 15/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Daily Ice Production: 90 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice Storage Capacity: 30 pounds (Maximum quantity of ice that can be stored in the appliance’s designated storage compartment(s).)
- Color Finish: Custom
- General
- Product Name: 90-lb Freestanding Nugget Ice Machine with Reversible Hinge in Integrated Solid with Pump
- Brand: U-Line
- Model Number: UHNP115-IS01B
- Color: Custom Panel Ready
- Color Finish: Custom
- Dimensions
- Product Height: 34.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 15/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 100 pounds (The out of box weight of the item.)
- Capacity
- Daily Ice Production: 90 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice Storage Capacity: 30 pounds (Maximum quantity of ice that can be stored in the appliance’s designated storage compartment(s).)
- Ice & Water
- Ice Maker Ice Form: Nugget
- Drain Required: true
- Drainage Method: Drain pump - pump included
- Filter Info
- Water Filter: false (Filters work to remove contaminants from the water before it freezes, which may result in cleaner and better-tasting ice cubes. Filters also promote the longevity of the appliance by reducing mineral and scale build-up.)
- Features
- Ice Maker Type: Freestanding/built-in
- Door Style: Reversible
- Cabinet Surface Finish: Smooth
- Environmental
- Refrigerant: R-600a
- Electrical Specification
- Amperage: 2 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Chemical Disclosures: https://www.u-line.com/pub/media/u-line/warranty_compliance/PFAS.PDF (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Other
- UPC: 833790052108
U-Line Nugget Ice Machine 15” Pump Reversible Hinge Integrated Solid 115v
- Produces up to 90 lbs. of ice in 24-hour period: Large-capacity bin stores 30.9 lbs. of ice until you need it.
- Freestanding design: For a variety of installation options.
- Reversible door: Increases placement options.
- Adjustable feet: Enable balanced installation on uneven surfaces.
- Electronic controls: Offer simple use.
- Produces up to 90 lbs. of ice in 24-hour period: Large-capacity bin stores 30.9 lbs. of ice until you need it.
- Freestanding design: For a variety of installation options.
- Reversible door: Increases placement options.
- Adjustable feet: Enable balanced installation on uneven surfaces.
- Electronic controls: Offer simple use.
Whats Included
- U-Line 1 Class UHNP115-IS01B
- Drain pump
- U-Line 1 Class UHNP115-IS01B
- Drain pump
Q: What is the manufacturer name and model number of this ice machine?
A: The manufacturer name of the ice machine is U-Line. The model number of the ice machine is UHNP115-SS01B.
Q: What is the warranty information for parts and labor on this ice machine?
A: The ice machine comes with a one-year limited warranty for all parts and labor to repair or replace any defective parts. Additionally, there is a two-year limited warranty for the same coverage, and a five-year sealed system limited warranty for specific parts, excluding labor.
Q: What type of controls does the ice machine have?
A: The U-Line 90-lb Freestanding Nugget Ice Machine features electronic controls, offering simple and user-friendly operation. These controls include power on/off, adjustable ice density settings, and an option to enable Sabbath Mode.
Q: What is the amperage requirement for operating this ice machine?
A: The amperage requirement for operating this ice machine is 2 amperes. The unit requires a grounded and polarized 115 VAC, 60Hz, 15A power supply.
Q: What is the daily ice production capacity of this nugget ice machine?
A: The daily ice production capacity of this U-Line nugget ice machine is 90 pounds. It can produce up to 90 lbs. of ice in a 24-hour period. The large-capacity bin can store up to 30.9 lbs. of ice.
Q: Can the door of the ice machine be reversed to open from the other side?
A: Yes, the door of the ice machine can be reversed to open from the other side. The instructions for reversing the door are provided in the user guide. 1. Open the door and remove the gasket near the hinges. 2. Loosen the Torx head screws on both the upper and lower hinge plates. 3. Square and align the door as necessary. 4. Tighten the Torx head screws on the hinge.
Q: What is the voltage requirement for operating this ice machine?
A: The voltage requirement for operating this ice machine is 115 volts. This information can be found in the product specifications section of the user guide, where it states "Voltage: 115 volts".
Q: What is the brand name of this ice machine?
A: The brand name of the ice machine is U-Line. This information can be found in the "product brand" section of the product description: "product brand: U-Line".
