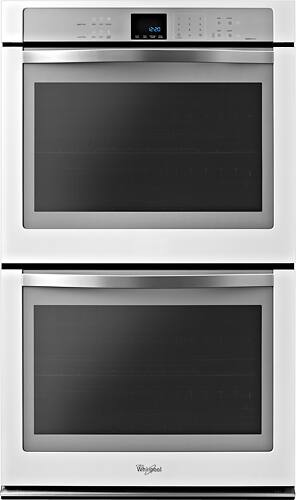

Whirlpool - 30" Built-In Double Electric Convection Wall Oven
- Key Specs
- Product Height: 49 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26.44 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Color Finish: White
- General
- Product Name: 30" Built-In Double Electric Convection Wall Oven
- Brand: Whirlpool
- Model Number: WOD93EC0AH
- Color Finish: White
- Dimensions
- Product Height: 49 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26.44 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Door 90 Degrees Open: 46.75 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Cut-Out Dimensions
- Cut-Out Height: 50.25 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28.5 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 18 inches
- Oven 1 Interior Width: 25 inches
- Oven 1 Interior Depth: 19 inches
- Oven 1 Cavity Material: Porcelain
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 1 Bake Element: 2800 watts
- Oven 1 Broil Element: 3600 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 18 inches
- Oven 2 Interior Width: 25 inches
- Oven 2 Interior Depth: 19 inches
- Oven 2 Cavity Material: Porcelain
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Bake Element: 2800 watts
- Oven 2 Broil Element: 3600 watts
- Electrical Specification
- Wattage: 2800 watts (Measurement of electrical power.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 883049255170
Quickly bake your favorite foods with this Whirlpool WOD93EC0AH double wall oven that features a TimeSavor convection system for even heating and fast results. The adjustable racks let you customize the interior space to accommodate a variety of foods.
- Membrane switch controls: For easy operation of oven functions.
- 5 adjustable racks (3 upper, 2 lower): Provide flexible cooking space.
- Upper and lower hidden bake elements: Help simplify cleanup.
- TimeSavor Ultra convection system: Uses a rear fan and a 2500-watt heating element to distribute heat evenly throughout the upper oven for fast, efficient cooking. Convection conversion automatically calculates cooking times.
- AccuBake temperature management system: Surrounds food with even heat for consistent baking. Built-in sensors monitor the oven temperature and turn on cooking elements as needed for ideal results.
- Rapid preheat option: Reaches the desired temperature up to 25% faster for reduced cooking times and energy conservation.
- Sabbath mode: Safely maintains a temperature for an extended period of time in order to comply with kosher cooking practices.
- Delay-cook option: Lets you set the oven to start at a predetermined time, so you can arrive home to freshly baked foods.
- Control lockout: Prevents unintentional or unsupervised use for safety.
- SteamClean option: Uses heat and 1-1/4 cups of water to clean light spills on the bottom of the oven's interior.
- Extra-large EasyView window and an incandescent interior light: Let you check on food without opening the door.
- Fit system: Offers flexible installation options to easily suit your décor.
Whats Included
- Whirlpool 30" Built-In Double Electric Convection Wall Oven
- Owner's manual
A: best buy installed our double oven and did a quick professional job. they were very careful removing the old oven and careful bringing the new one in so that they did not damage the walls while moving the ovens. completely removed all packing materials so that i didn't have to do anything.
A: Hi Julie, these ovens offer a Steam Clean option. It is not like traditional High High Self Clean Cycles. Water placed in the bottom causes steam that can help loosen light spills from the bottom of the oven. We hope this helps!
Q: Does Whirlpool .org make a Black Stainless Steele Oven
A: Hello! Unfortunately, we do not have a Black Stainless Steel Oven at this time. However, we do recommend keeping your eyes open for new models that are coming out.
Q: What does Black Ice look liked ?How does .org differ from Black Stainless Steel
A: The black ice models have a higher gloss so they are a bit more shiny. And then the Ice models have the silver accent handles. Thank you for your inquiry regarding our Whirlpool appliances!
Q: Will this double wall oven (Whirlpool WOD93EC0AE) fit in my cabinet?
A: Dear Customer: You may choose the following link under Manuals and Literature to review the cutout dimensions and space requirements: http://www.whirlpool.com/-[WOD93EC0AE]-1020949/WOD93EC0AE/ Oven model WOD93EC0AE does qualifiy for the FIT system. Please call the Fit System Limited Guarantee Service Center at 800-253-1301 to initiate your claim. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: Do I need to buy any other parts with this double oven?
A: HI Betsy, you may view the Installation Instructions at www.Whirlpool.com under the service and support tab to determine what parts need to be purchased for the oven for installation. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances! Thank you.
