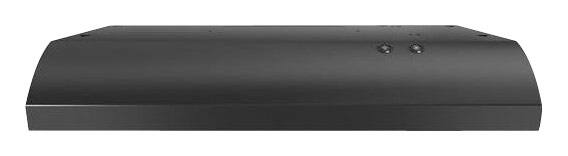

Whirlpool - 30 inches - Black
- Key Specs
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Convertible
- Color Finish: Black
- General
- Product Name: 30" Convertible Range Hood
- Brand: Whirlpool
- Model Number: UXT4130ADB
- Color Finish: Black
- Dimensions
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 12 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 420 inches
- Duct Width: 10 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Convertible
- Number of Fan Speeds: 2
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Rocker
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: Incandescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 190 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 883049326559
Remove smoke and cooking odors from your kitchen with this Whirlpool UXT4130ADB 30" convertible range hood that features a 2-speed fan and a 190 cfm exhaust capacity for efficient performance. The removable grease filter makes cleanup easy.
- Grease Filter: The grease filter helps trap unwanted grease and helps remove odors.
- Powerful 2-Speed Fan: Two fan speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
- Incandescent Lighting: Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
- FIT System: The FIT system helps reduce measuring, cutting and trim so that your hood is a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- Flexible Ventilation Options: A convertible design lets you install almost anywhere. When external ventilation isn’t an option, the hood’s fan will recirculate air through filters that capture grease and cooking odors to help keep the kitchen clean.
Whats Included
- Whirlpool 30" Convertible Range Hood
- 3-1/4" x 10" damper
Q: does this Hood plug in to the wall normal AC plug?
A: Hello sandy! This model requires a A 120 V, 60 Hz, AC only, 15 A, fused electrical circuit is required.
Q: Does this item have an exhaust and a light
A: The Range hood does not have an exhaust and does have a light. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: Does this range hood have to be vented to the outside?
A: no, this vent can be converted to be recirculating. For more information, please see the Installation Instructions at https://www.whirlpool.com/content/dam/global/documents/201705/InstallationInstructions-W10646403-RevF.pdf.
Q: What is 'two level' lighting ?? Is it a night light?
A: Hello Gryybbygirl! That means there is 2 different level lights. One brighter than the other. One low light, one high light. Thank you for your inquiry on our Whirlpool appliances.
A: appshopper, this model is a 30 inch Range Hood. The dimension are: Height 4 15/16 inches, Width 29 15/16 inches, Depth 18 5/8 inches. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: can this hood be vented to outside, and does the equipment come with hood
A: Butch, yes this can be vented outside.
Q: Please explain “convertible “
A: This model can either be installed vented/ducted or not.
Q: Hi. Why does it use incandescent lightbulbs if they don't sell those anymore? Shouldn't it be LED?
A: Hello, the bulb needed would be 120 V,75 W maximum, type E26 lamp. Thank you for your inquiry on our Whirlpool appliances.
