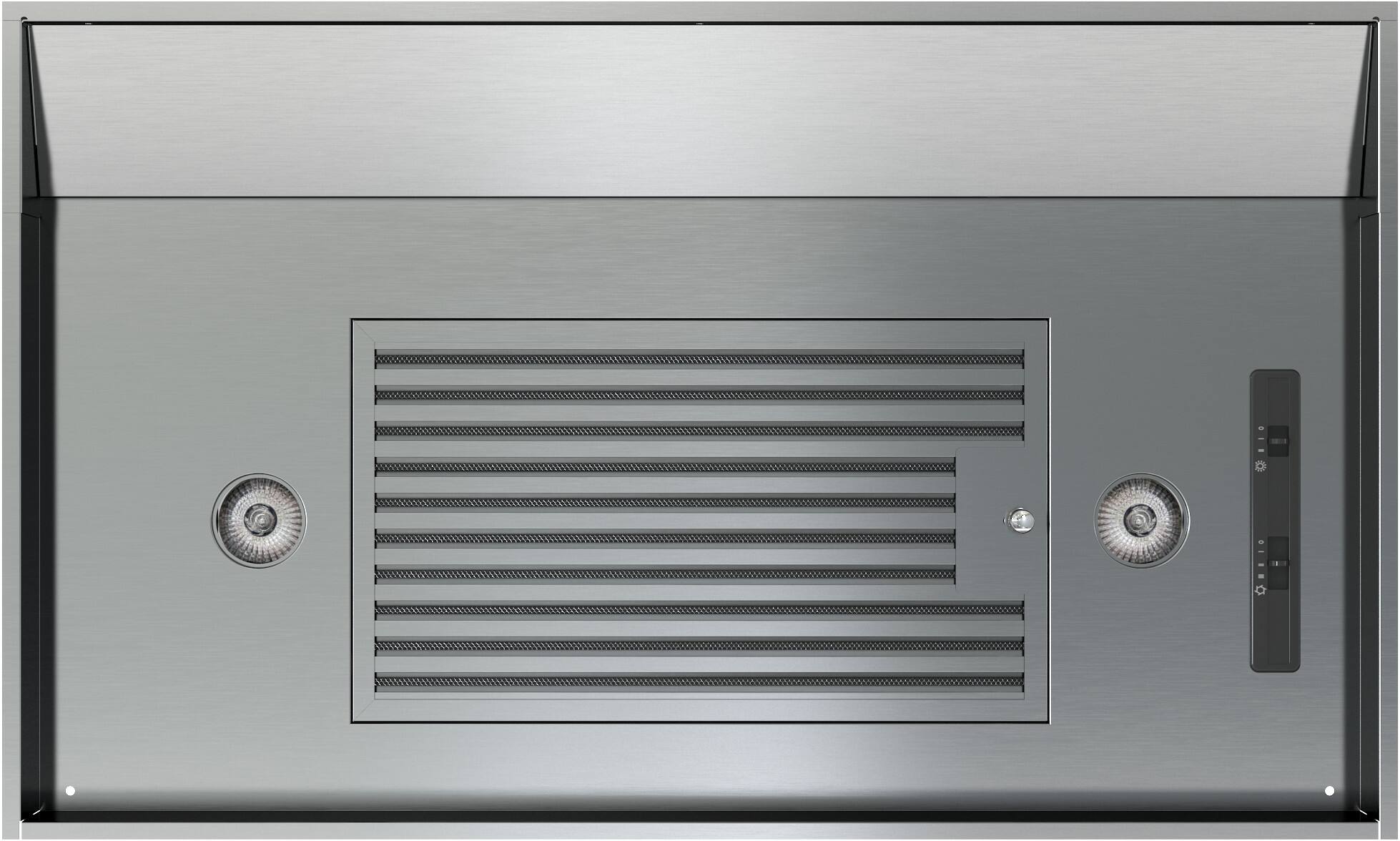

Zephyr - 36 inches - Convertible - Range Hood Insert - Stainless Steel
Model: AK9034AS
SKU: 7692505
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 19.09 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Color Finish: Stainless steel
- General
- Product Name: Vortex 34 in. 390 CFM Insert Range Hood with Halogen Lighting
- Brand: Zephyr
- Model Number: AK9034AS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 19.09 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 34 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 25.7 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 26 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 35 watts
- Performance
- Maximum Operating Sound Level: 5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328002595
The Vortex one-piece liner leads the way with the industry's only adjustable-depth installation. Vortex is designed to extend up to 3-inches towards the front of the custom hood canopy so you can install it in spaces up to 20-1/2″ deep. Add to this its category-leading 390 CFM, optional recirculation kit and its 36-inch mounting height maximum; Vortex stands tall among the rest.
- Hybrid Baffle Filters: Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
Whats Included
- Zephyr Essentials Power Vortex 34" Convertible Range Hood
Product Manuals
Q: i need sizes of cabinet for this apliance thank you
A: Hello, please see the detailed specifications for the Vortex Insert ventilation unit- 34 3/8: wide by 12 15/16" high as it offers adjustable depth: http://docs.zephyronline.com/docs/specs/vortex_specs.pdf Thank you for your inquiry!
