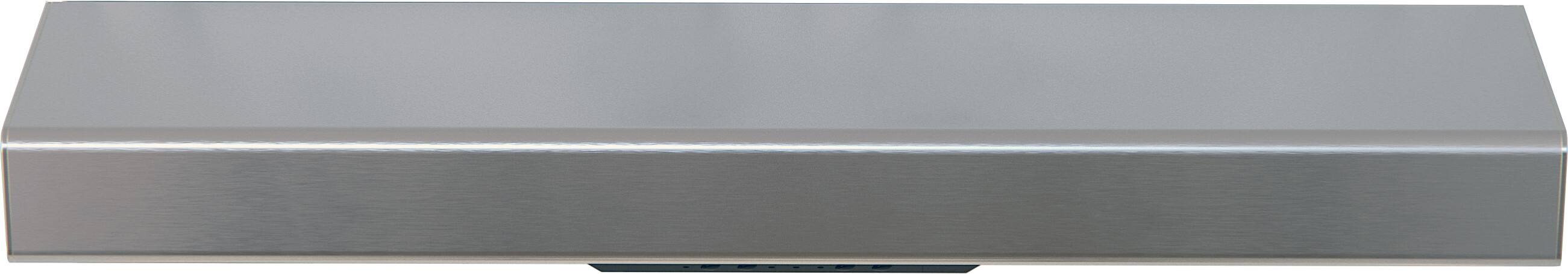

Zephyr - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
- Key Specs
- Product Height: 24.61 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.9375 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Color Finish: Stainless steel
- General
- Product Name: Breeze II 36 in. 400 CFM Under Cabinet Range Hood with LED Light in Stainless Steel
- Brand: Zephyr
- Model Number: AK1236BS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 24.61 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 35.9375 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 21.7 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 5 watts
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 175 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 1.4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328005886
Updated with dual-level BriteStrip™ LED lighting the Breeze II’s modern, clean lines provide a perfect complement to any interior. Equipped with 3-speed electronic controls, 400-CFM blower, convenient dishwasher-safe aluminum filters and an auto delay-off feature that clears the air and powers down after 5 minutes. Available in black, white, stainless steel and black stainless finishes.
- BriteStrip™ LED Lighting: The future just got brighter. BriteStrip™ LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
- Low-Profile Body: Low-profile body for a minimalist appearance.
- Extra-Wide Mesh Filters: High quality mesh filters with an increased width for improved capture and performance.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Multiple Color Options: Multiple colors available to match your kitchen décor.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
Whats Included
- Zephyr Breeze II 36" Externally Vented Range Hood
Product Manuals
A: Hello, The Breeze II is an under cabinet style hood- that is installed under your existing cabinet. It requires a 10X 3 1/4" duct- or you may need to use an adapter if you have a round duct. You can view detailed information and specifications on our web site zephyronline.com and on the Breeze Ii spec page: http://docs.zephyronline.com/docs/specs/breeze2b_spec.pdf You can also view detailed instalation information in the User Manual Guide- pages 11- 17. Thank you for your inquiry! http://docs.zephyronline.com/docs/manuals/breezeb_manual.pdf
Q: Does this range hood (Model: AK1236BS SKU: 5735167) come with dual blower motor or single motor?
A: Hello, The Breeze II comes with a single, 400CFM blower. You may view more details here:http://docs.zephyronline.com/docs/specs/breeze2c_spec.pdf Thank you for your inquiry!
A: Hello, The Breeze II hood is measured in sones. The rating is 1.9- 4.5 on the 3 different speed levels. A sone is a measurement of sound. For example a 1 sone is equated to the silent sound a refrigerator makes- and 4.5 is approximately equivalent to normal conversation on a TV. Thank you for your inquiry!
Q: how is the noise level rated?
A: Hello, The sound is measured and rated in sones. The sone measurement for the Breeze II - with 3 speeds is 1.9- 4.5. Thank you for your inquiry!
Q: What is the height of the hood at the wall? It appears to be taller at the back than the front.
A: Hello, The height of the Breeze II at the back is 5 1/2 " you may view more details here: http://docs.zephyronline.com/docs/specs/breeze2b_spec.pdf Thank you for your inquiry!
A: undefined
A: It has 400 CFM exhaust capacity.
