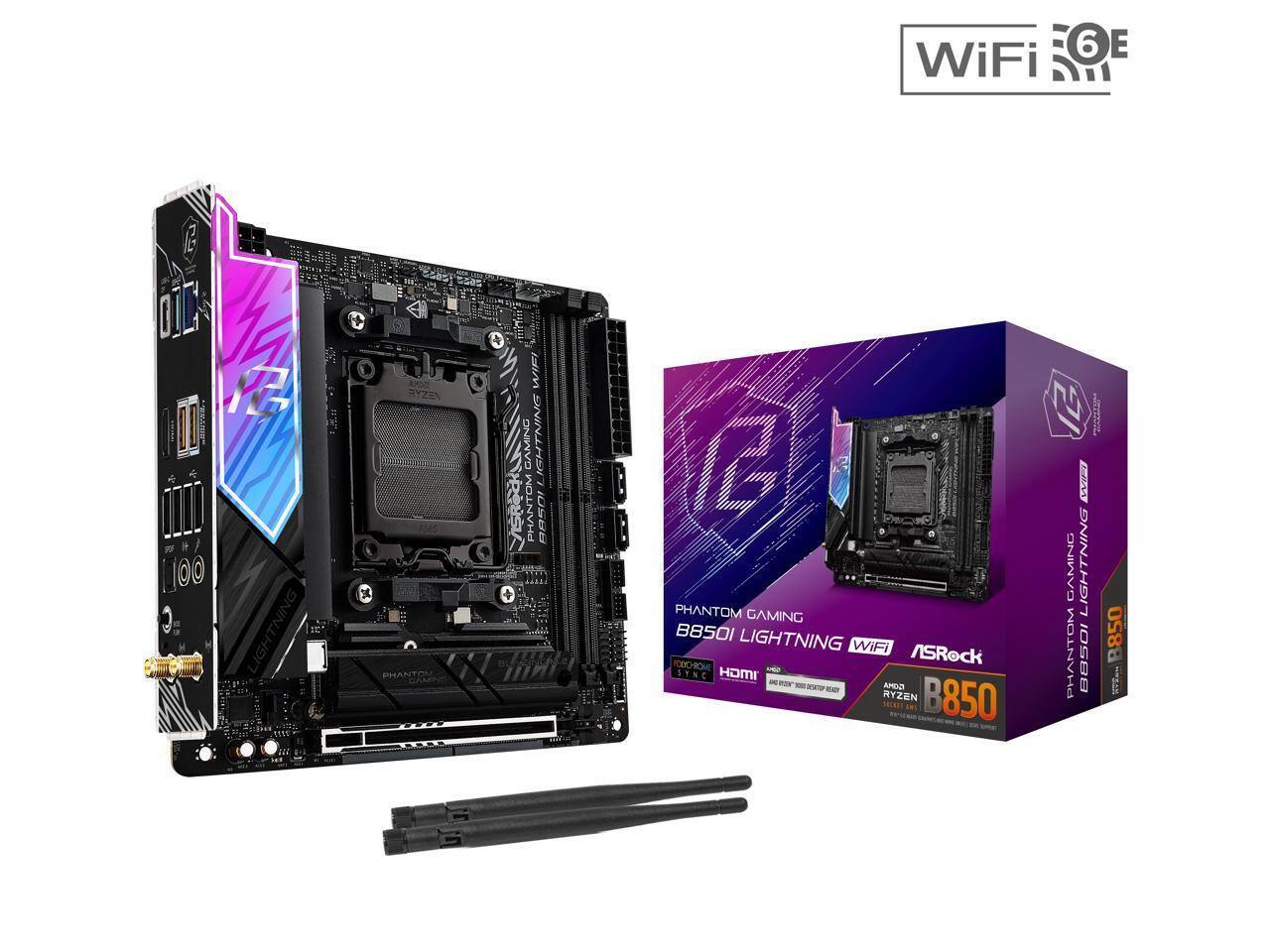

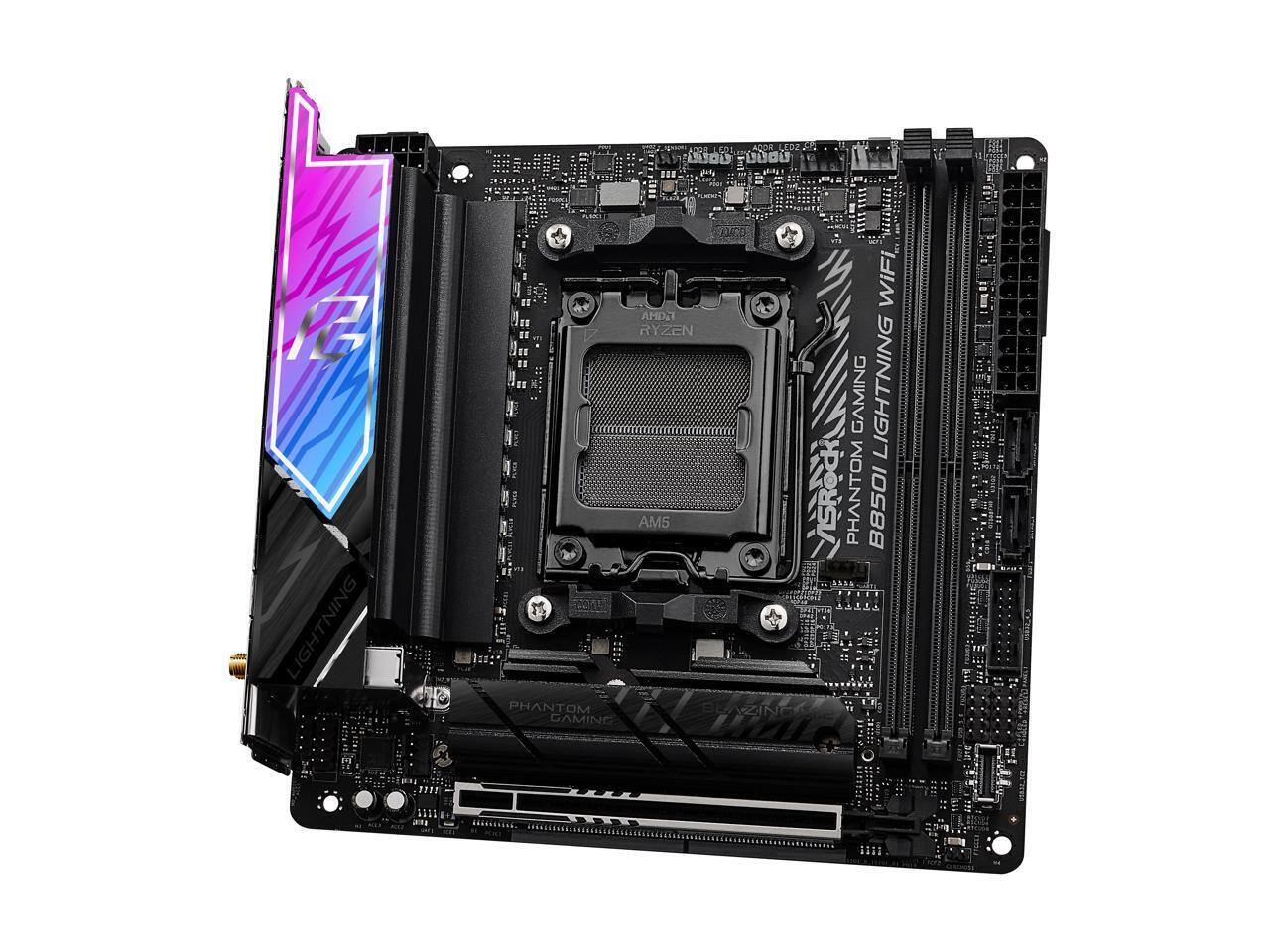

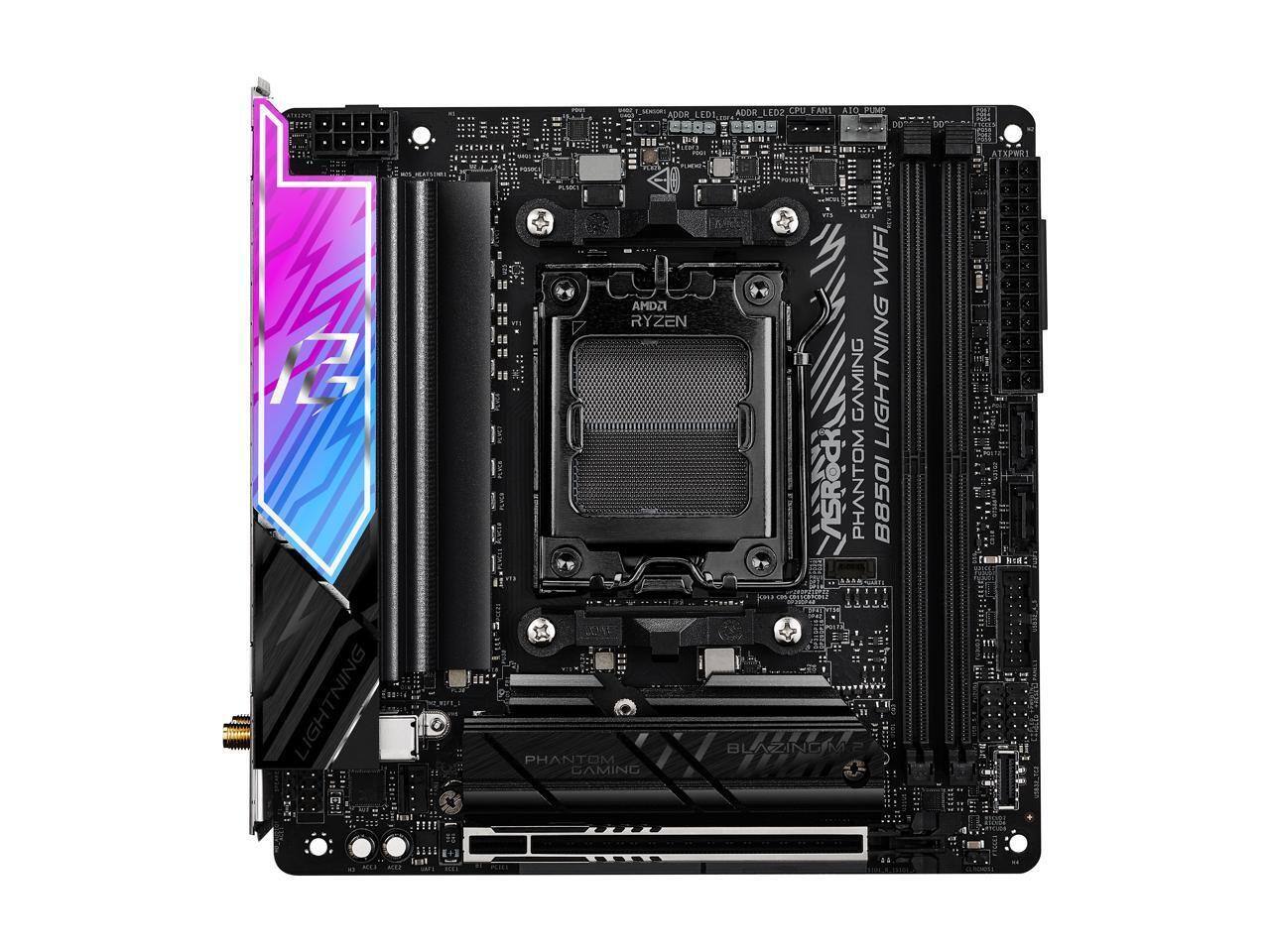

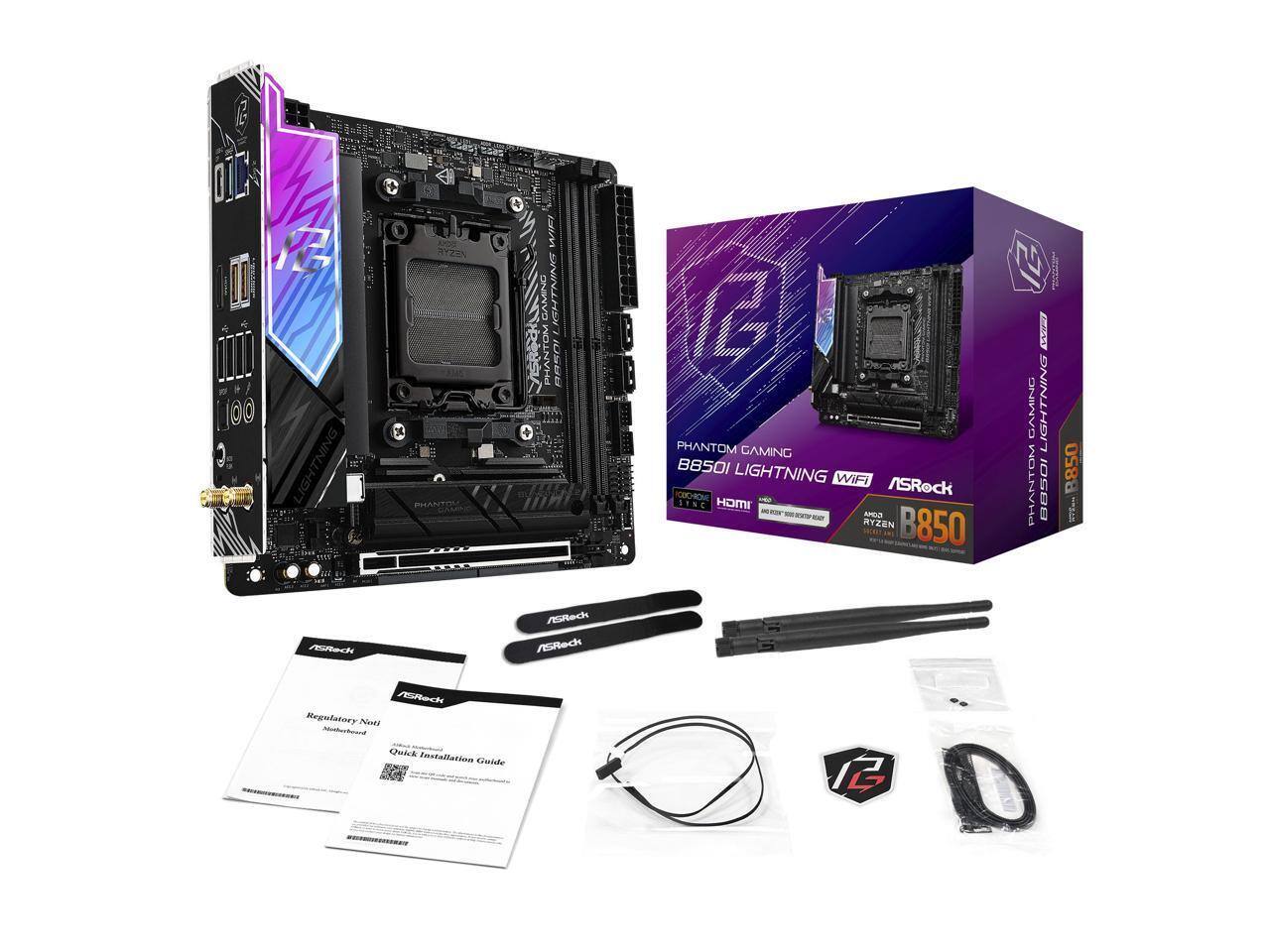

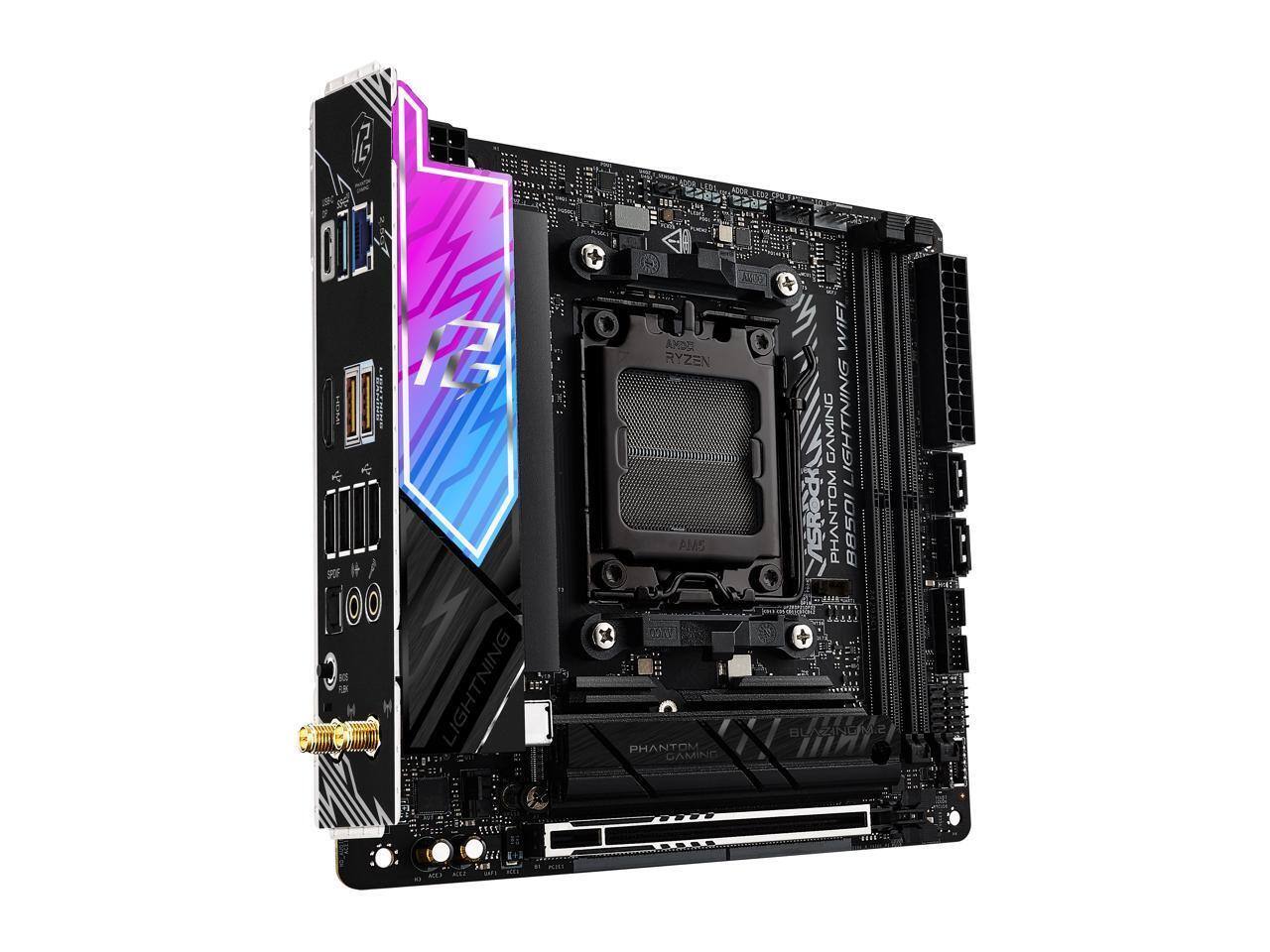

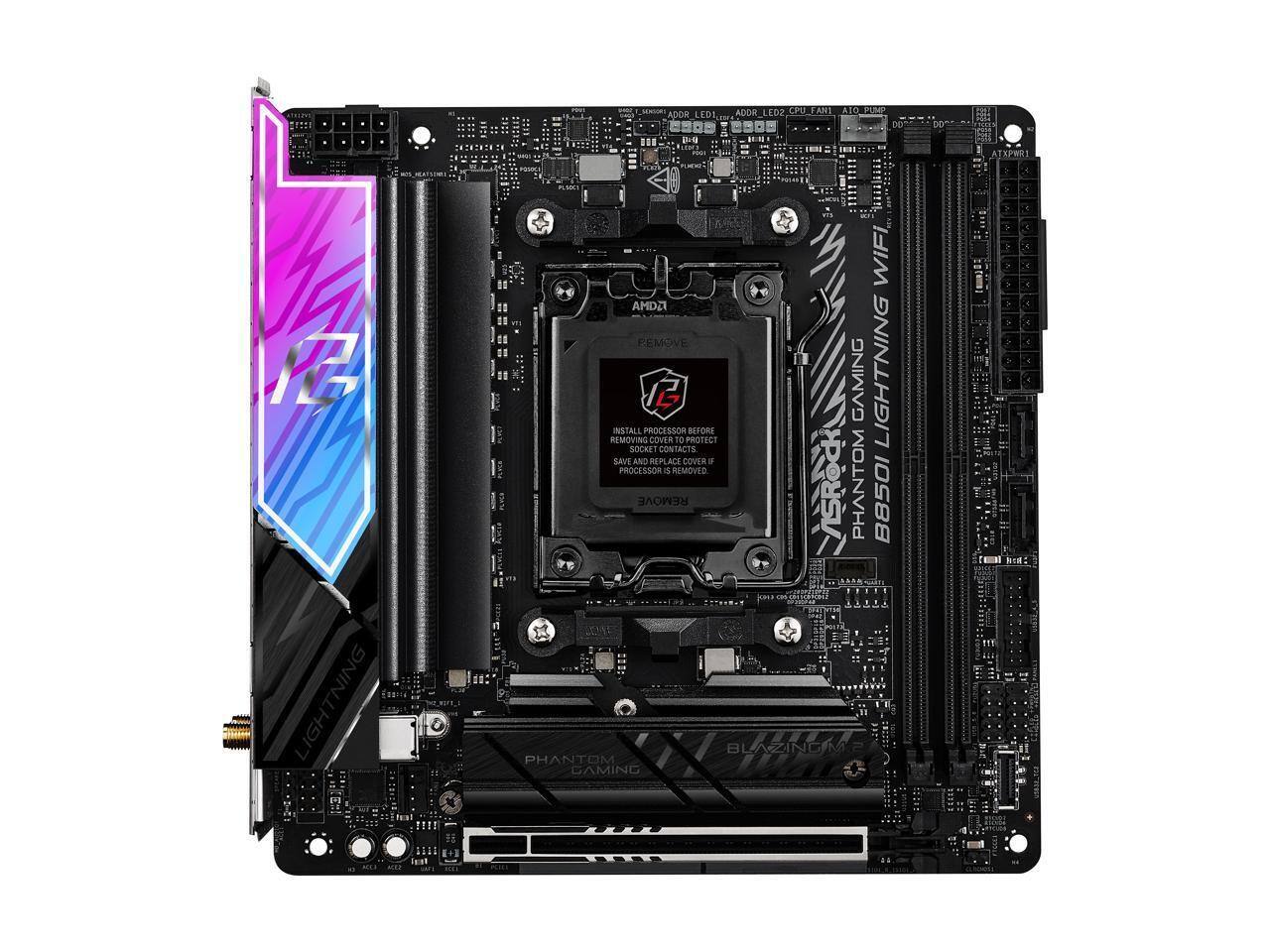

ASRock - B850I WiFi Mini-ITX Motherboard
FREE shipping to
- MSI - MAG A850GL PCIE5 850W ATX 3.1 &PCIe 5.1 Ready Full Modular 80 Plus Gold Gaming Power Supply - Black$119.99$129.99
More Buying Options
Related Item
Specifications
- ChipsetAMD B850Form FactorMini-ITXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots2Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: AMD B850
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASRock
- Product Name: ASRock B850I WiFi Mini-ITX Motherboard
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 5 9000 Series
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 2
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

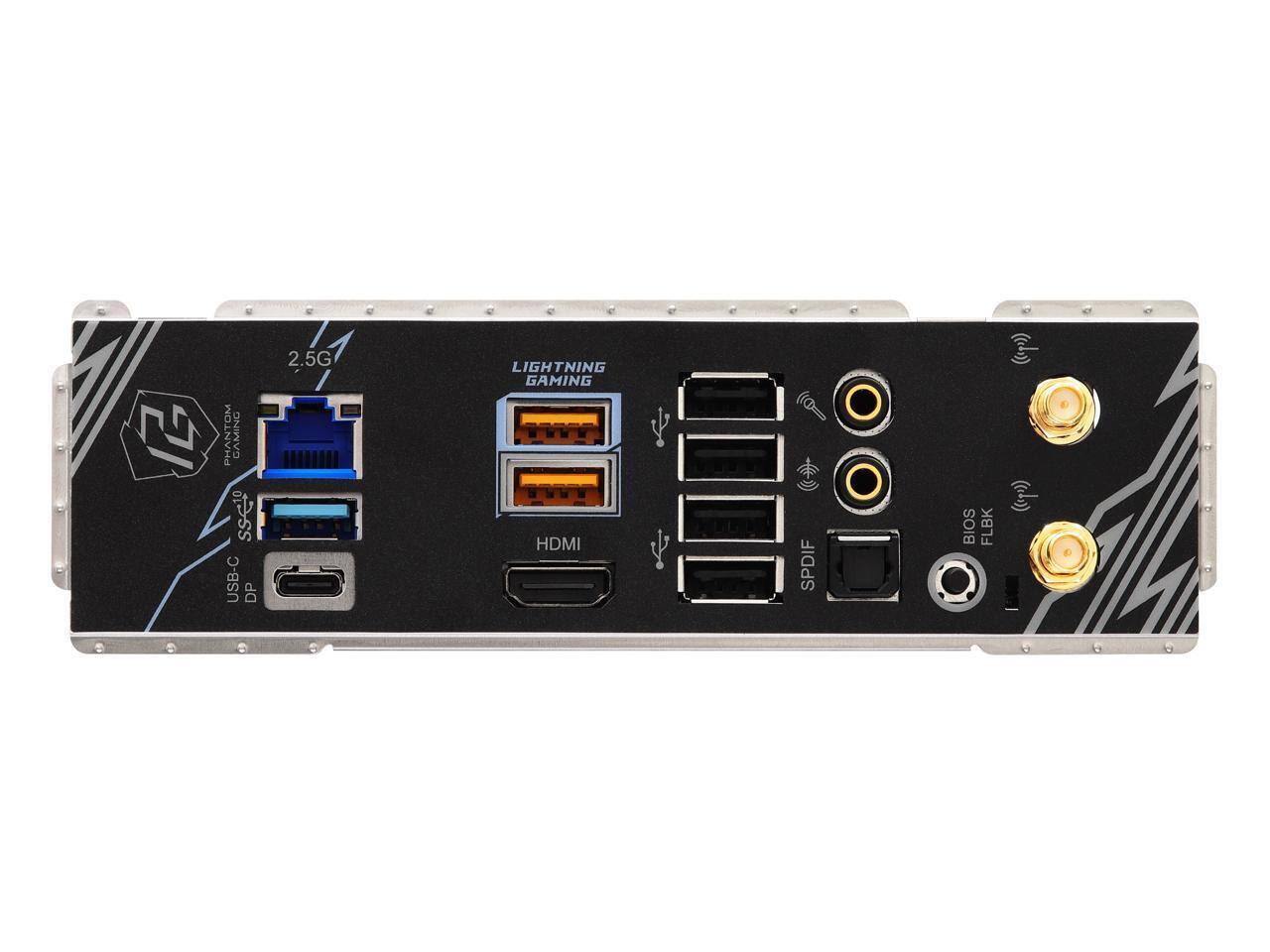

- USB Ports: 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 6.7 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.7 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.4 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8200+ (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 4711581490130
The ASRock B850I WiFi Mini-ITX Motherboard is designed for compact builds, supporting AMD's latest Ryzen 9000, 8000, and 7000 Series processors. It offers advanced connectivity options, including USB4 support (up to 40Gb/s with compatible processors), multiple USB 3.2 Gen2 ports, and Killer 2.5G LAN. The motherboard features dual M.2 slots for high-speed storage, with Blazing M.2 (PCIe Gen5x4) and Hyper M.2 (PCIe Gen4x4) slots. It supports dual-channel DDR5 memory configurations with speeds up to 8200+ (OC) and a maximum capacity of 128GB. The Mini-ITX form factor ensures a compact design without compromising on performance.
- Advanced Connectivity: Includes USB4 support (up to 40Gb/s with selected processors), multiple USB 3.2 Gen2 ports, and Killer 2.5G LAN.
- AMD AM5 Platform Ready: Supports AMD Ryzen 9000, 8000, and 7000 Series processors.
- Dual M.2 Storage: Features Blazing M.2 (PCIe Gen5x4) and Hyper M.2 (PCIe Gen4x4) slots for high-speed storage options.
- Extreme DDR5 Performance: Dual DIMM slots support dual-channel configurations and speeds up to 8200+ (OC).
- Mini-ITX Form Factor: Compact design with premium features for small form factor builds without performance compromise.
Compare similar products
The ASRock B850I WiFi Mini-ITX Motherboard is designed for compact builds, supporting AMD's latest Ryzen 9000, 8000, and 7000 Series processors. It offers advanced connectivity options, including USB4 support (up to 40Gb/s with compatible processors), multiple USB 3.2 Gen2 ports, and Killer 2.5G LAN. The motherboard features dual M.2 slots for high-speed storage, with Blazing M.2 (PCIe Gen5x4) and Hyper M.2 (PCIe Gen4x4) slots. It supports dual-channel DDR5 memory configurations with speeds up to 8200+ (OC) and a maximum capacity of 128GB. The Mini-ITX form factor ensures a compact design without compromising on performance.
The B650I Lightning WiFi is a Mini ITX motherboard designed for AMD Socket AM5 Ryzen processors, supporting dual-channel DDR5 memory up to 7200+ MHz (OC) with a maximum capacity of 128GB. It features 1 PCIe 4.0 x16 slot, 2 SATA3 ports, and 2 M.2 slots (1 Blazing M.2 PCIe Gen5x4 and 1 Hyper M.2 PCIe Gen4x4). Connectivity options include multiple USB ports, 2.5 Gigabit LAN, and Wi-Fi 6E with Bluetooth 5.2 support.
The B850I AORUS PRO WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The Ultra Durable X870I AORUS PRO ICE Gaming Desktop Motherboard is engineered for high-performance computing, featuring the AMD X870 chipset and Socket AM5 compatibility, supporting AMD Ryzen 7000, 8000, and 9000 Series processors. Its Mini ITX form factor is perfect for compact builds, while dual DDR5 memory slots accommodate up to 128 GB of memory at speeds up to 8400 MHz. The PCIe 5.0 x16 slot ensures rapid data transfer for GPUs and expansion cards, and the motherboard includes advanced connectivity options like USB4 Type-C, HDMI 2.1, Wi-Fi 7, and 2.5GbE LAN. Additional features include dual M.2 slots, RAID support, and a comprehensive 5-year warranty.
