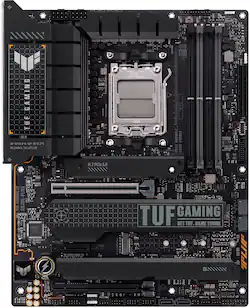

ASUS - TUF GAMING X670E-PLUS WIFI (Socket AM5) AMD X670E ATX DDR5 Wi-Fi 6E Motherboard - Black
Model: TUF GAMING X670E-PLUS WIFI
SKU: 6523727
This item is no longer available in new condition. See similar items below
- Key Specs
- Chipset: AMD X670
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: TUF GAMING X670E-PLUS WIFI
- Product Name: TUF GAMING X670E-PLUS WIFI (Socket AM5) AMD X670E ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2022
- Compatibility
- Chipset: AMD X670
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x4 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin Main Power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 4-pin (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 3 x USB-C 3.2, 8 x USB-A 3.2, 3 x USB-A 2.0 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 1 x Thunderbolt (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 5
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305.05 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 56.16 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 195553905732
ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability.
- Processor Compatibility: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
- Speed (memory speed supported): 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
- Graphics: 1 x DisplayPort / 1 x HDMI port
- Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Expansion slots: AMD Ryzen 7000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot / AMD X670 Chipset - 1 x PCIe 4.0 x16 slot (supports x4 mode) / 1 x PCIe 4.0 x4 slots
- Special Features: ASUS 5X PROTECTION III / ASUS Thermal Solution / ASUS EZ DIY / Aura Sync / Aura RGB header / Addressable Gen 2 headers
- Operating System: Windows 11, Windows 10 64-bit
- Processor Compatibility: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
- Speed (memory speed supported): 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
- Graphics: 1 x DisplayPort / 1 x HDMI port
- Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Expansion slots: AMD Ryzen 7000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot / AMD X670 Chipset - 1 x PCIe 4.0 x16 slot (supports x4 mode) / 1 x PCIe 4.0 x4 slots
- Special Features: ASUS 5X PROTECTION III / ASUS Thermal Solution / ASUS EZ DIY / Aura Sync / Aura RGB header / Addressable Gen 2 headers
- Operating System: Windows 11, Windows 10 64-bit
Q: What kind of audio does this motherboard have?
A: It has Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, this motherboard comes with Wi-Fi 6E connectivity.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 memory modules.
Q: What is the maximum memory capacity supported by this motherboard?
A: The maximum supported memory is 128GB.
Q: How many M.2 slots are available on this motherboard?
A: This motherboard has 4 M.2 slots.
Q: Does this board support DDR4 ram? Or do I need to get DDR 5 for this?
A: No, it only supports DDR5 memory.
A: Windows 11 is listed as a compatibility, not included. Besides, you need to install your OS on a hard drive, not a motherboard.
