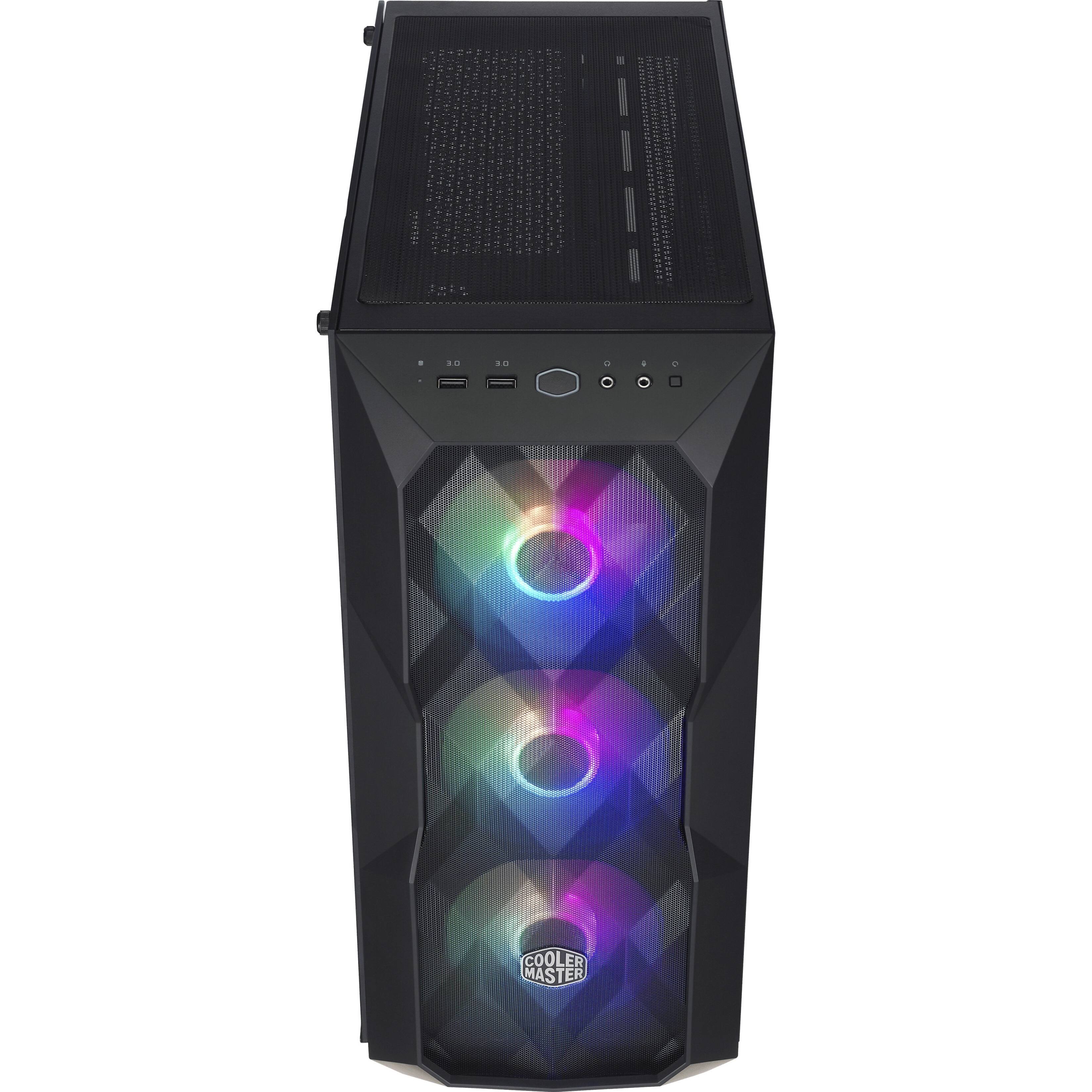

Cooler Master - MasterBox MCB-D500D-KGNN-S01 ATX/SSI CEB/EATX/Micro ATX/Mini ITX Mid-tower Case - Black
Model: MCB-D500D-KGNN-S01
SKU: 6495658
This item is no longer available in new condition. See similar items below
- Key Specs
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX, SSI CEB (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 410 millimeters
- Product Height: 18 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 2/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Side
- Case Material: Steel, Plastic, Glass
- General
- Brand: Cooler Master
- Model Number: MCB-D500D-KGNN-S01
- Product Name: MasterBox MCB-D500D-KGNN-S01 ATX/SSI CEB/EATX/Micro ATX/Mini ITX Mid-tower Case
- Color: Black
- Case Material: Steel, Plastic, Glass
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX, SSI CEB (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 180 millimeters
- Maximum GPU Length: 410 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Front
- Number of USB Ports (Total): 2
- USB Ports: 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 18 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 2/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 245.12 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 165 millimeters
- Number of Fans Supported: 7
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: 140mm / 120mm
- Number of Fans Included: 3
- Radiator Support: 120 / 140 / 240 / 280 / 360mm
- Liquid Cooling Ready: false
- Other
- UPC: 884102067822
The MasterBox TD500 embodies airflow performance in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass.
- Front-panel Ports: Include Front USB, Front Audio In, Front Audio Out for installing peripherals.
- Total Drive Bays: Include 4 expansion drive bays
- 4.72" Fan: Along with a 4.72" fan helps dissipate heat for improved system operation. Supports up to 7 fans for expanded cooling options.
- 7 Expansion Slots: Lets you install a host of expansion cards
- Elegant Look: Black casing color to add a premium look and feel
- Construction: Manufactured with Steel/Plastic/Tempered Glass/Mesh materials for durability
- Front-panel Ports: Include Front USB, Front Audio In, Front Audio Out for installing peripherals.
- Total Drive Bays: Include 4 expansion drive bays
- 4.72" Fan: Along with a 4.72" fan helps dissipate heat for improved system operation. Supports up to 7 fans for expanded cooling options.
- 7 Expansion Slots: Lets you install a host of expansion cards
- Elegant Look: Black casing color to add a premium look and feel
- Construction: Manufactured with Steel/Plastic/Tempered Glass/Mesh materials for durability
Whats Included
- Cooler Master MasterBox TD500 MCB-D500D-KGNN-S01 Computer Case
- ARGB Controller
- Owner's manual
- Cooler Master MasterBox TD500 MCB-D500D-KGNN-S01 Computer Case
- ARGB Controller
- Owner's manual
Product Manuals
Q: What size fan will fit on the back?
A: undefined
A: Yes it does come with three fans mounted behind the front intake mesh and a respective fan + A-RGB controller behind the side panel. The fans are A-RGB but they are not 4-pin PWM fans, as a heads up, nor is the controller compatible with PWM fans, as it’ll use them on DC mode only (which makes them less controllable).
Q: does the case come with the 3 front fans?
A: undefined
