NZXT - N9 X870E AM5 AMD X870E ATX DDR5 Wi-Fi 7 Motherboard with Full-Metal Cover and RGB - Black
Model: N9-X87XT-B1
SKU: 6629594
$329.99
Save $170
Comp. Value: $499.99
or
$27.50/mo.
suggested payments with12-Month Financing
Show me how
Finance OptionsView your offers
Special OffersOn related products
Availability
Order now for pickup on Fri, Dec 12 at
Sold by
CORSAIR - XTM60 High Performance Thermal Paste - Gray$9.99$14.99
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5, DDR5
- General
- Brand: NZXT
- Model Number: N9-X87XT-B1
- Product Name: NZXT - N9 X870E AM5 AMD X870E ATX DDR5 Wi-Fi 7 Motherboard with Full-Metal Cover and RGB
- Color: Black
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 9 8000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Home in S Mode, Windows 11 Pro
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x24 pin, 1x 8+4 pin ATX 12V (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Fan/Cooling System Connector: 1 x 4-pin CPU_FAN connector(1) (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

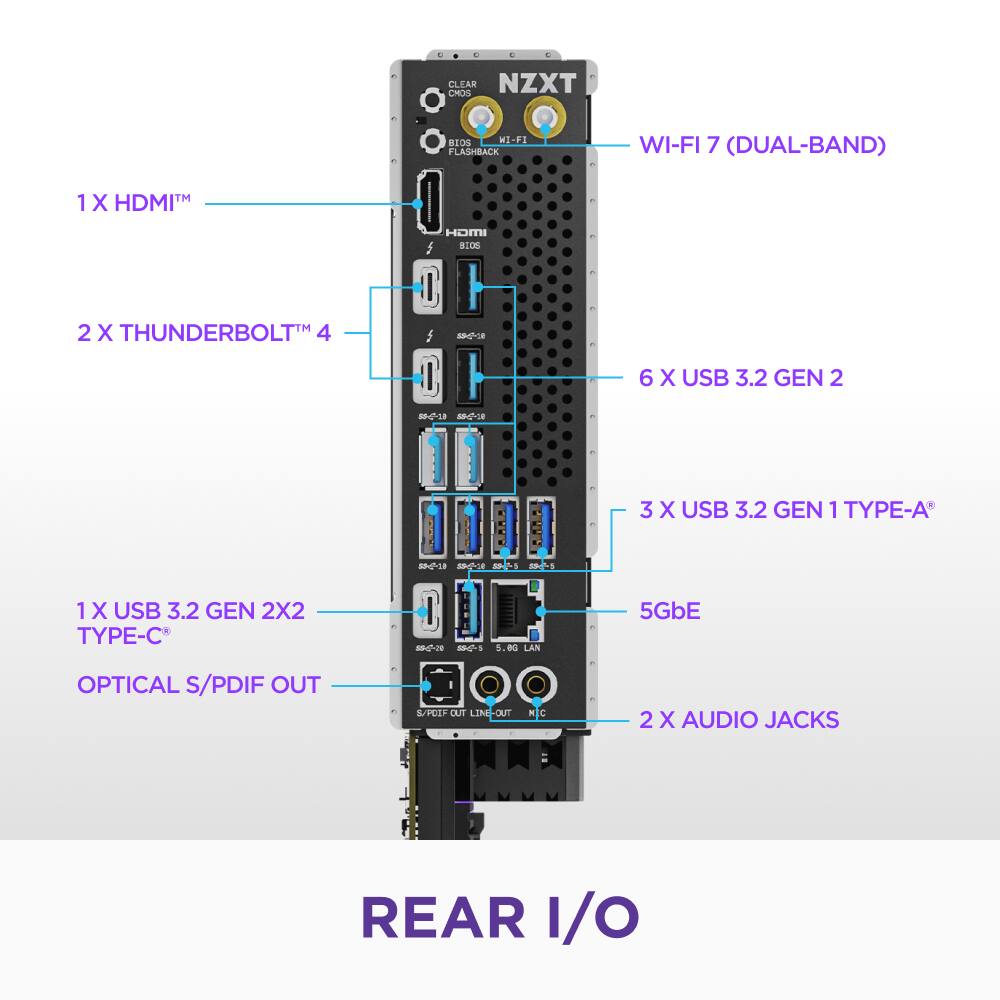

- USB Ports: 5 x USB-A 3.2, 3 x USB-A 3.2, 3 x USB-A 2.0 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 2 x Thunderbolt 4 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x Front panel audio connector
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 65.26 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5, DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 168-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 810074847308

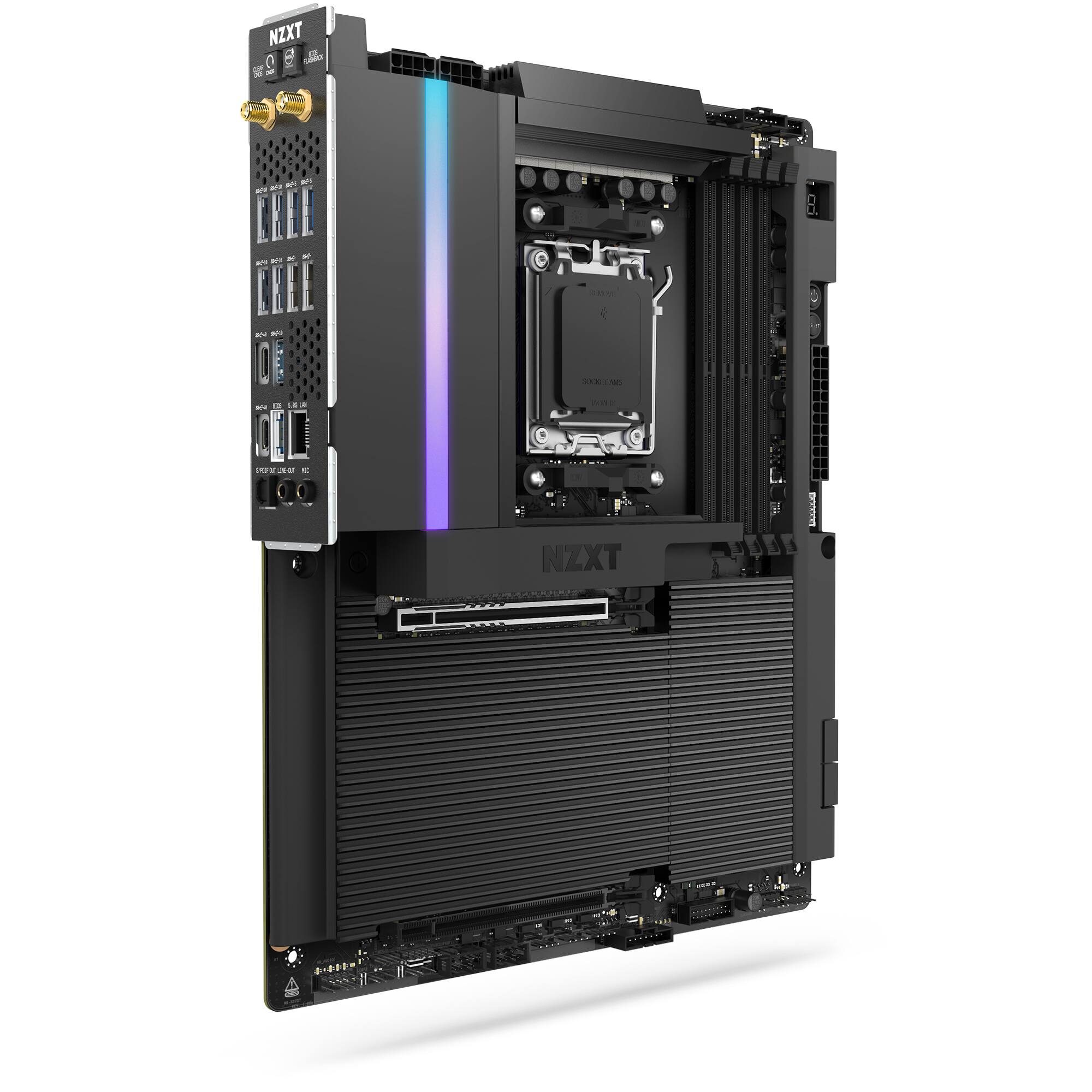

The NZXT N9 X870E is a high-performance ATX gaming motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors with an AM5 socket. It features a 20+2+1 power phase design, advanced thermal solutions, and PCIe 5.0 for next-gen GPUs. With four quick-release M.2 slots, DDR5 support, USB4, Wi-Fi 7, and 5GbE, it delivers ultra-fast storage and seamless networking. A full-metal cover ensures a sleek, modern look along with customizable onboard RGB lighting.
- AMD AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.

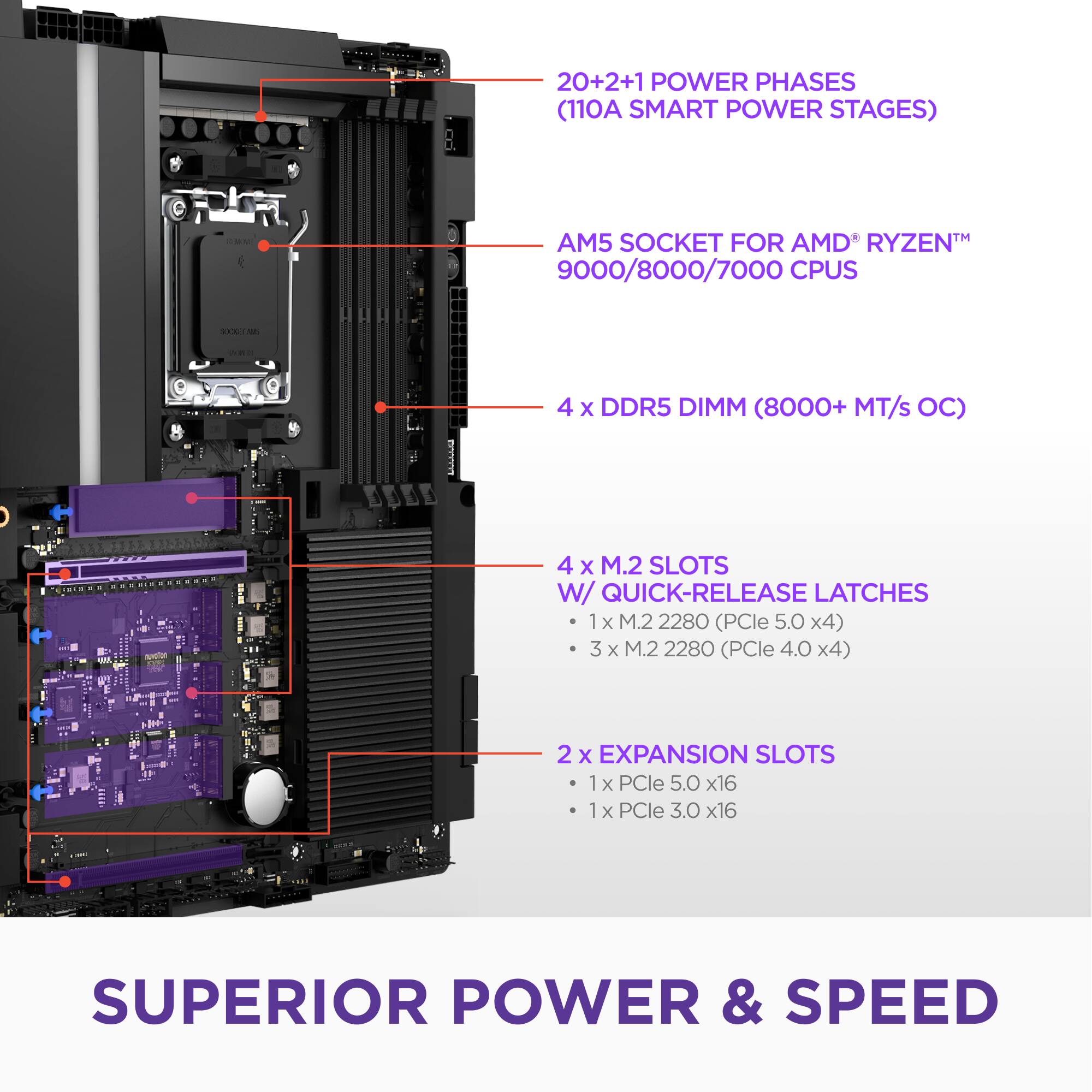

- Superior Power: 20+2+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.

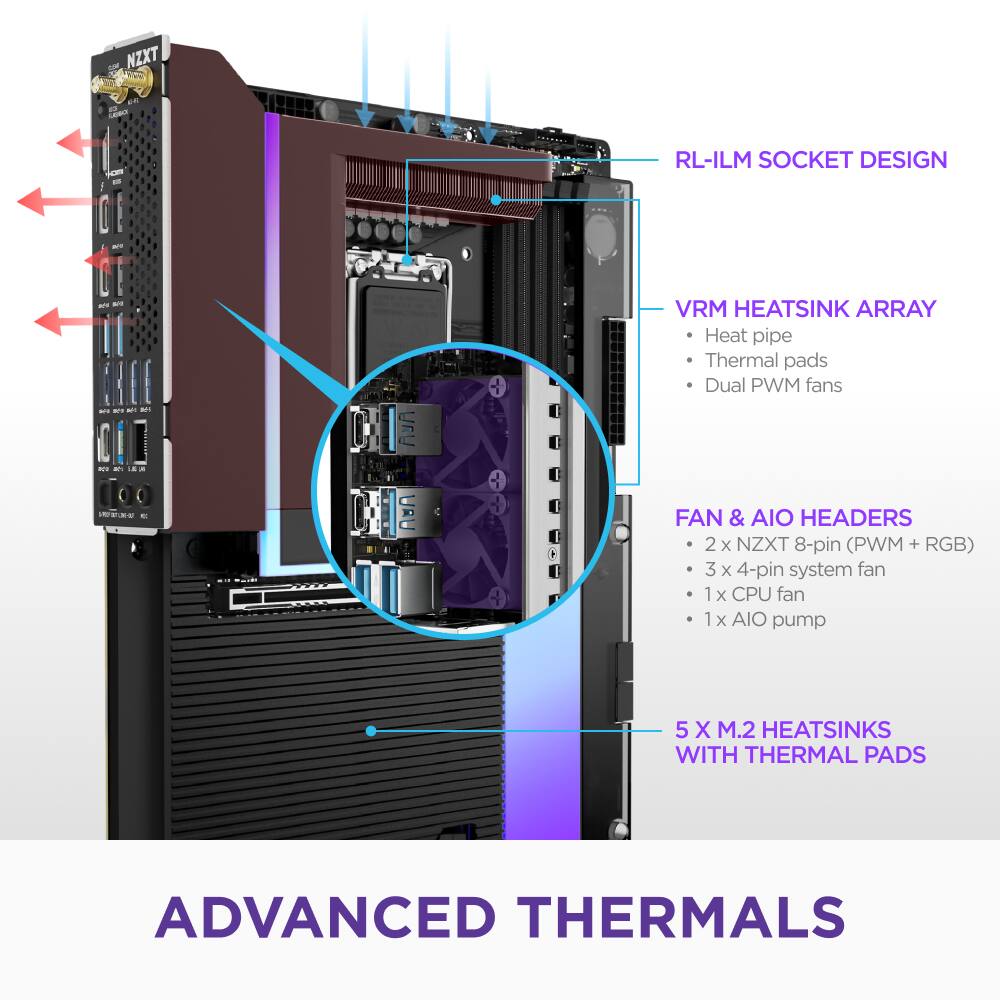

- Advanced Thermals: VRM heatsink array with thermal pads, dual PWM fans, and four dedicated M.2 heatsinks.
- PCIe 5.0 Expansion: One PCIe® 5.0 x16 slot for next-gen GPUs and one PCIe® 3.0 x16 slot for additional high-speed expansion cards.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- High-Speed Storage: Four M.2 slots, including one PCIe® 5.0 and three PCIe® 4.0, deliver ultra-fast storage speeds and load times—all with quick-release latches.
- Next-Gen Connectivity: USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.

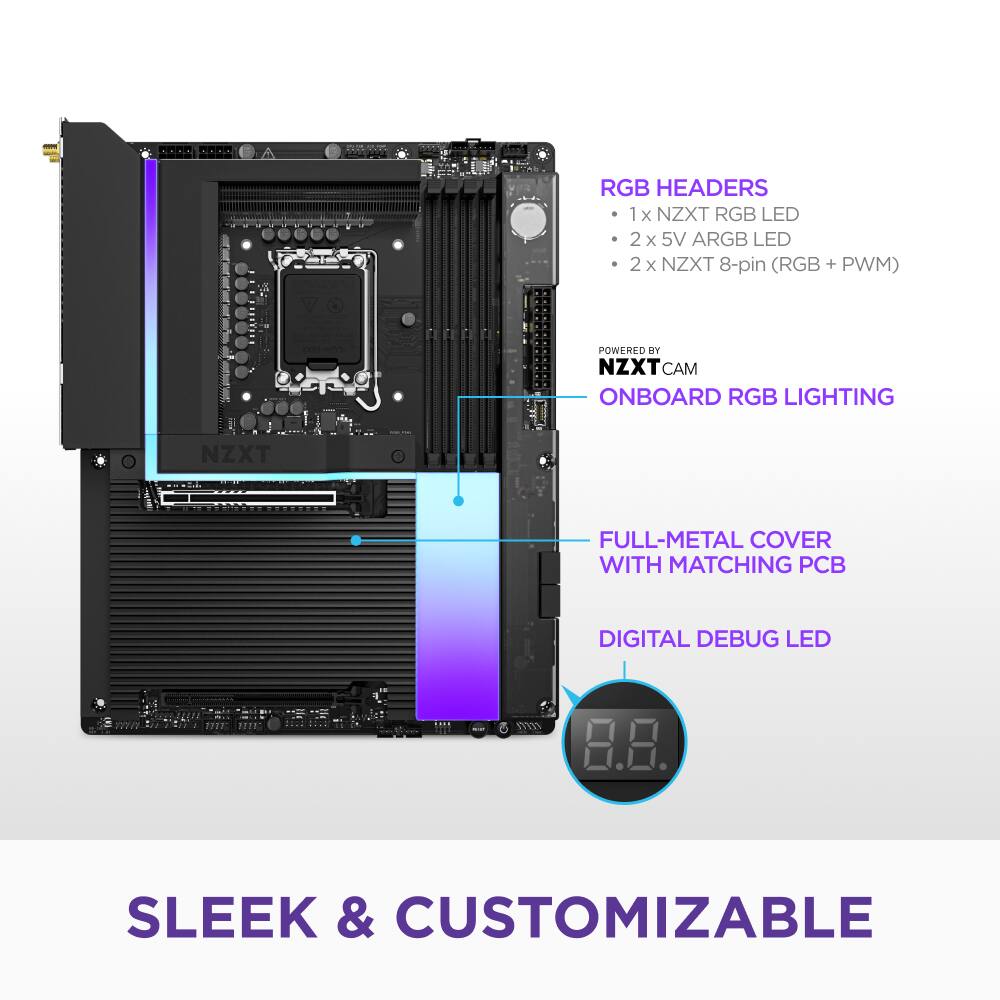

- Sleek and Stylish: A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
- AMD AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.
- Superior Power: 20+2+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.
- Advanced Thermals: VRM heatsink array with thermal pads, dual PWM fans, and four dedicated M.2 heatsinks.
- PCIe 5.0 Expansion: One PCIe® 5.0 x16 slot for next-gen GPUs and one PCIe® 3.0 x16 slot for additional high-speed expansion cards.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- High-Speed Storage: Four M.2 slots, including one PCIe® 5.0 and three PCIe® 4.0, deliver ultra-fast storage speeds and load times—all with quick-release latches.
- Next-Gen Connectivity: USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.
- Sleek and Stylish: A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
