Specifications
- Motherboard Form FactorATX, Mini-ITX, microATX, EATXMaximum GPU Length420 millimetersProduct Height19.53 inchesProduct Width12.91 inchesProduct Depth18.937 inchesWindow Panel(s)Panoramic, Right side, Front
- Key Specs
- Motherboard Form Factor: ATX, Mini-ITX, microATX, EATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 420 millimeters
- Product Height: 19.53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.91 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.937 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Right side, Front
- Case Material: Steel, Tempered glass, Plastic
- General
- Brand: CORSAIR
- Model Number: CC-9011258-WW
- Product Name: 6500X ATX Mid-Tower Dual Chamber PC Case
- Color: White
- Case Material: Steel, Tempered glass, Plastic
- Compatibility
- Motherboard Form Factor: ATX, Mini-ITX, microATX, EATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 225 millimeters
- Maximum GPU Length: 420 millimeters
- Number of Expansion Slots: 8
- Ports
- USB Port Location: Front
- Number of USB Ports (Total): 5
- USB Ports: 1 x USB-C 3.2, 4 x USB-A 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 19.53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.91 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.937 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 523.2 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Right side, Front
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 180 millimeters
- Number of Fans Supported: 10
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Top 3x 120mm, 3x 140mm; Side 3x 120mm; Bottom 3x 120mm, 3x 140mm; Rear 1x 120mm, 1x 140mm
- Number of Fans Included: 0
- Radiator Support: Top 360mm, 280mm, 240m; Side 360mm, 240mm; Bottom 360mm, 280mm, 240mm; Rear 120mm, 140mm
- Warranty
- Warranty - Parts: 2 Year Limited
- Warranty - Labor: None
- Other
- UPC: 840006664703
The CORSAIR 6500X Mid-Tower Dual Chamber PC Case provides a truly unobstructed view of your system behind tempered glass side and front panels, with a dual chamber design for an organized build. Ensure great performance for your system with room for up to 10x 120mm or 7x 140mm fans, and versatile radiator mounting options in the roof, bottom, and side. Compatibility with reverse connection motherboards gives you a cable-free view of your system. Route all your cables and mount up to four storage drives in the second chamber for a clean, picture-perfect build, while a modern front panel I/O including USB 3.2 Gen-2 Type-C offers convenient device access. With tons of features for easy buildability and a wide range of optional accessories available, the 6500X is highly customizable for the most impressive PC builds for years to come.
- Unrivaled looks: The 6500X provides a truly unobstructed view of your system behind tempered glass side and front panels, for a system that’s easy to build and even easier to show off.

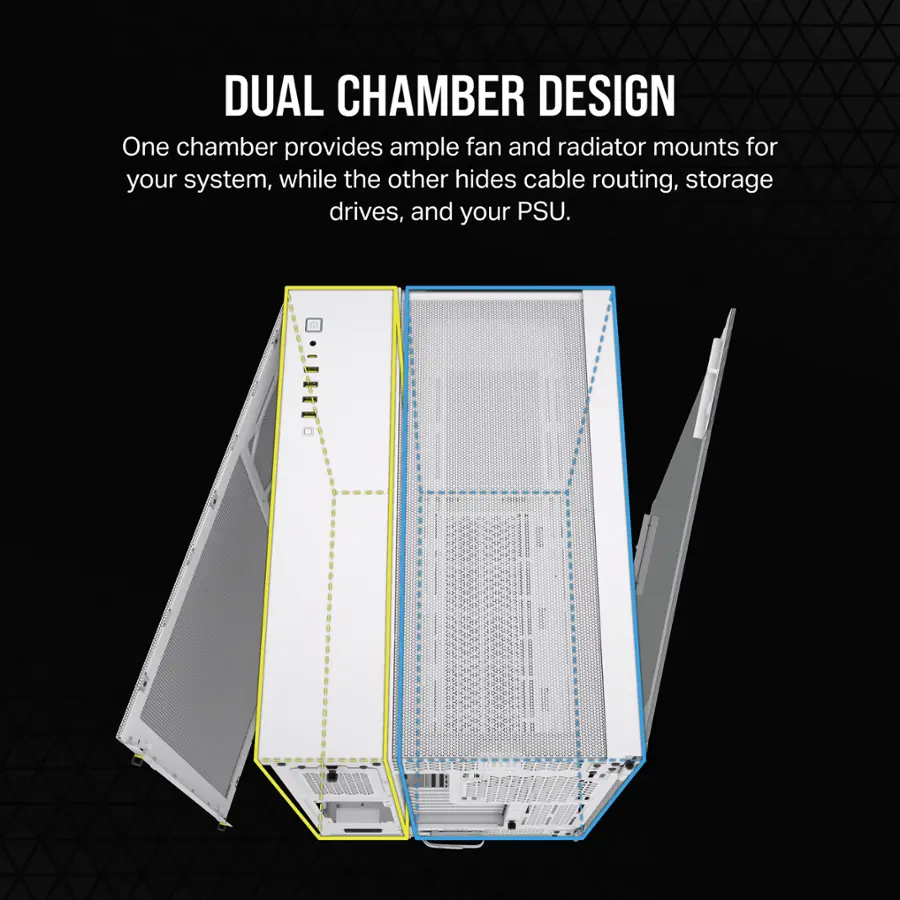

- Dual chamber design: Promotes effective cooling and a cleaner, more organized build with one chamber equipped with a multitude of fan and radiator mounts, and the other providing abundant room for cable routing, drive storage, and PSU installation.
- Wide cooling flexibility: Customize your cooling setup with room for up to 10x 120mm or 7x 140mm fans, including versatile radiator mounting options for up to 360mm in the roof, bottom, and side.
- Take the hassle out of building: Designed with a plethora of features for easy buildability, such as a simple pop-off front panel, fabric pull tabs for the top panel, one-twist Quikturn screws, durable yet flexible doubleshot grommets, and external cutouts for cable management.
- Expansive storage options: Tool-free drive mounts for installing up to 2x 3.5in and 2x 2.5in storage drives to accommodate extensive game and media libraries.
- Compatible with reverse connection motherboards: Validated for use with new ASUS BTF and MSI Project Zero motherboards featuring connections on the back of the board, so your view isn’t spoiled by plugged-in cables.
- A picture-perfect PC: By keeping cables out of the way in the second chamber, it’s exceedingly simple to build a stunning PC worthy of the show floor.

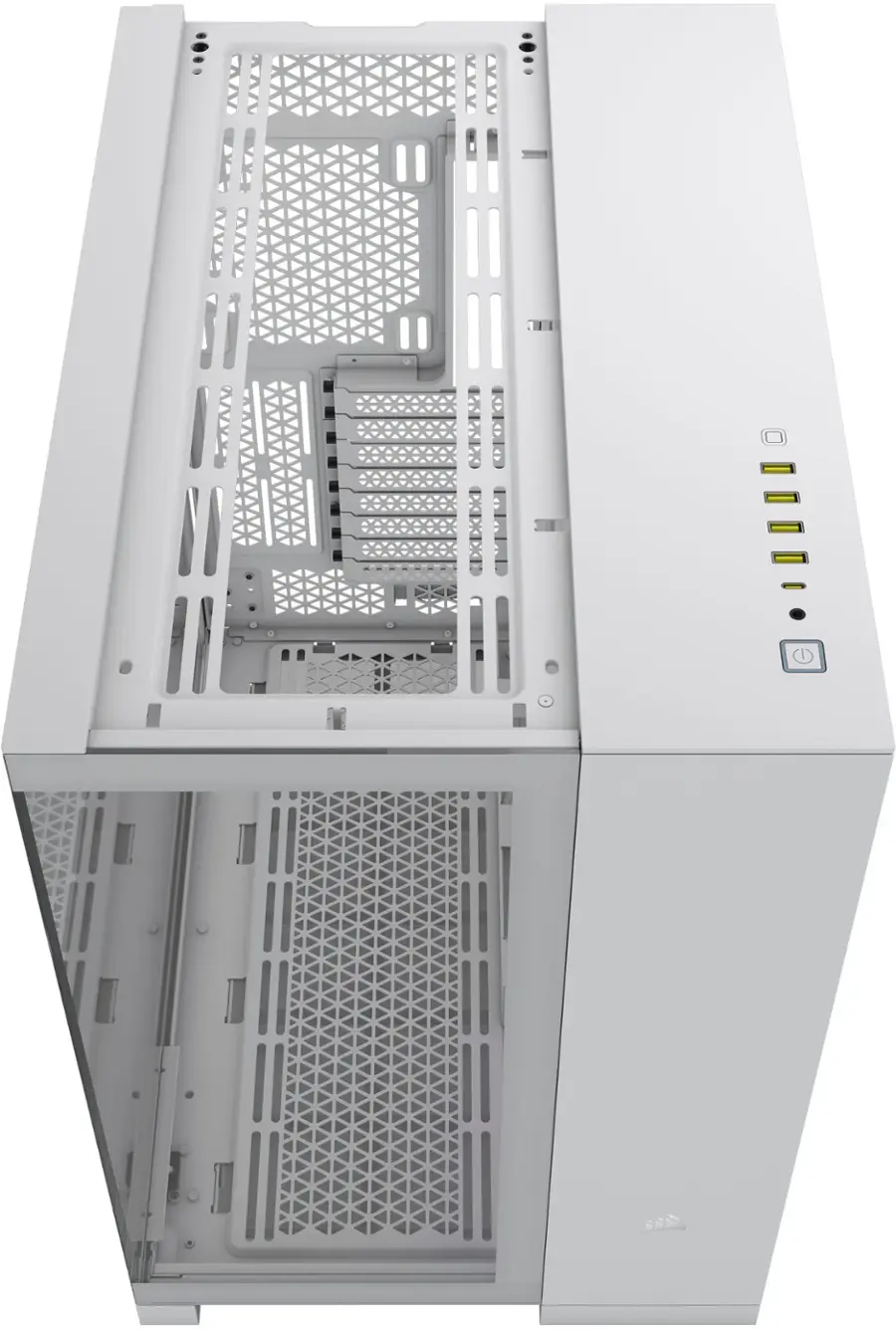

- Modern front panel I/O: A high-speed USB 3.2 Gen-2 Type-C port, 4x USB 3.2 Gen-1 Type-A ports, and a 3.5mm combo audio jack put your devices in easy reach.
- A world of personalization: Customize your build with a range of optional accessories such as alternative material panels, a vertical GPU mount, and more for a truly unique setup.
- Support for iCUE LINK: Cut down on cable clutter when you build with CORSAIR iCUE LINK smart components (sold separately), with built-in iCUE LINK cable hooks to make it even easier to create your dream system.
- Premium build & two-year warranty: Built with durable 3mm-thick steel panels and backed by a two-year warranty for your peace of mind.
Whats Included
- 6500X Mid-Tower Dual Chamber PC Case
- Accessory Box
- User Documentation
Disclaimers
- Power Supply Not Included
A: I am using the same Artic Liquid Freezer III 360 in my case and it fit fine. This case is huge!
Q: Can i fit a Corsair hxi psu and still have room for cable management
A: Yes. You just have to take out the HDD holder above it. If you have old school HDDs still, rip em over to an SSD.
CORSAIR - 6500X ATX Mid-Tower Dual Chamber PC Case - White
Compare similar products
$179.99
The CORSAIR 6500X Mid-Tower Dual Chamber PC Case provides a truly unobstructed view of your system behind tempered glass side and front panels, with a dual chamber design for an organized build. Ensure great performance for your system with room for up to 10x 120mm or 7x 140mm fans, and versatile radiator mounting options in the roof, bottom, and side. Compatibility with reverse connection motherboards gives you a cable-free view of your system. Route all your cables and mount up to four storage drives in the second chamber for a clean, picture-perfect build, while a modern front panel I/O including USB 3.2 Gen-2 Type-C offers convenient device access. With tons of features for easy buildability and a wide range of optional accessories available, the 6500X is highly customizable for the most impressive PC builds for years to come.
$94.99
The CORSAIR 3500X ARGB Mid-Tower Glass PC Case is your gateway to a superior PC build with easy lighting, combining builder-friendly features with a stunning wraparound tempered glass aesthetic. Three pre-installed RS120 ARGB fans deliver high cooling performance and simple motherboard lighting control. Multiple side, roof, and bottom fan mounting options ensure that even high-performance components stay cool. The 3500X ARGB’s spacious interior will fit most large graphics cards and CPU coolers, with multiple radiators up to 360mm to support liquid-cooled builds. Compatibility with ASUS BTF and MSI Project Zero reverse connection motherboards give you a cable-free view of your PC.
$179.99
The CORSAIR 6500X Mid-Tower Dual Chamber PC Case provides a truly unobstructed view of your system behind tempered glass side and front panels, with a dual chamber design for an organized build. Ensure great performance for your system with room for up to 10x 120mm or 7x 140mm fans, and versatile radiator mounting options in the roof, bottom, and side. Compatibility with reverse connection motherboards gives you a cable-free view of your system. Route all your cables and mount up to four storage drives in the second chamber for a clean, picture-perfect build, while a modern front panel I/O including USB 3.2 Gen-2 Type-C offers convenient device access. With tons of features for easy buildability and a wide range of optional accessories available, the 6500X is highly customizable for the most impressive PC builds for years to come.
$164.99
The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring a ten fan capacity and numerous 360mm radiator mounting options.
| Pros for CORSAIR - 6500X ATX Mid-Tower Dual Chamber PC Case - White | |||
|---|---|---|---|
| Clean look, Design, Airflow | Spacious, Cable management, Airflow, Design, Easy to build in | Clean look, Design, Airflow | Airflow, Spacious, Cable management, Design, Easy to build |
| Cons for CORSAIR - 6500X ATX Mid-Tower Dual Chamber PC Case - White | |||
| Hdd holder placement | Loud fans, Defective, Nightmare, Rgb control | Hdd holder placement | Fans, No rgb fans, Noise, Graphics card compatibility |
