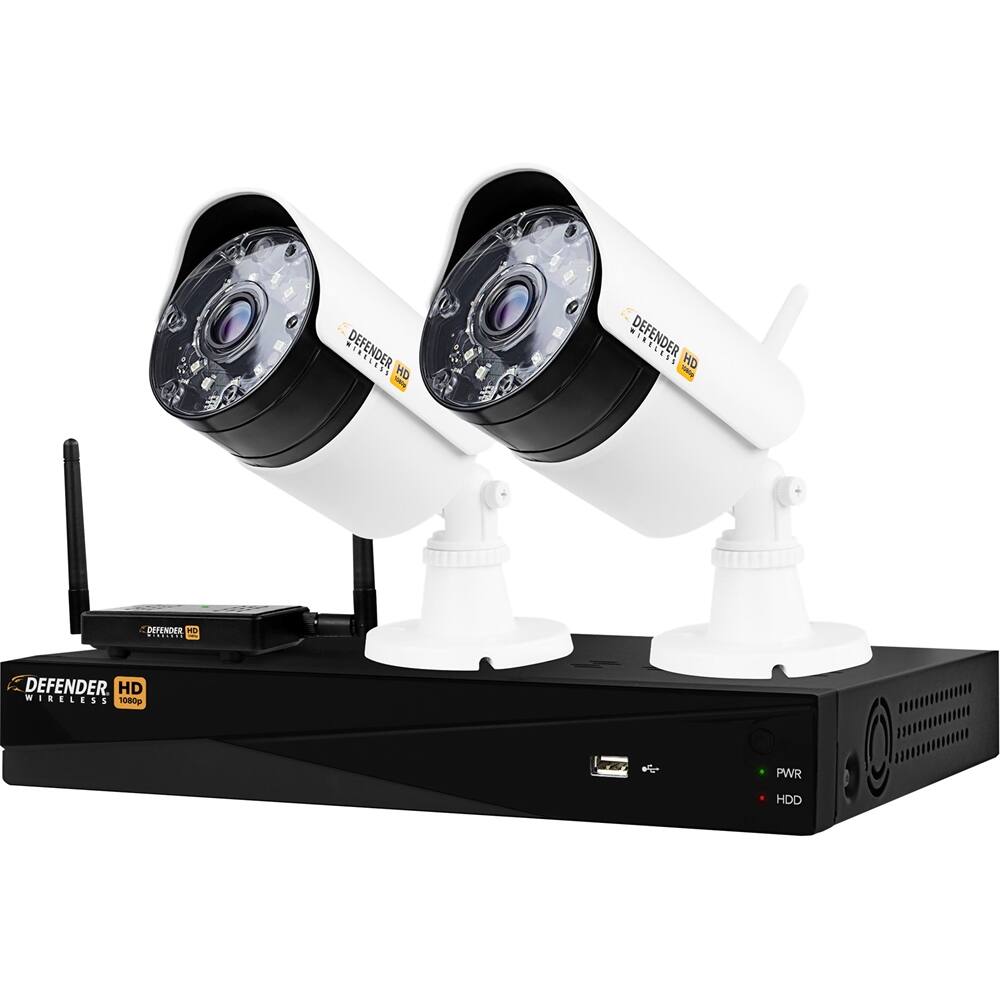

Defender - 4-Channel, 2-Camera Indoor/Outdoor Wireless 1080p 1TB DVR Security System
- Key Specs
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 2
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Number Of Channels: 4
- Recording Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage Type: DVR
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 104 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- General
- Product Name: 4-Channel, 2-Camera Indoor/Outdoor Wireless 1080p 1TB DVR Security System
- Brand: Defender
- Model Number: WHD1T4B2
- Camera
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 100 feet
- Number Of Cameras Included: 2
- Number Of Cameras Supported: 4
- Frame Rate: 10 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 12 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Infrared Distance: 130 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Infrared Cut Off Filter: true (Often referred to as an IR or heat-absorbing filter, this camera feature is designed to block infrared light during the day to produce optimally lit images, while still allowing for night vision capabilities in low light.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Defender WHDCB1
- Operating System Compatibility: Android, Apple iOS
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Connectivity
- Camera Connectivity: Wireless (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Records Audio: false
- Number Of Channels: 4
- Video Compression Type: H.264
- Recording Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- Storage Type: DVR
- DVR Storage Capacity: 1000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 8000 gigabytes
- Performance
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 104 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- Mobile Notifications: true
- Auto-On Detection: Motion
- Dimensions
- Camera Height: 3.15 inches
- Camera Width: 3.15 inches
- Camera Depth: 8.03 inches
- DVR Height: 1.85 inches
- DVR Width: 9.86 inches
- DVR Depth: 8.54 inches
- DVR Cord Length: 3.3 feet
- Output
- DVR Output(s): HDMI, VGA, USB
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: true
- Cable(s) Included: true
- Other
- UPC: 061783266953
Easily adapt your security system to your needs with this Defender wireless four-channel security system. It includes two bullet cameras so that you can cover front and back, and because it has four channels, you can add another two units to it. A 1TB hard drive lets you store days of video on this Defender wireless four-channel security system.
- Motion-activated design: Automatically records once motion is detected, then sends you alarm notifications.
- Monitor your property with 2 cameras: Includes Defender WHDCB1 cameras for recording Full HD video for widescreen viewing.
- View and record from up to 4 channels: Add up to 2 more cameras of your choice for 4-channel simultaneous monitoring.
- Set and forget with hard drive storage: Record continuously from 4 channels with a 1TB hard drive.
- High-resolution technology captures superior footage: 1080p resolution cameras use CMOS image sensors to record larger, clearer full-screen video.
- Powerful night vision up to 130 ft.: Allows you to monitor your home or business, even in dim lighting, automatically switching the picture to black-and-white in low-light conditions.
- Viewing angle up to 70°: Expertly captures a wide angle of your property for exceptional security at all times.
- Durable camera housing: Included cameras are made of an ultra-lightweight polycarbonate vandal resistant housing and IP65 rated for weather resistance.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
- Remote viewing with the free Defender’s app: Lets you get the live stream from your home. Also, the app grants an access to recorded footage.
- ClearVu Smart Signal adaptive technology: Uses FHSS (Frequency Hopping Spread Spectrum) to minimize signal interference and provide a reliable, uninterrupted viewing experience without disrupting your Wi-Fi network.
- Digital wireless technology: Allows you to reach those hard to reach areas like the garage, shed or parking lot.
- Flexible recording options: Allow you to monitor continuously, enable motion detection or tailor a schedule to fit your lifestyle.
- Mountable camera design: For flexible placement option.
Whats Included
- Defender 4-Channel, 2-Camera Indoor/Outdoor Wireless 1080p 1TB DVR Security System
- Wireless receiver
- HDMI cable (3.3')
- DVR power supply
- Camera power supply (2 pcs)
- Ethernet cable (3.3')
- USB mouse
- IR remote control (with batteries)
- Window warning stickers (4 pcs)
- Owner's manual
A: Thank you for your question tball. While the cameras do require a powered wall outlet, they are wireless in that you would not need to run wires from the DVR to the cameras, which in some cases could take hundreds of feet of wiring run through attics, along eaves and through walls.
A: Thank you for your question. The power cords are a total of 24 feet. While we don't sell extensions, you can use a household extension cable if needed. Please keep in mind that the power supply for the camera should be indoors.
A: Great question JT. At this time there is no plan for a battery operated version. Continuous surveillance can be very draining on batteries and would likely result in many changes per month. We appreciate your suggestions and hope that we can one day run cameras in this way.
Q: can i hook up a monitor to view all cameras
A: Great question patjohn, The DVR will accept an HDMI or VGA connection so you can view all of your cameras at the same time, or one at a time.
A: Great question! There are no fees or surprises to use our remote access features! All you need is a wired internet connection to the DVR and our free (no ads!) Defender HD app on your smartphone to view your DVR anywhere you have mobile service or Wi-Fi.
A: Great question Wifiwanderer. Available playback speeds are 2x 4x and 8x forward and reverse. Cameras can be viewed single or four camera splitscreen. A digital zoom option is available to expand a selected area of your choice.
Q: How far away from the base is too far for the cameras?
A: Great questions Matthew, the transmission range for the Wireless HD system is 200 m with clear line of sight. Thank you for considering Defender to give you the peace of mind you deserve!
Q: Does the system need WiFi to work or only for live viewing?
A: Great question DJ! Our wireless cameras do not need a Wi-Fi connection to record or connect to the DVR. If you wish to add the DVR to your network for smartphone viewing, it will need to be connected to your router with an Ethernet cable no longer than 30 feet.
