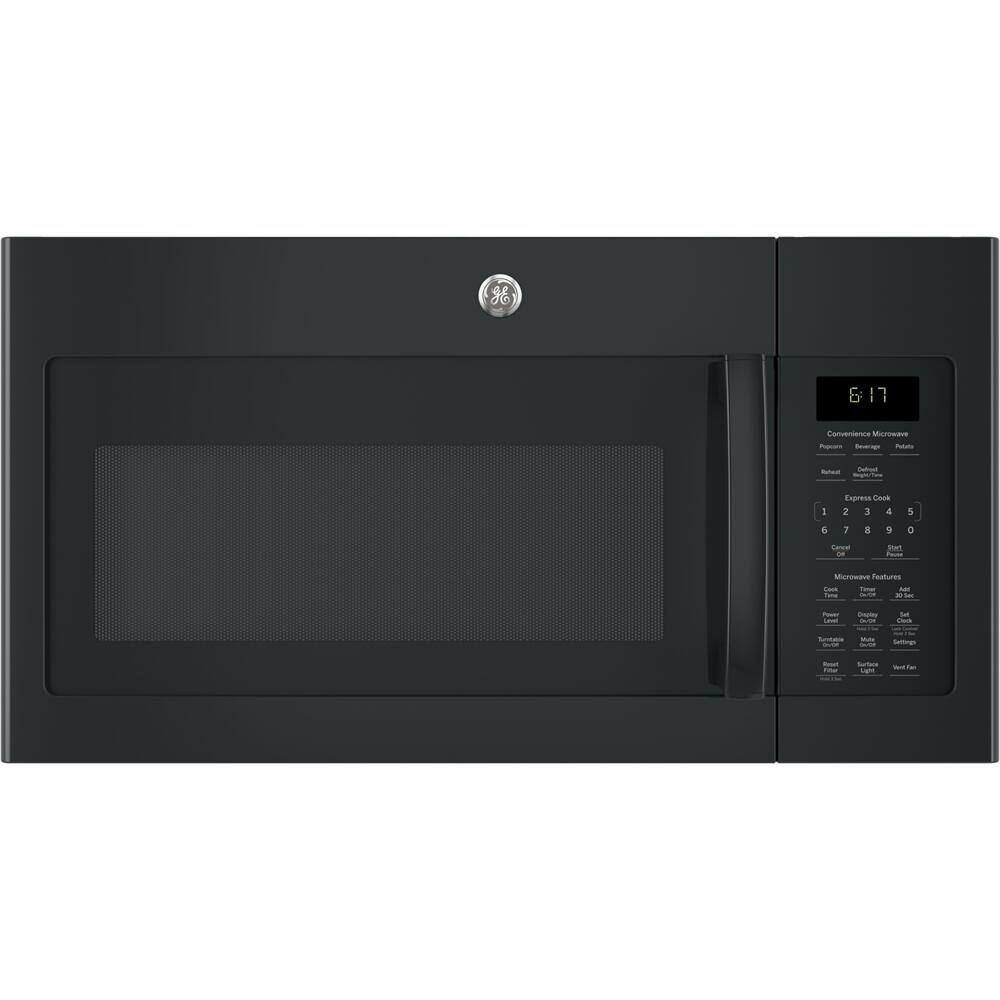

GE - 1.7 Cu. Ft. Over-the-Range Microwave
- Key Specs
- Product Height: 16 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 11 1/2 inches
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Color Finish: Black
- General
- Product Name: 1.7 Cu. Ft. Over-the-Range Microwave
- Brand: GE
- Model Number: JVM6172DKBB
- Color Finish: Black
- Dimensions
- Product Height: 16 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 51 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 16 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.7 cubic feet
- Microwave Size: Full-size
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: false
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 11 1/2 inches
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LCD
- Number of Power Levels: 10
- Turntable On/Off Option: true
- Filter Info
- Removable Filter: true
- Ventilation
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear, Top
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 084691818465
Use this GE over-the-range microwave oven to defrost dinner and then cook quickly. The one-touch convenience controls offer easy heating a variety of often-heated items. A recessed turntable assures even results, and sensor controls provide effortless cooking. This GE over-the-range microwave oven has a two-speed fan to keep the air clear in your kitchen.
- 1.7 cu. ft. capacity: 1000 Watts (IEC-705 test procedure)
- Convenience cooking controls: Operating made quick and easy
- "Add 30 seconds" button: Add 30 seconds of microwave cooking time
- Weight and time defrost: Simply enter the weight of the food, and the oven automatically sets the optimal defrosting time and power level or set your desired time for defrosting
- Recessed turntable with on/off: Controls turntable operation
- Two-speed, 300-CFM venting system: Removes smoke, steam and odors
- 10 power levels: Multiple power levels offer cooking flexibility
Whats Included
- GE 1.7 Cu. Ft. Over-the-Range Microwave
- Turntable
- Owner's manual
Product Manuals
Q: Is there a way to lower the brightness of the clock on the microwave display
A: I had the same issue. The display on my HB microwave was so bright it lit up the room! I tried to find a display adjustment, but it was nonexistent. So, I took a small piece of painters' tape and simply covered that panel. I can see what is says but it no longer blinds me by the light!
A: No, this unit does not have sensor cooking.
Q: Does this model vent through the top?
A: Hi Susan- The microwave is shipped from the factory to vent outdoors out the top (vertically), but can also be vented out the rear (horizontally) or recirculating (non-vent indoors). Recirculating Charcoal Filter JX81J is included for recirculating vent option. Check out the Installation Instructions online for complete details: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-40765.pdf - Thanks for considering GE. Keep in touch! SUE@GEA
Q: Does this microwave include a light underneath?
A: Hi UncleCrusty- Yes, the microwave is equipped with Halogen Cooktop Lighting (Bright/Night/Off) and 2-Speed, 300-CFM Exhaust Fan to remove smoke, steam and odors. Check out our double-oven ranges that allow you to cook two different dishes at two different temperatures at the same time- GE® 30" Free-Standing Electric Double Oven Convection Range JB860DJBB (JGB860DEJBB Gas). Thanks for choosing GE. Enjoy! SUE@GEA
A: Hi Rick- We certainly appreciate your loyalty! All 30" over-the-range microwaves are approximately the same width, and are designed to fit into a 30" wide cabinet opening. Each microwave comes with the mounting hardware (mounting bracket, screws, exhaust adapter), top and rear templates, and installation instructions needed to make installation a simple process. This makes choosing a replacement microwave easy. NOTE: When replacing an over-the-range microwave, the mounting bracket included with the new microwave should be used since the mounting bracket is specific to each model. The new screws, bolts, and exhaust adapter should also be used. You can view the Installation Instruction online at this link: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-40765.pdf - Thanks for choosing our GE® Over-the-Range Microwave JVM6172SKSS. Enjoy! SUE@GEA
A: Hi Donna - Thank you for reaching out to us. We are deeply sorry to hear this is happening. We would recommend contacting GE service to come out and take a look at the microwave to determine why this is happening. This is not a function of the microwave that can be disabled. Please call 1-800-432-2737 M-F 7am-10pm, Sat 8am-6pm, Sun 8am-6pm EST to schedule a service appointment. We apologize for any inconvenience or frustration this may be causing you. All our best! Vikki@GEA
Q: What GE microwave replaces JVM1750DP2WW Spacemaker
A: Hi Mark - Thanks for reaching out to us! We are sorry to hear your GE model JVM1750DP2WW needs replacing and apologize for any inconvenience this has caused. JVM1750DP2WW has sensor cooking controls. We suggest GE® 1.9 Cu. Ft. Over-the-Range Sensor Microwave Oven Model #: JVM7195DKWW and GE® 1.7 Cu. Ft. Over-the-Range Sensor Microwave Oven Model #: JVM6175DKWW. All 30" over-the-range microwaves are approximately the same width, and are designed to fit into a 30" wide cabinet opening. Therefore, any of our 30" over-the-range models will work as a replacement for an existing 30" over-the-range model. This makes choosing a replacement microwave easy. We certainly appreciate your loyalty! Keep in touch at GEAppliances.com. Sue
Q: Can you buy a mounting kit for this microwave? If so, where? And what's the part/item#
A: Hi Chefdaddy- The mounting bracket is included with the microwave. A replacement mounting bracket (WB56X10446) and mounting kit (hardware- WB06X10889) can be purchased online at GEApplianceparts.com or call our GE Appliances Parts Team for assistance at 1-877-959-8688, Mon–Fri 8am–8pm, Sat 8:30am–5pm ET. Thanks for choosing GE! SUE@GEA
