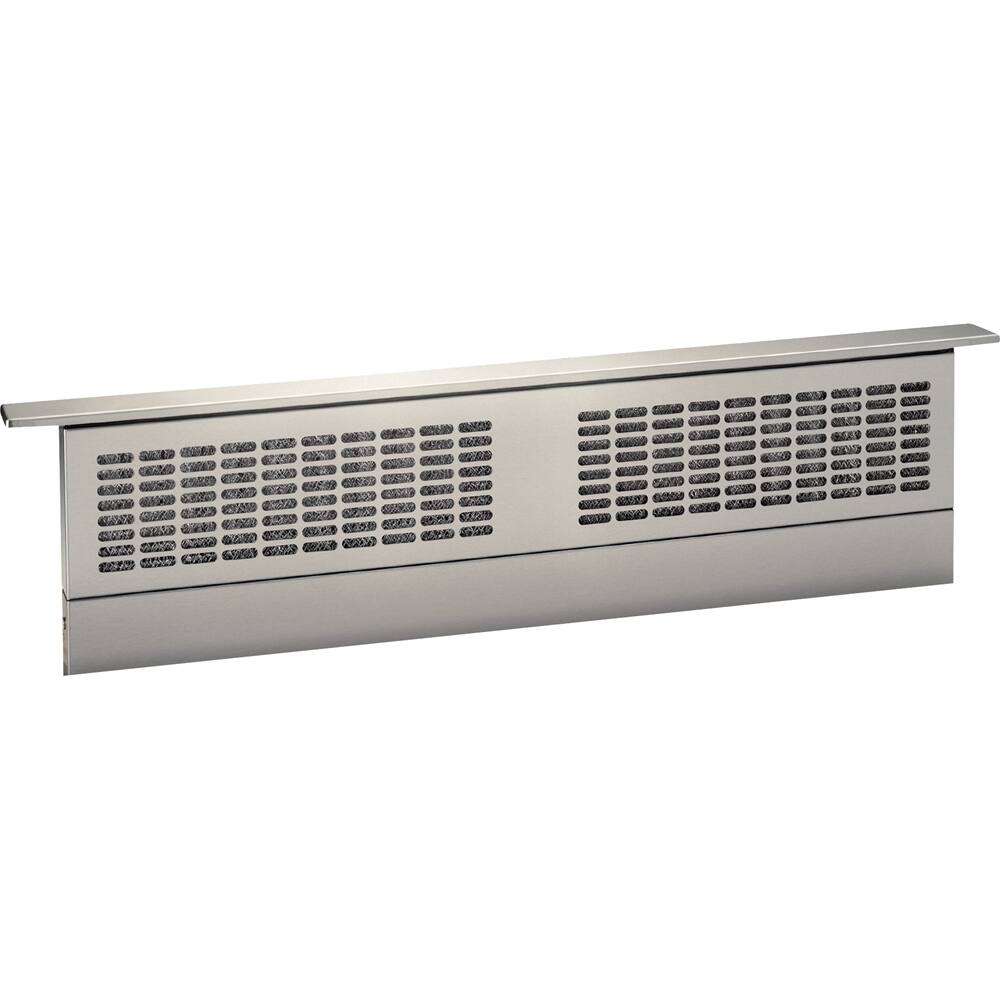

GE - 30 inches - Telescopic Downdraft Range Hood - Stainless Steel
- Key Specs
- Product Height: 27 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted
- Color Finish: Stainless steel
- General
- Product Name: Universal 30" Telescopic Downdraft System
- Brand: GE
- Model Number: UVB30SKSS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 27 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 54 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 10 inches
- Duct Width: 3 1/4 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted
- Telescoping: true (Make the most of your space with a range hood that can raise up for operation and then retract when not in use.)
- Range Hood Type: Downdraft
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: true
- Auto Fan Shut-Off: false
- Damper Included: false
- Integrated Light(s): false
- Performance
- Maximum Air Flow Capacity: 370 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 140 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: false
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 084691819134
Keep your kitchen air fresh with this GE telescopic downdraft system. The 370-CFM venting system's blower removes moisture, grease, odors and smoke, delivering them outside your home. Control the fan by selecting one of four speed options on the unit's remote. Lower hood of this GE telescopic downdraft system to retract the unit when it's not in use.
- 370-CFM venting system: Effectively removes smoke, grease, odor and moisture.
- Four-speed fan control: Helps draw smoke, grease, odors and moisture out of the kitchen air.
- Telescopic hood: Raises over cooktop surface and retracts when not in use.
Whats Included
- 1 x remote switch
- 1 x wire and white connector
- 2 x filters
- 4 x stabilizing brackets with screws
- Universal 30" Telescopic Downdraft System
Product Manuals
Q: Where are the up/down and fan controls located?
A: They are on a remote. We had ours installed under the counter on the side.
A: Hello Peetie - Thank you for reaching out about this excellent downdraft vent. All of our telescopic downdrafts can be used with any of our cooktops. We only recommend looking over the installation dimensions of both appliances to make sure enough room is available in your countertop. The vent can exhaust downward and the ducting can be run under the floor to exit the house. For availability in your area, please reach out to your local Best Buy. Thanks! - John@GEA
Q: Do you have any downdraft units that will work with a CGS750P4MW2?
A: Hey there, This is a good question! Our downdraft vents are only designed to work with cooktops, not ranges. We do apologize for any inconvenience this may cause. Thanks for reaching out. Mike@GEA
A: Hello Buster! Thanks for your question. We cannot confirm that these can be installed together since it is not a GE Appliances unit. We're sorry for any inconvenience that this may cause. Stay safe. Emily@GEA
Q: What’s difference between UVB30SK vs UVB30DK telescopic downdraft system?
A: Hello Downdraft, Thanks for reaching out. Great question! The major difference besides the color is in the CFM/sones rating on high speed. On working speed they are the same at 140/2.5. The UVB30SKSS model on high speed is 390/9.0 while the UVB30DKBB model is 370/9.0. We hope this information is helpful. Best wishes. Mike@GEA
Q: DO YOU INSTALL GE TELESCOPIN VENTILATION
A: undefined
A: Hi scuba1 - Universal 30" Telescopic Downdraft System UVB30DKBB is approved for use with the following Monogram, GE Profile™ Series and GE® Series cooktops only: 30" electric models, 30" gas sealed-burner models and 30" induction models. It is not approved or designed for use with a range. We suggest to view the Quick Specs at the following link for more details: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=UVB30DK_c3.pdf - Keep in touch at GEAppliances.com - Sue
Q: What is the height of the chimney when raised?
A: Hi TJ - The lift of the vent is 8 1/2". We suggest to view the Quick Specs at the following link for product dimensions: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=UVB30DK_c3.pdf - Keep in touch! Sue
