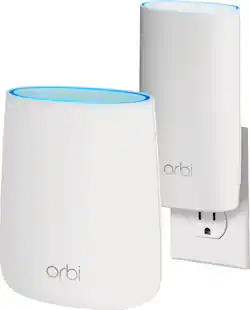

NETGEAR - Orbi AC2200 Tri-Band Mesh Wi-Fi System (2-pack) - White
- Key Specs
- Wi-Fi Range: 3500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 2 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 2200 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Product Name: Orbi AC2200 Tri-Band Mesh Wi-Fi System (2-pack)
- Brand: NETGEAR
- Model Number: RBK20W-100NAS
- Color: White
- Security
- Data Encryption: true
- Encryption Type: WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: None (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 4
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 3500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 2 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 2 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 2 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Wired Backhaul: false (Also known as Ethernet backhaul or backbone, this capability can be enabled to directly wire a secondary router or satellite to the main router via Ethernet cable. This connection allows for faster and more stable data upload.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Orbi App
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 2200 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 606449133561
Orbi Whole Home WiFi System delivers up to 2.2Gbps high-performance Wi-Fi. Sleek, modern design with high-gain internal antennas for up to 3,500 square feet of coverage. FastLane3 Technology creates a dedicated Tri-Band Wi-Fi for seamless 4K streaming and gaming everywhere in your home. Keep a single Wi-Fi name for uninterrupted connections as you move from room-to-room. Circle Smart Parental Controls runs on Orbi Routers for a smart way for families to manage content and time online, on any connected device. Provide internet access to guests without sharing your personal network password. Orbi is ready right out of the box and compatible with your ISP. Just use the Orbi app to get started with better Wi-Fi everywhere in minutes.
- Supports high definition video conferencing (Zoom, Skype, WebEx, FaceTime, and more): Whether you work from home or want to connect with your friends and family you can video conference with crystal clear audio and video from anywhere in your home.
- Your home & yard. Covered: This kit of two covers up to a 3,500 square feet home.
- Wireless-N technology: Utilizes the MIMO smart antenna design to deliver improved range while eliminating drops and dead zones.
- Simultaneous Tri-band Wi-Fi: Up to 2.2 Gbps data transfer rates with Wireless-N.
- FastLane3™ technology: The dedicated Wi-Fi backhaul creates better 4K HD streaming & gaming, even as you connect more devices.
- One Wi-Fi network: Enjoy the convenience of a single Wi-Fi name for your whole home.
- Easy setup: Use the Orbi app or any web browser to set whole home Wi-Fi in minutes.
- Up to 256-bit encryption: Protects your network against hackers and eavesdroppers.
- Works with Amazon Alexa and the Google Assistant: Control your home network using voice commands.
- Manage your kids’ screen time: CircleSmart Parental Controls lets you easily manage content & time online on any device.
Whats Included
- Orbi Router (RBR20)
- Orbi Wall Plug Satellite (RBW30)
- Ethernet cable (6.56')
- 12V/1.5A power adapter
- Owner's manual
Product Manuals
Q: Is this compatible with Verizon Fios?
A: Yes. Compatible with Fios. Easy to hook up. You will need access to yours FIOS router to disable internet and you can do that via internet login or via the My Fios App. My Best Buy store actually gave me step by step printed directions for setup. Ask them when you buy it.
A: Yes. You should be able to log into the modem and convert it to a modem only. Just did that with a Comcast one
Q: Does this work with Comcast internet?
A: Just be sure to disable the wifi option on their router so it is a modem only
Q: Is this a stand alone wi-fi unit or do you need to have a carrier? I have AT&T but, slow speed.
A: The ORBI AC2200 is just a router. In my case, it only takes the signal that's already there from my fiberoptic modem/carrier and wifi's it to other parts of the house that didn't used to get enough signal. Then my computers and TV's take that signal. For that purpose, it's been excellent.
Q: compare night hawk router with orbit tribandwifi system
A: The Orbi is faster with greater coverage.
A: You can use the Orbi as an Access Point by plugging the Orbi Router into your existing router, set to AP during setup, and it will have a separate SSID and password with the same network as your first router and the satellite will just extend the Orbi router. Doing it this way will allow your devices to, "play nicely together".
Q: Is there supposed to be any type of light on the router and the adapter when your WiFi is connected?
A: The only lights available on the Orbi come from the light ring at the top of the Orbi unit and those lights are only interactive during the initial setup process. If a good connection is made it glows a certain color (read directions) but only for a few minutes and then light turns off permanently. It only shows a consistent amber light if there is no connection. But to answer your question - no lights are visible when a strong connection is made and continuous.
Q: Will this unit work with Spectum
A: Yes
