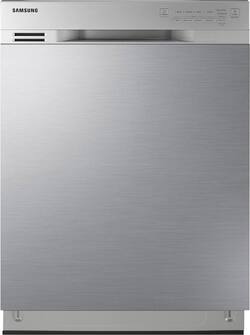

Samsung - 24" Front Control Built-In Dishwasher with Stainless Steel Tub
- Key Specs
- Product Height: 35.87 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Color Finish: Stainless steel
- General
- Product Name: 24" Front Control Built-In Dishwasher with Stainless Steel Tub
- Brand: Samsung
- Model Number: DW80J3020US
- Color Finish: Stainless steel
- Dimensions
- Product Height: 35.87 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 91.1 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: true (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Cycle Specifications
- Dishwasher Cycles: Auto, Normal, Heavy, Quick
- Options and Programs: Sanitize, Low Rinse, Control Lock
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Adjustable height, Cup shelf, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Removable silverware basket, Adjustable tines (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Location: Front control
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 265 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 29 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1100 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 887276105529
Clean every inch of every dish. This Samsung appliance washes away heavy foods without the need for you to pre-rinse. Plus, the quiet operation mean you won’t be interrupted by loud noises while the dishwasher is running.
- 24” width: There’s room for up to 15 place settings and a convenient, stainless steel pocket handle. Plus, choose from 4 wash cycles, including a sanitize option and more.
- Hard food disposer: Say goodbye to scrubbing dishes and cleaning filters. This advanced system washes solid foods away for good.
- Hidden heating element: Protect your plastic. The heating element is out of reach to keep you and your dishes safe.
- Indicator light: Keep track of each cycle. The progress indicator lets you know when the dishwasher is running and the front control panel is easy to access.
- Adjustable racking system: Make it all fit. The flexible racking system helps you accommodate large loads of dishware in all shapes and sizes.
- Digital Leak Sensor: Protect your floors. This sensor identifies even tiny leaks and will shut off the appliance right away to avoid water damage.
- 50-dBA noise level rating: Have normal conversations or stream media in the same room. The special insulation system keeps operation quiet through each wash.
Whats Included
- 24" Built-In Dishwasher with Stainless Steel Tub
- Dishwasher hookup kit is not included
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: Does this dishwasher have a heated dry cycle?
A: As others have indicated, this unit does not have a heated dry. Strictly speaking, a heated dry requires an exposed heating element at the bottom of the dishwasher. You'll often see a ring near the spinners. Many Whirlpools and Frigidaires do have this option but it is not energy efficient. Many companies like Samsung and Bosch have taken to a condensation dry where the heat from the cycle is retained by the stainless steel interior, coupled with a venting system to remove excess moisture. This process can take longer to complete and you may find some moisture in "pools" such as upside down cups. This process is an even heating and also allows you to place plastic on the bottom where a conventional heating element might melt plastic. This allows for more flexible loading. Condensations dry does also require more time as it is essentially moving less energy per minute versus a heated dry. Depending on how quickly you would like your dishes done, a heated dry might not be the best option if you need them completely dry, very quickly. However, it will save you money and if you run your dishes over night should not present a problem.
Q: How long does a normal cycle take?
A: Yep, there isn't a quick wash or just a rinse cycle on mine and the normal setting is 2hrs 15minutes. I go ahead and run the heavy and sanitizer cycle at bedtime witch is about 3hrs. It's too late for me, I've already made the purchase but won't do it again
Q: MACHINE INSTALLATION PARTS, COST & HOW?
A: Buy the water line and power cord kit, I think it's about $30.00, it comes with a braided flexable water line and several fittings for different applications and teflon tape (they thought of it all) plus a good quality power cord and directions to hook it all up, very easy to understand. One of the very best things I like about the dishwasher is when you go to level it from front to rear there is an all screw in the front you turn that adjust the rear legs (its about time someone figured it out)..
Q: my dishwasher will not fill with water
A: Had the same problem. It also would turn on in the middle of the night randomly. I took mine back to Best Buy within 30 days of purchasing it.
Q: I would like to verify exact height of this dishwasher.
A: Hi Steve, The height of the DW80J3020US Dishwasher can be adjusted from 33-7/8" to 35-7/8". The minimum height of the cutout is 34". Thanks for choosing Samsung! Ms. Samsung
A: It does not. To combat this, run your sink on hot for about 30 seconds to get the warm water to the washer. Then start the cycle. Hope that helps.
Q: Is it normal for the tub of this dishwasher to have water condensation a week later?
A: Thanks for the question. It isn't unusual for their to be condensation on the surface of the Dishwasher tub, particularly if the door has been closed or if the air in the kitchen is very humid, since these conditions would not be conducive to natural evaporation. To help prevent odor-causing bacteria and mold, it's recommended to select Sanitize to maximize the effectiveness of Condensation Drying; wiping the interior dry and running an empty Sanitize cycle periodically. For more information, please refer to page 19 of the User Manual. - Ms. Samsung
A: I don't know the Db rating off hand but it is very quiet.
