Swann - 4980 PRO SERIES HD 8-Channel, 8-Camera Indoor/Outdoor Wired 2TB DVR Surveillance System
- Key Specs
- Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 8
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Number Of Channels: 8
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 4980 PRO SERIES HD 8-Channel, 8-Camera Indoor/Outdoor Wired 2TB DVR Surveillance System
- Brand: Swann
- Model Number: SWDVK-849808-US
- Camera
- Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 98 feet
- Number Of Cameras Included: 8
- Camera Infrared Distance: 98 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: Specialty (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Not Available
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Number Of Channels: 8
- Video Compression Type: Not Available
- Storage
- DVR Storage Capacity: 2000 gigabytes
- Performance
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Mobile Notifications: true
- Auto-On Detection: Motion
- Dimension
- Camera Height: 2.8 inches
- Camera Width: 2.8 inches
- Camera Depth: 5.9 inches
- DVR Height: 2.1 inches
- DVR Width: 12.8 inches
- DVR Depth: 9.1 inches
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): HDMI, VGA, RCA audio, USB 2.0, USB 3.0
- Included
- Camera(s) Included: true
- DVR Included: true
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: Not Available
- Manufacturer's Warranty - Labor: Not Available
- Other
- UPC: 840236120109
Monitor your outdoor environment with this Swann eight-channel DVR and camera set. Infrared LEDs let you capture night-vision views, and the 2TB hard drive on the DVR holds video for later viewing. Access the live view via a smartphone or tablet with this Swann eight-channel DVR and camera set.
- Works with the Google Assistant: Control and stream your Swann security system to your TV using the Google Assistant and Chromecast.

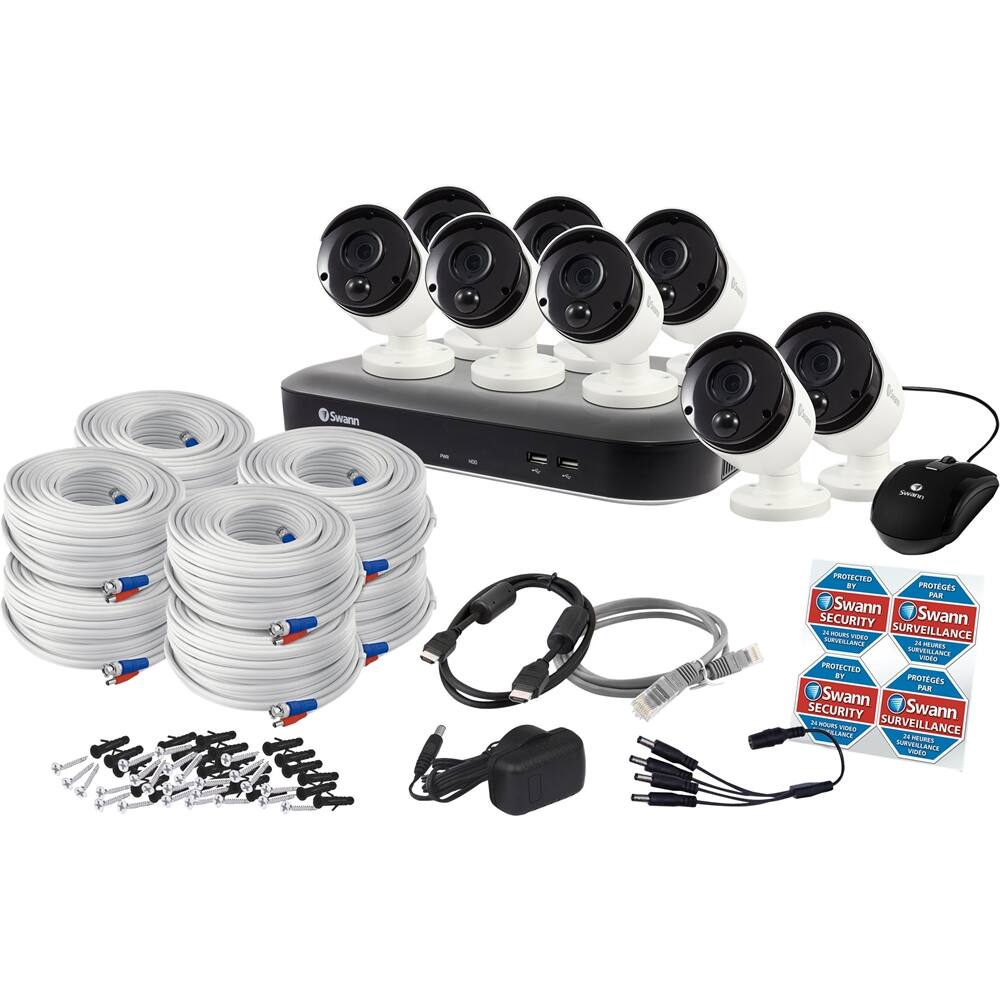

- Monitor your property with 8 cameras: Also includes DVR, mouse, power adapter, power splitter, security stickers and mounting screws.
- Hard drive storage: Record continuously from 8 channels with a 2TB hard drive.
- High-resolution technology: 5 megapixel True Detect cameras use advanced image sensors to sense heat of moving objects and record clear full-screen video.
- Infrared night vision: Keep an eye on things up to 98' away.
- Viewing angle up to 70°: Captures a wide angle of your property for security at all times.
- Stay connected with free mobile and web apps: Download the Dropcam app and view footage from your compatible Apple® or Android device.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
Whats Included
- Swann 4980 PRO SERIES HD 8-Channel, 8-Camera Indoor/Outdoor Wired 2TB DVR Surveillance System

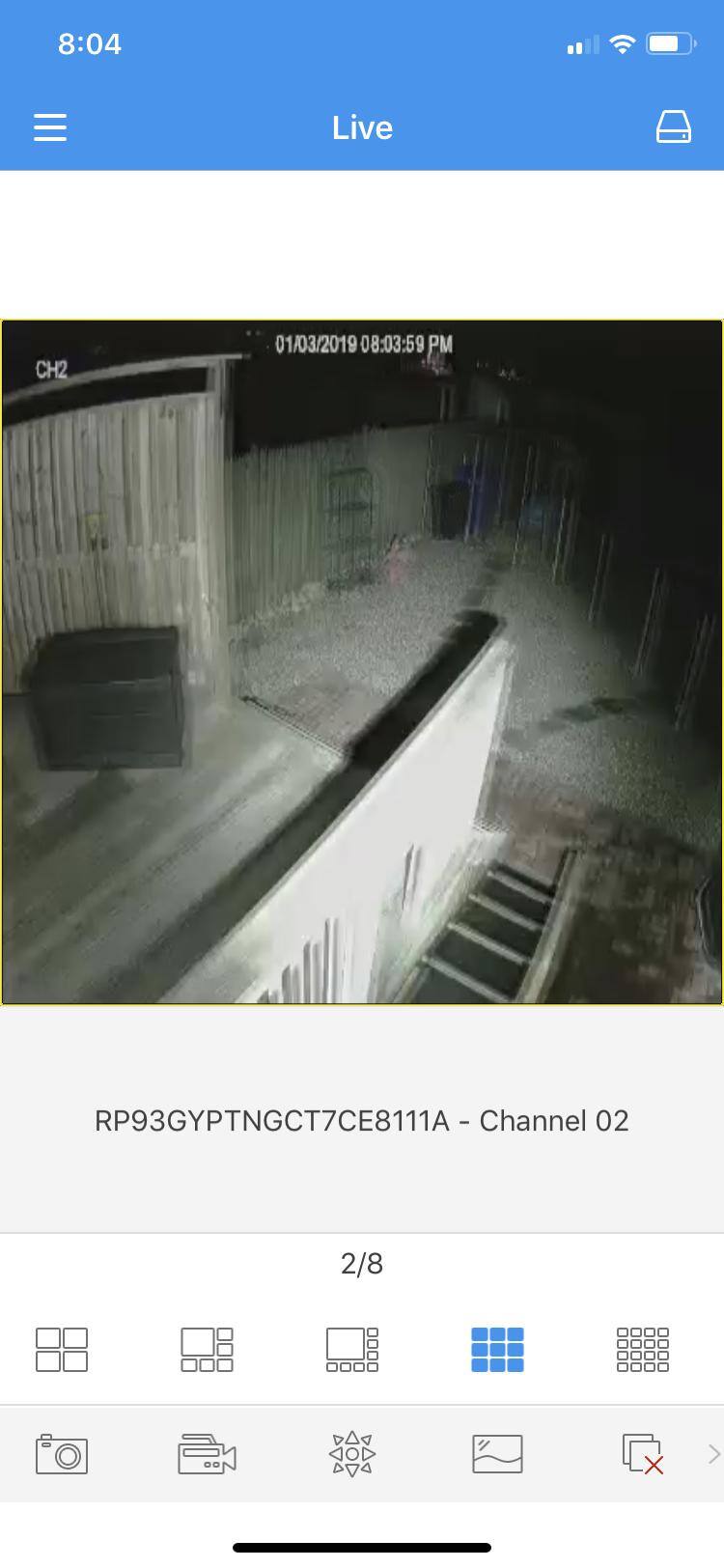

Q: Is the image or video in color or is it white and black?
A: It is in color if there are lights on or its daylight. Nighttime image is black and white.
Q: Does this camera have audio to hear...?
A: This unit, out of the box, does not have audio. It does have 4 audio inputs, so you can attach a mike or up to 4 audio capable cameras, such as the SWANN 1080p Full HD Bullet with Audio & IR Night Vision - PRO-1080FLB. It has capability to output to one external speaker (purchased separately)...
Q: how much cable comes with each camera in feet
A: Each cable measures about 60 feet. There is a BNC on each end a 12v male on dvr end and a 12v female on camera end.
Q: At what resolution will this system record at 30fps?
A: If you want to record at 30FPS you would drop the recording resolution to 1080P (Full HD).
A: You can do both. The standard preview of the recordings is 4 but you can select how may you want to see. You can also select all of them and then double click on the one you're interested in and it will fill the window.
Q: How far can camera go from the control unit
A: They come with 60’ of cable per camera but you can buy extra 100’ rolls. I have added 100’ rolls to my 60’ rolls with no problems and on another setup but a different brand I have added two 100’ rolls and it’s over 250’ and it works fine
Q: does the set come with all cables shown?
A: Yes, this kit includes the cameras and the cables needed to install the system.
Q: 2-Way Audio?
A: No, no audio, unless you use a separate microphone (there's one audio input and one audio output on the back, RCA plus). The cameras themselves don't have microphones or speakers. However, there are several cameras on Bestbuy.com that DO have microphones that will work with this DVR. You'll only be able to use one camera with a microphone (there's only one audio input on the DVR) and the cameras that do have it are 1080P (they won't be as clear as the cameras that come with this kit). Look up SWPRO-1080FLB, SWPRO-1080ZLB, SWPRO-1080FLD, and SWPRO-1080ZLD. (I work for Swann by the way)
