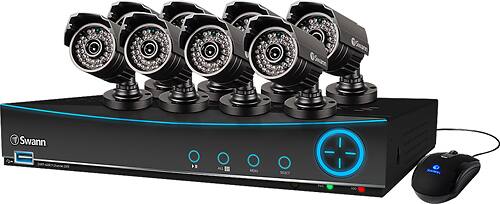

Swann - Pro-Series 9-Channel, 8-Camera Indoor/Outdoor Surveillance System - Black
- Key Specs
- Camera Resolution: 960 x 480 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 59 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 8
- Number Of Channels: 9
- Recording Resolution: 960 x 480 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- General
- Product Name: Pro-Series 9-Channel, 8-Camera Indoor/Outdoor Surveillance System
- Brand: Swann
- Model Number: SWDVK-942008F-US
- Camera
- Camera Resolution: 960 x 480 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 59 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 82 feet
- Number Of Cameras Included: 8
- Number of IR LEDs: 36 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Compatibility
- Camera Compatibility: PRO-535
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Number Of Channels: 9
- Recording Resolution: 960 x 480 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- DVR Storage Capacity: 1000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Camera Height: 3.4 inches
- Camera Width: 2 inches
- Camera Depth: 3.7 inches
- Camera Weight: 0.67 pounds
- DVR Height: 1.97 inches
- DVR Width: 8.46 inches
- DVR Depth: 10.23 inches
- DVR Weight: 3.1 pounds
- Output
- DVR Output(s): HDMI
- Display
- Camera Color Display: true
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Other
- UPC: 815849016897
Swann DVR9-4200 9-Channel, 8-Camera Security System: With video-monitoring capabilities on up to 9 channels, this wired surveillance system is a great solution for any home or business owner wanting advanced security. Put your mind at ease by knowing this system is capturing high-resolution, wide-angle footage night and day. Use the free app to connect to your smartphone or tablet for real-time, remote playback.
- Monitor your property with 8 cameras: Includes 8 650 TV Line cameras for recording high-resolution video for widescreen viewing.
- View and record from up to 9 channels: Add a camera of your choice for 9-channel simultaneous monitoring. Compatible with most Swann cameras (sold separately).
- Set and forget with hard drive storage: Record continuously from 9 channels for up to 28 consecutive days with a 1TB hard drive. For extra capacity, connect an external hard drive to the eSATA port.
- High-resolution technology captures superior footage: 960H resolution cameras use advanced image sensors to record larger, clearer full-screen video. They produce an image that is 960 horizontal and 480 vertical pixels in size.
- Powerful night vision up to 82': Allows you to monitor your home or business, even in dim lighting, automatically switching the picture to black-and-white in low-light conditions.
- Viewing angle up to 59°: Expertly captures a wide angle of your property for exceptional security at all times.
- Weather-resistant design: Aluminum construction and an IP67 rating protects against wind and rain for versatile indoor/outdoor monitoring.
- Live viewing and real-time playback: Easy setup for widescreen, real-time video playback on displays up to 1080p with high-speed Internet or smartphone connectivity.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
- Remote viewing with the free SwannView Link app: Surveillance in the palm of your hand with live viewing on any 3G-/4G-enabled smartphone or tablet. App download required.
- BNC wired installation: For reliable and secure connection.
- Mountable design: For optimal placement on a wall or countertop.
Whats Included
- 9-channel DVR (DVR9-4200)
- 8 surveillance cameras (PRO-535)
- Eight 60' BNC cables, HDMI cable, Ethernet cable
- Power adapter, mouse, remote with 2 AAA batteries
- Mounting screws and plugs
- 4 theft-deterrent stickers, software CD-ROM
- Owner's manual
Q: how are the cameras powered?
A: There are 2 wires that run from the back of the dvr to the camera. One is for video the other is power. The power comes from a plug that goes into the wall and has a splitter that can power 5 cameras.
A: Yes it does, it does not record unless someone passes by you can adjust the sensitivity in the area of your home backyard that you want it to focus on is also another option that I like about it.
Q: do you have service to install the camaras
A: Don't know what you mean by service you just need to plug it into any outlet and into the monitor you like i.e your tv but if you want to be able to check your camera when your away on your iPhone or smartphone you would have to download the app on your smartphone or device and the dvr that comes with the camera have to be connected to a router from your cable provider.
Q: Does this system record audio?
A: No, this surveillance system doesnot record audio.
Q: How long
A: I ran the provided cables and added 25 feet of extra cable and still have the same quality as the provided cables alone.
A: You would have to mount the cameras and run the wires to the dvr. We ran ours through the attic
