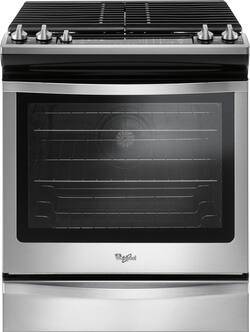

Whirlpool - 5.8 Cu. Ft. Self-Cleaning Slide-In Gas Convection Range
- Key Specs
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 15/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 28 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General
- Product Name: 5.8 Cu. Ft. Self-Cleaning Slide-In Gas Convection Range
- Brand: Whirlpool
- Model Number: WEG745H0FS
- Color Finish: Stainless steel
- Dimensions
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 15/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 28 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Product Weight: 199 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Control Type: Knob, Touchpad
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection
- Oven Settings: Delay Bake Option, Time Bake, Timer
- Oven Features
- Oven Cleaning Method: Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 7
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 5
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 8001 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 16999 british thermal units
- Burner 3 Rating: 4999 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Burner 5 Rating: 9199 british thermal units
- Broiler Burner Rating: 13000 british thermal units
- Included
- Propane Conversion Kit Included: false
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049397627
Cook dinner faster and more efficiently with this 5.8-cubic-foot Whirlpool slide-in gas range. Skip preheating for frozen favorites, such as pizza, fries and nuggets, with the Frozen Bake technology. This versatile Whirlpool slide-in gas range has a convection mode and a conversion setting to adjust cooking times and temperatures automatically.
- 5 cooktop burners: To meet various cooking requirements.
- Stainless steel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Accommodates multiple courses simultaneously: 5.8 cu. ft. oven lets you cook for a large group in less time.
- Store cookie sheets, cooling racks and more: Storage drawer offers discreet storage for your bakeware.
- Safety features: Include residual heat indicator.
Q: What material is the cooktop made of? Is it easy to clean and keep clean?
A: Hi Bia, the Cooktop surface material is porcelain coated steel. With our Affresh Cleaners you should have no issue cleaning the Cooktop. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
A: Hi Jan, thank you for you inquiry into our Whirlpool Brand appliances! The convection cycle can reduce cook times by 25%. To convert your recipes, you will either need to adjust the cook time by 25%. We hope this helps!
A: Hi TimboinOK. You can adjust the flames on this Whirlpool® Range. Please visit https://bit.ly/2vTp3yA and refer to page 22 for more information. If you need assistance after adjusting your flames, please reach out to us directly at 1-800-344-1274, via Facebook https://www.facebook.com/maytag/ or Twitter @MaytagCare. Let’s see what we can do for you!
Q: Is the bottom drawer a warming drawer or just meant for storage?
A: Jennicook, the bottom drawer is intended for storage.
Q: Good AM - not too familiar with convections - can I use this oven just as a plain old gas oven?
A: Thank you for your inquiry! The convection feature of this range is a select cycle. Which means that you would have to select the convection cycle for it to work. If you choose not to select this cycle, the range will function on a normal bake cycle. However, there are some conveniences to cooking with convection, as it allows you to cook your favorite recipes 25% faster! We hope this information is beneficial to you and thank you for your interest in our Whirlpool Brand appliances.
A: Instead of spending that much to repair, I would get a new one. Even if repaired, it may never be the same. A word of advice: do not use the self-clean function. The intense heat can ruin electronics! Seems crazy, since the manufacturer has that function on the oven, but can be true. A serviceman explained that to my friend who ended up having to replace an expensive double wall oven for that reason. He told her he saw it happen to many makes/models. Easy-Off is messy and stinks, but it’s the way to go.
A: Yes it is. It's a textured black finish.
Q: How do you use the cleaning mechanism
A: Hey Maverick, please visit https://bit.ly/35DDgw0 and refer to page 15 for more information on the AquaLift® Steam Clean cycle for this Whirlpool® Range.
