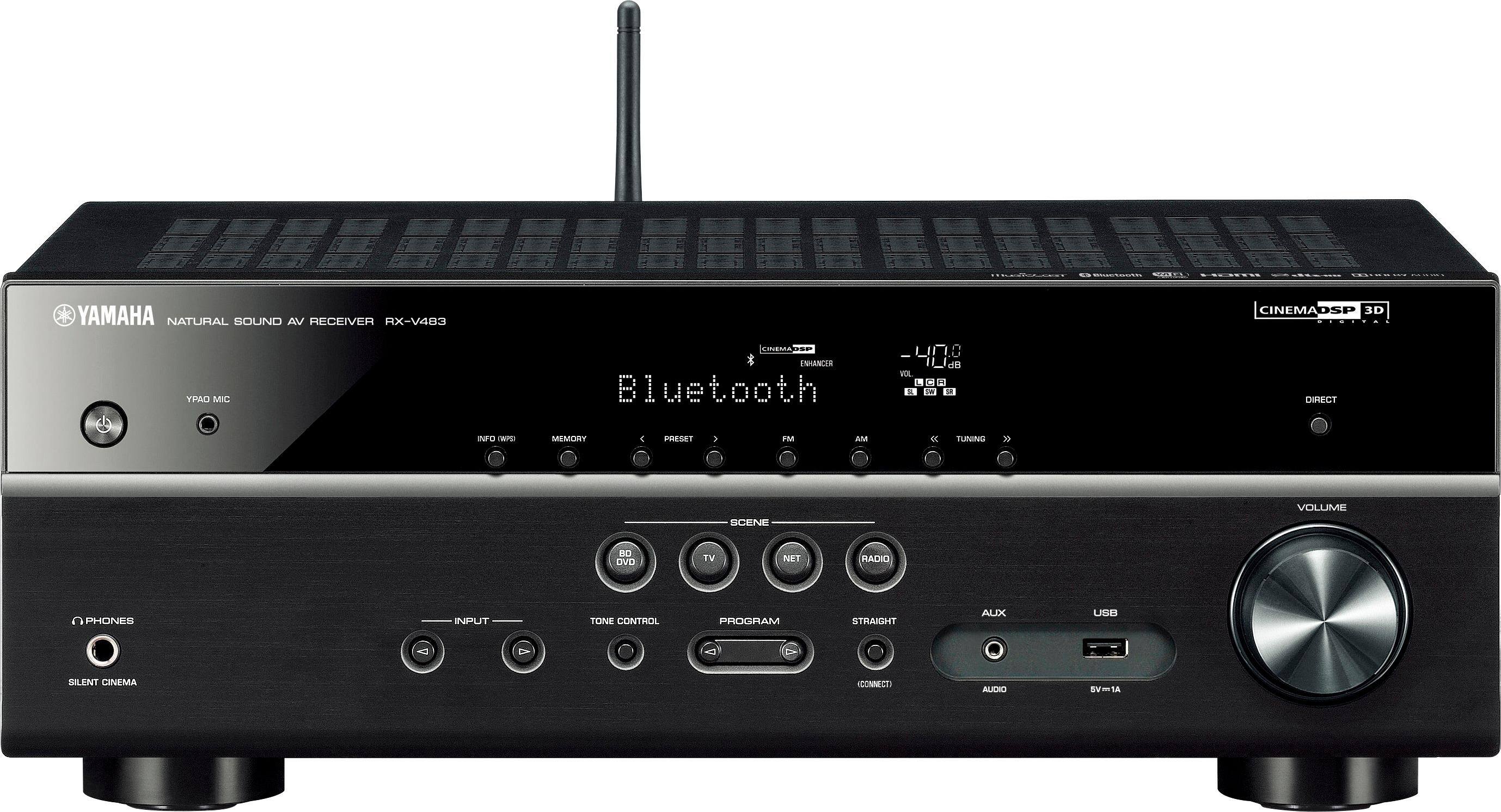

Yamaha - 5.1-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver - Black
- Key Specs
- Number of Channels: 5.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Video Pass-through: 2160 (4K), 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Product Name: 5.1-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Brand: Yamaha
- Model Number: RX-V483BL
- Audio
- Number of Channels: 5.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Surround Sound Supported: Dolby Pro Logic, Dolby Pro Logic II, DTS Neo:6, DTS 96/24, Dolby Digital, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 5.6 MHz (DSD 128) (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: WAV, WMA, AAC, AIFF, PCM, MP3, FLAC, DSD, ALAC
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Video
- Video Pass-through: 2160 (4K), 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Outputs
- Speaker Connection Type: Binding posts
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay, Yamaha MusicCast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Compatibility
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 6.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 17.9 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 2 years
- Manufacturer's Warranty - Labor: 2 years
- Other
- UPC: 027108955155
Immerse yourself in your favorite music with this Yamaha AV receiver. Both Bluetooth and AirPlay wireless connectivity let you share libraries from compatible devices without the tangle of cords. Built-in Wi-Fi offers immediate connectivity to the web, and this Yamaha AV receiver works with MusicCast speakers to share your tunes with up to nine different rooms. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
- Works with Amazon Alexa: Easily control, monitor and schedule your electronics using your voice.
- Connect to the Internet: Access a variety of online streaming services, such as DLNA, Pandora, Deezer, Spotify and TIDAL, as well as music and photos over your home network.
- Up to 4K HDMI passthrough: Transfers 4K video and audio signals from your set-top devices to the TV via the AV receiver.
- 3D passthrough: Passes through 3D content from a variety of devices through your AV receiver to your TV or projector.
- Surround sound decoders: Include Dolby Pro Logic, Dolby Pro Logic II, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Neo:6, DTS-ES Matrix 6.1 and more for crystal surround sound.
- Apple AirPlay support and MusicCast system: Support distributed audio playback in another room, so you can enjoy music throughout your home.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- 0.09% total harmonic distortion: Ensures clear audio.
- Bass and treble controls: Enable simple sonic customization, so you can tailor the sound to suit your preferences.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- Remote: Lets you control the receiver from afar.
- AM/FM tuner: With 40 station presets lets you program your favorites for simple one-touch recall.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 4 HDMI inputs, 1 HDMI output: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- On-screen display: Makes it easy to configure your audio system.
- Apple® iPod®/iPhone® ready: So you can easily stream your music library.
- Bluetooth technology: Supports simple wireless music streaming via compatible devices. Advanced music optimizer technology promotes quality sound when streaming audio.
Whats Included
- Yamaha 5.1-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
A: I took some time to read the manual, and it does allow you to pair a Video source with a seperate Audio source. In other words, you could pair video HDMI3 with Audio 2, or HDMI1 and Audio 1 etc.. Nice feature, I purchased the unit today.
Q: I have a SiriusXM subscription. Can I receive and play SiriusXM radio?
A: The best way I route SiriusXM is through a Roku Stick I have hooked up to one of the HDMI ports. It plays in beautiful stereo. I generally play music with the 5 speaker stereo sound and it is brilliant. The Sirius XM app works well, but is interrupted by my car when I put Siruis on it.
A: No. It uses IR, not RF. You can use a Harmony hub universal remote to do this, since that does work without line of sight.
A: Yes you can.
A: Works fine. Better than my pioneer. I am using with two kef 100s and 2 10” Klipsch subwoofers. The 2 subs smoothed the bass(one sub was boomy, good for movies not music), but over powered the kefs. Make sure you go through the speaker setup menu. I also toned down the output to the subs. Really dialog sound fine. When I didn’t set up it sounded muffled because it would go to a 5.1 setup and I don’t have rears or a center channel.
Q: How to connect front , center, rear and a subwoofer speakers to the Yamaha RXV483
A: All the speakers are directly wired to the receiver. The woofer uses an RCA jack, all others have Banana Jack/free wire connectability. You must run wires to the receiver. The devices below are what I hooked up.
Q: does this Yamaha amp have a phonograph hookup?
A: No, there is not a connection for a phonograph.
