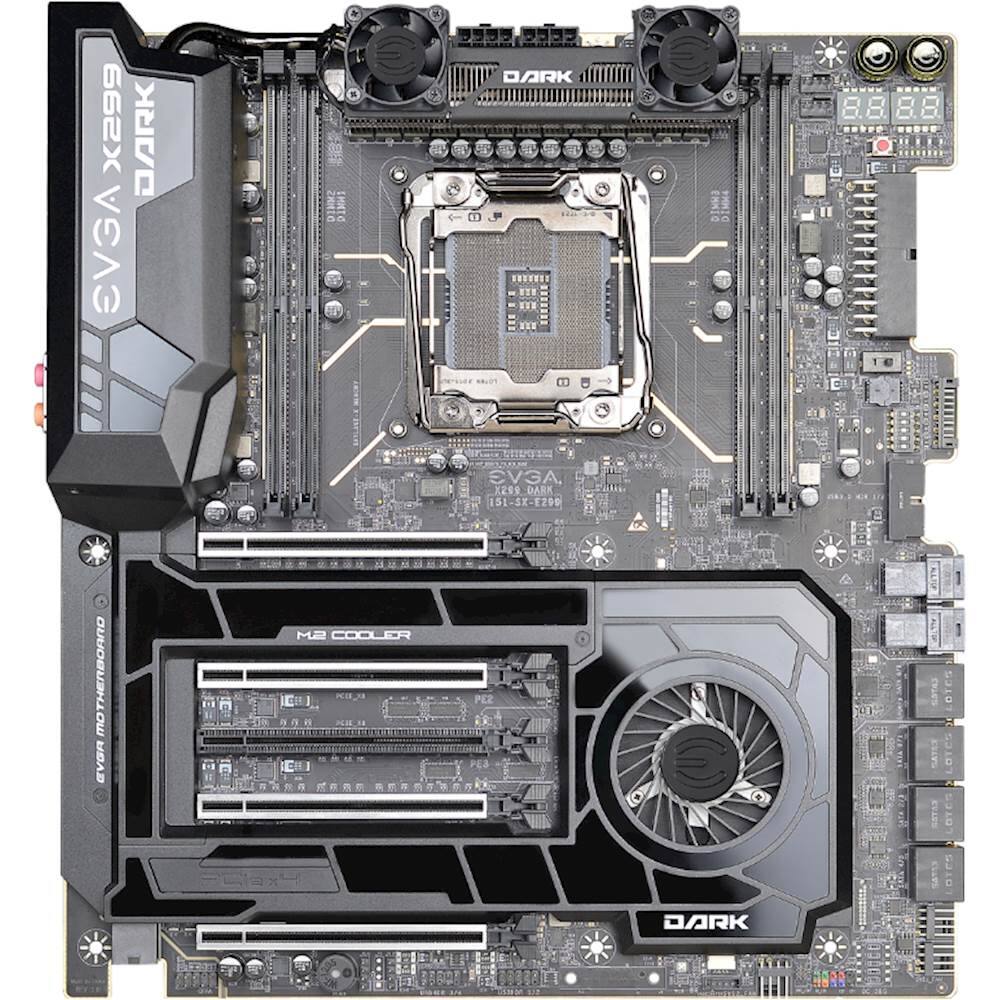

Name: EVGA - X299 Dark (Socket LGA2066) USB 3.1 Intel Motherboard
Brand: EVGA
SKU: 6224903
Rating: 5 (1 reviews)

Key Specs
- Chipset: Intel X299
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 2066 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
General
- Brand: EVGA
- Model Number: 151-SX-E299-KR
- Product Name: X299 Dark (Socket LGA2066) USB 3.1 Intel Motherboard
Compatibility
- Chipset: Intel X299
- Chipset Compatibility: Intel
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 2066 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i5, Intel Core i7, Intel Core i9
- Operating System Compatibility: Windows 10
Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of Memory Slots: 4
Connectivity
- SATA Connector: 8x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Ports
- USB Ports: 4 x USB-A 2.0, 8 x USB-A 3.0, 1 x USB-C 3.1 (The number and type of USB ports the product has.)
- Audio Ports: - 5.1 Channel HD Audio
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 276.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4133 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
Features
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
Other
- UPC: 843368049508

Overclock with confidence by using this EATX-size EVGA motherboard. It supports up to 64GB of RAM for efficient multitasking capability and Intel's X299 chipset for speedy processing power. This EVGA motherboard has eight native USB 3.0 ports for connecting accessories, and its eight SATA ports provide plenty of room for essential hard drives.

Supports 7th Gen Intel® Core™ processors: Including Intel® Core™ X-series processor family in an LGA 2066 socket.
Up to 4133MHz (OC) system speed: With an Intel® X299 chipset for fast computing.
NVIDIA four-way SLI graphics support: Provides ultrarealistic image detail when gaming. Four-way SLI is supported when using a 44-lane Skylake-X CPU.
Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
5.1 channel HD audio: Offers an excellent sonic performance.
Peripheral interfaces: Include two LAN (Gigabit Ethernet), eight USB 3.0, one USB 3.1 Type-A, one USB 3.1 Type-C, four USB 2.0, one TOSLINK, five audio jacks.
Expansion capabilities: Include five PCI Express 3.0 x16, one PCI Express 3.0 x4.
PC system requirements: Windows 10 (64-bit).

Whats Included

EVGA X299 Dark (Socket LGA2066) USB 3.1 Intel Motherboard
Two SATA 6G data cables, USB 2.0 header bracket
3-Way SLI Bridge, rear case I/O panel, ProbeIT adapter, Socket 20XX Backplate (optional), vertical adapter for M.2 Key-E, two Thermal Pad for M.2 SSDs
Case badge, visual guide / bench stand (incl. standoffs and screws)
EVGA driver installation disc with EVGA E-LEET X
Owner's manual
