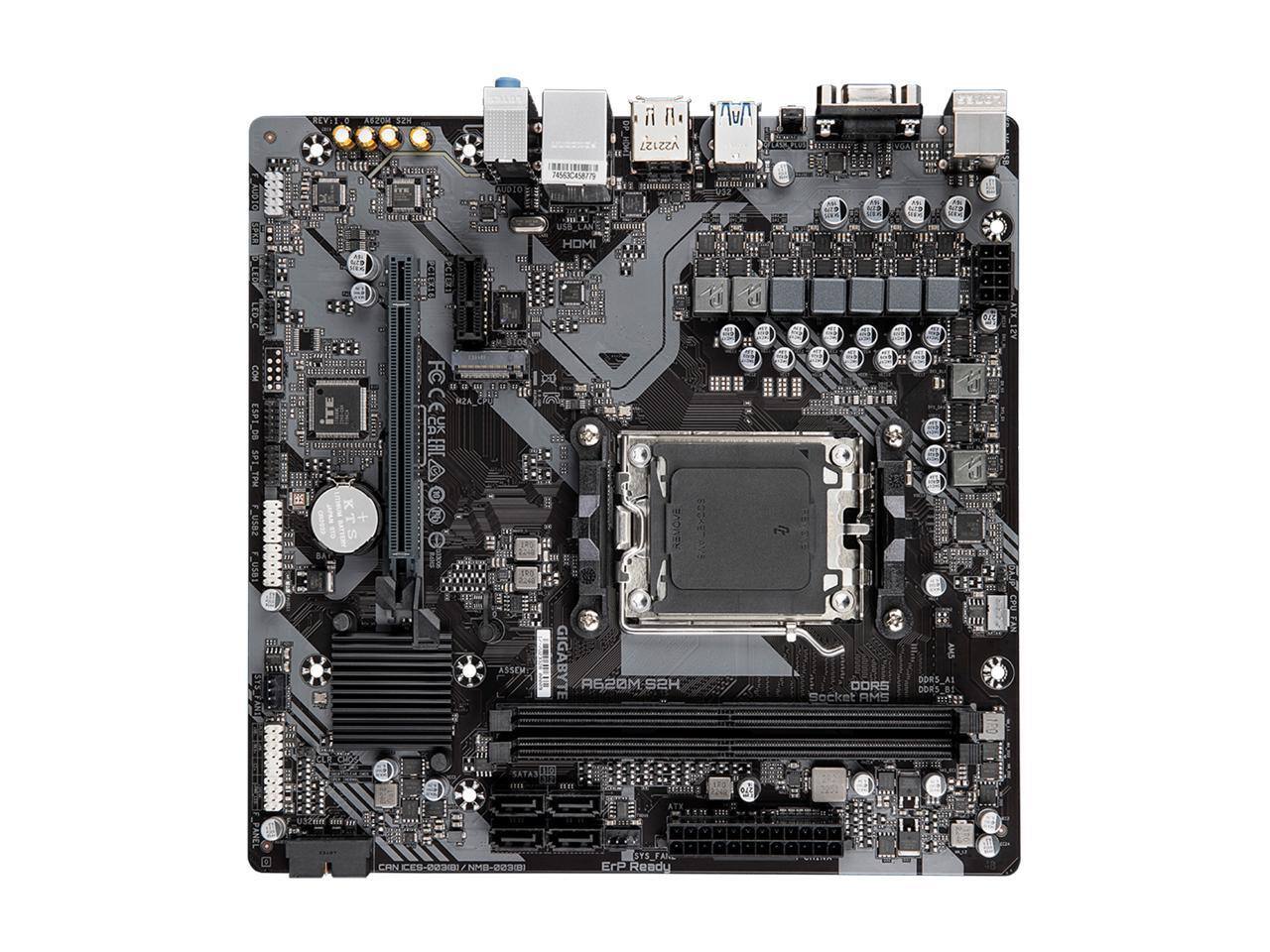

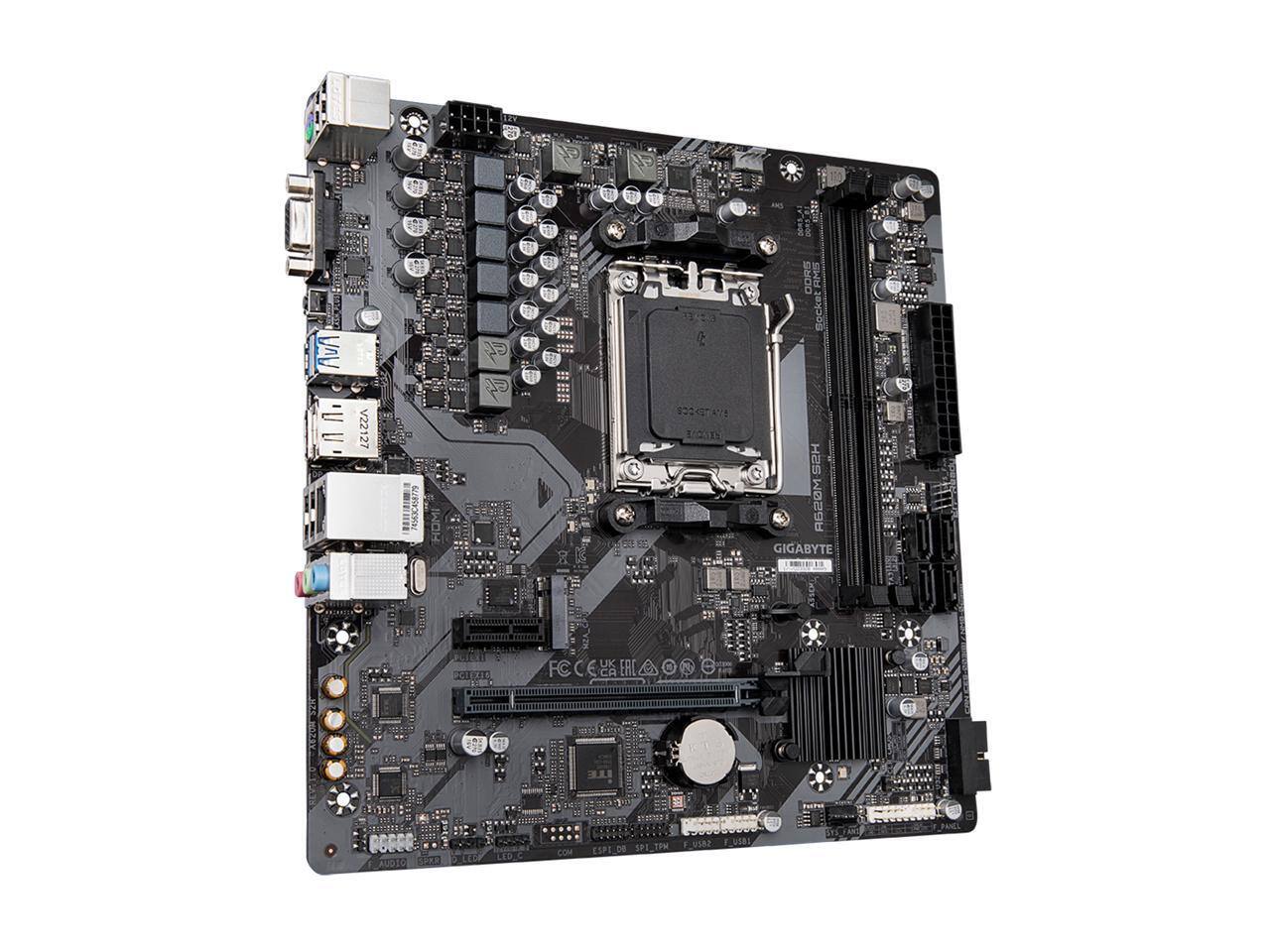

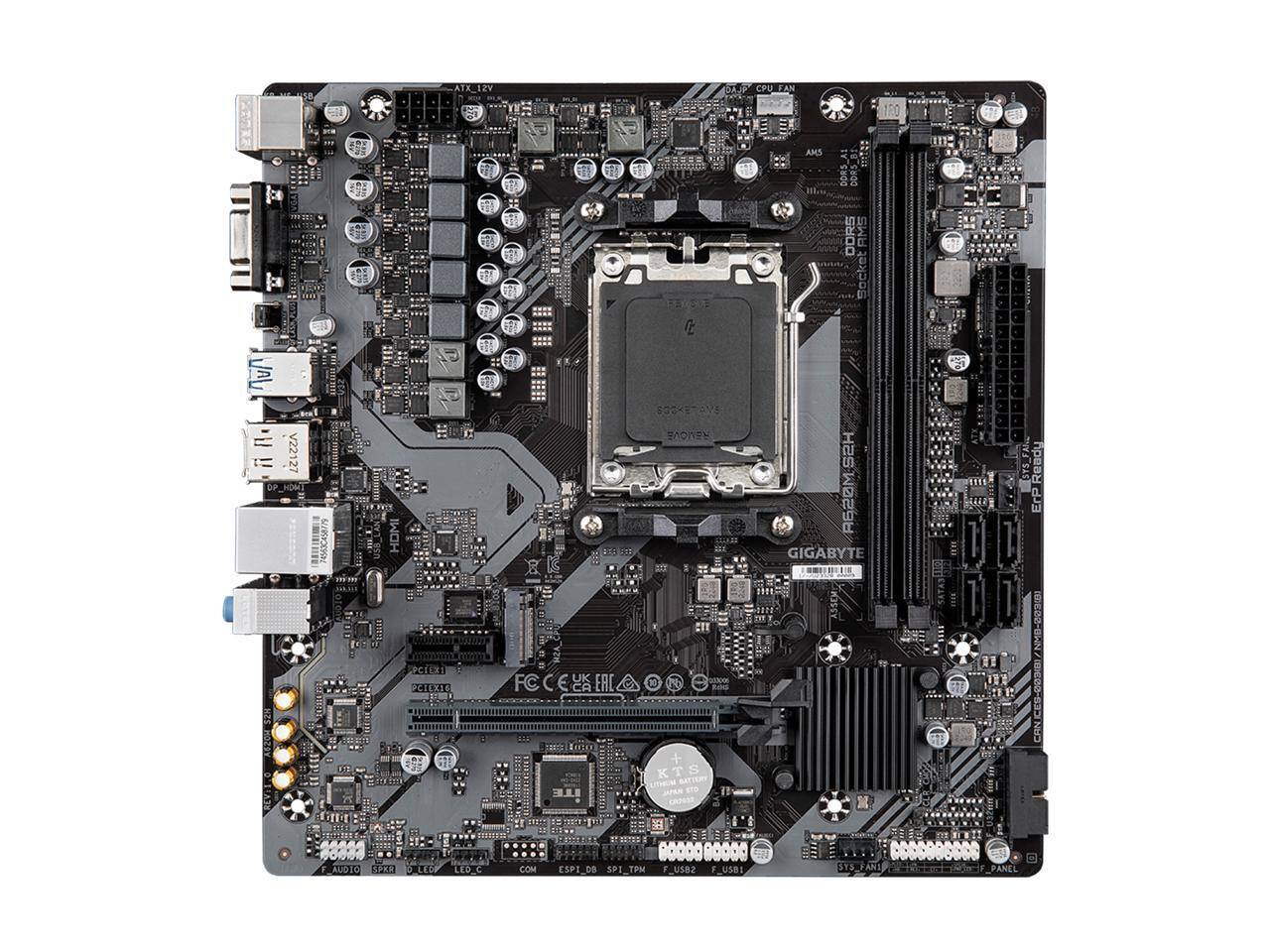

GIGABYTE - A620M S2H AM5 DDR5 M-ATX Motherboard, PCIe 4.0, 3-Year Warranty
$114.02
$119.15
Reviews coming soon
$98.07
Save $21.00
Comp. Value: $119.15
or
Finance OptionsView your offers
Availability
FREE shipping to
Sold & shipped by
(90)
- Intel - Core Ultra 7 265K 20-Cores 20-Threads - 4.6GHz (5.5 GHz Turbo) Socket LGA 1851 Unlocked Desktop Processor - Multi$299.99$429.99
More Buying Options
Related Item
SponsoredCPU MotherBoard Memory Combo - AMD 100-100001973WOF + ASUS TUF X870E-PLUS WIFI7 + V-color 16GB Memory
$1,005.99
$1,385.98
Specifications
- ChipsetIntel H610Form FactormicroATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardNo Wi-Fi standardNumber Of Memory Slots4Maximum Memory Supported96 gigabytes
- Key Specs
- Chipset: Intel H610
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 96 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Product Name: GIGABYTE A620M S2H AM5 DDR5 M-ATX Motherboard, PCIe 4.0, 3-Year Warranty
- Compatibility
- Chipset: Intel H610
- Chipset Compatibility: AMD
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 5 7000 Series
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

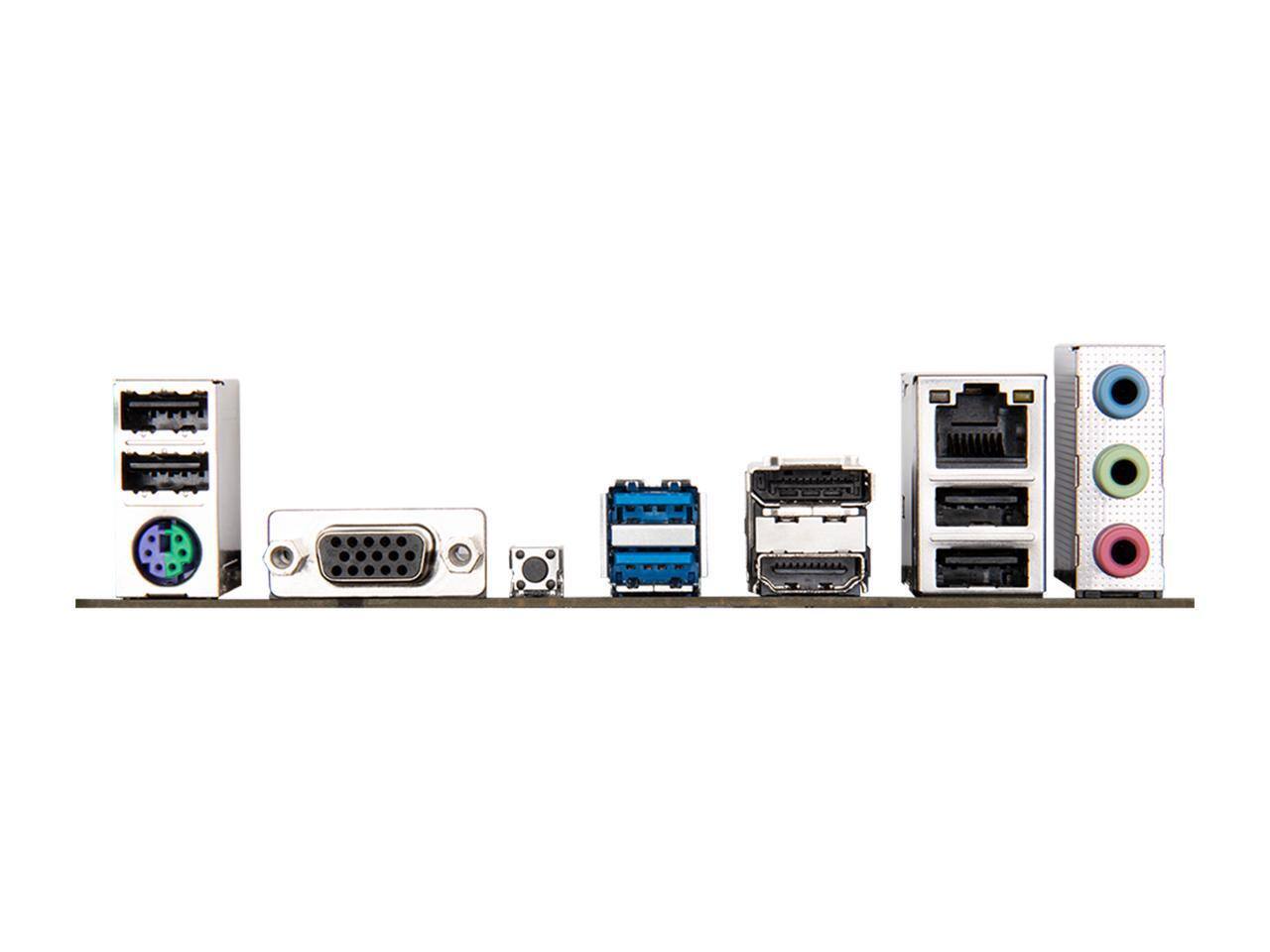

- USB Ports: 4 x USB-A 2.0, 7 x USB-A 3.1 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 264.92 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 264.92 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 32.0 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 96 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR5 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Limited Warranty period (parts): 1095 days
- Warranty - Labor: Limited Warranty period (labor): 1095 days
- Other
- UPC: 889523038031

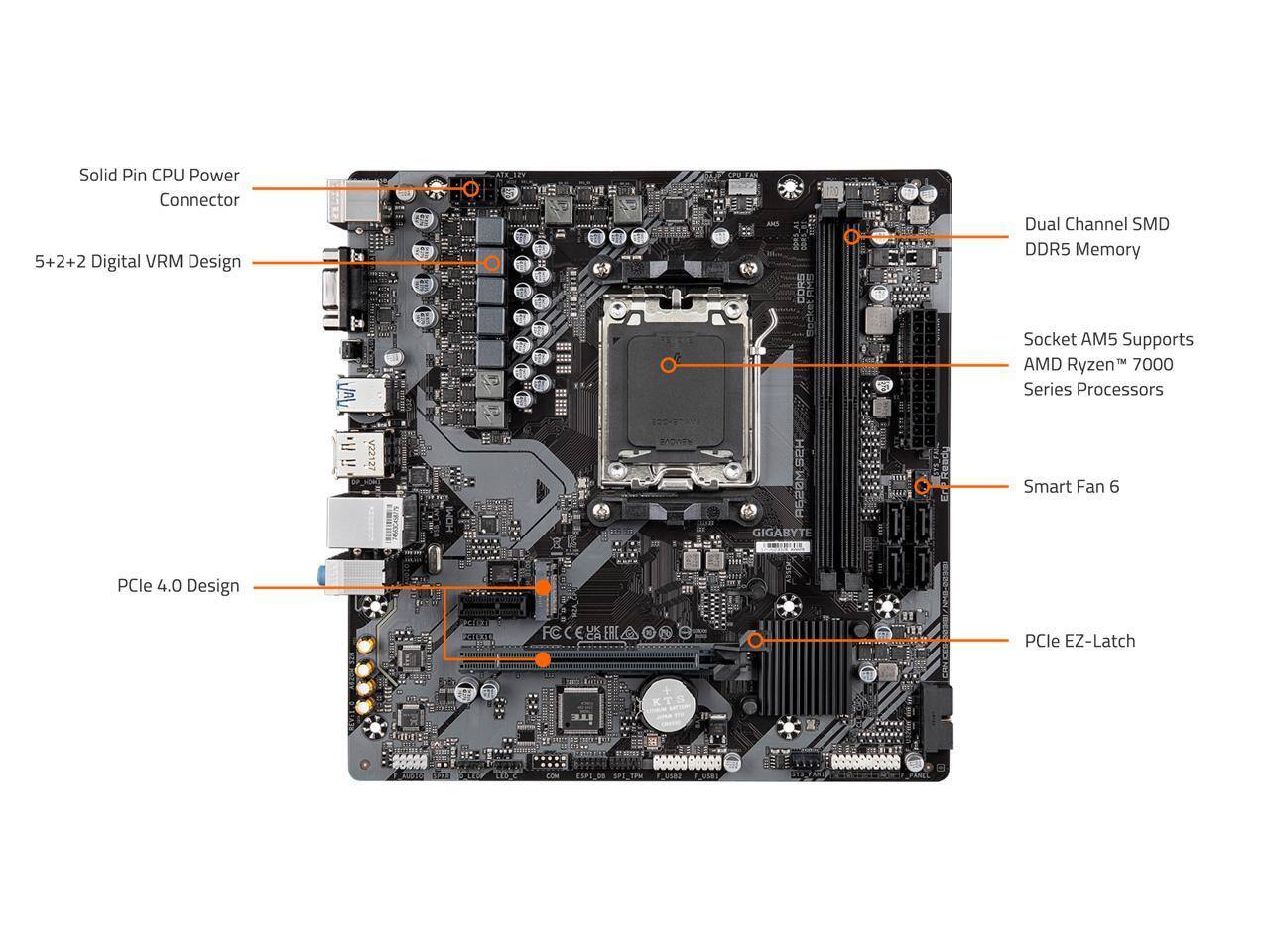

GIGABYTE A620M S2H AM5 LGA 1718 AMD A620 M-ATX Motherboard with 3-Year Warranty, DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Realtek 1GbE LAN, Q-Flash Plus, PCIe EZ-Latch
- AMD AM5 Socket Compatibility: "AMD Socket AM5:Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Dual Channel DDR5 with AMD EXPO & Intel XMP: Dual Channel DDR5:2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- 5+2+2 Phases VRM for Enhanced Performance: Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
- EZ-Latch Plus PCIe & M.2 Connectors: EZ-Latch Plus: PCIe x16 & M.2 Connectors with a Quick Release & Screwless Design
- Realtek 1GbE LAN for Stable Networking: Stable Networking: Realtek 1GbE LAN
