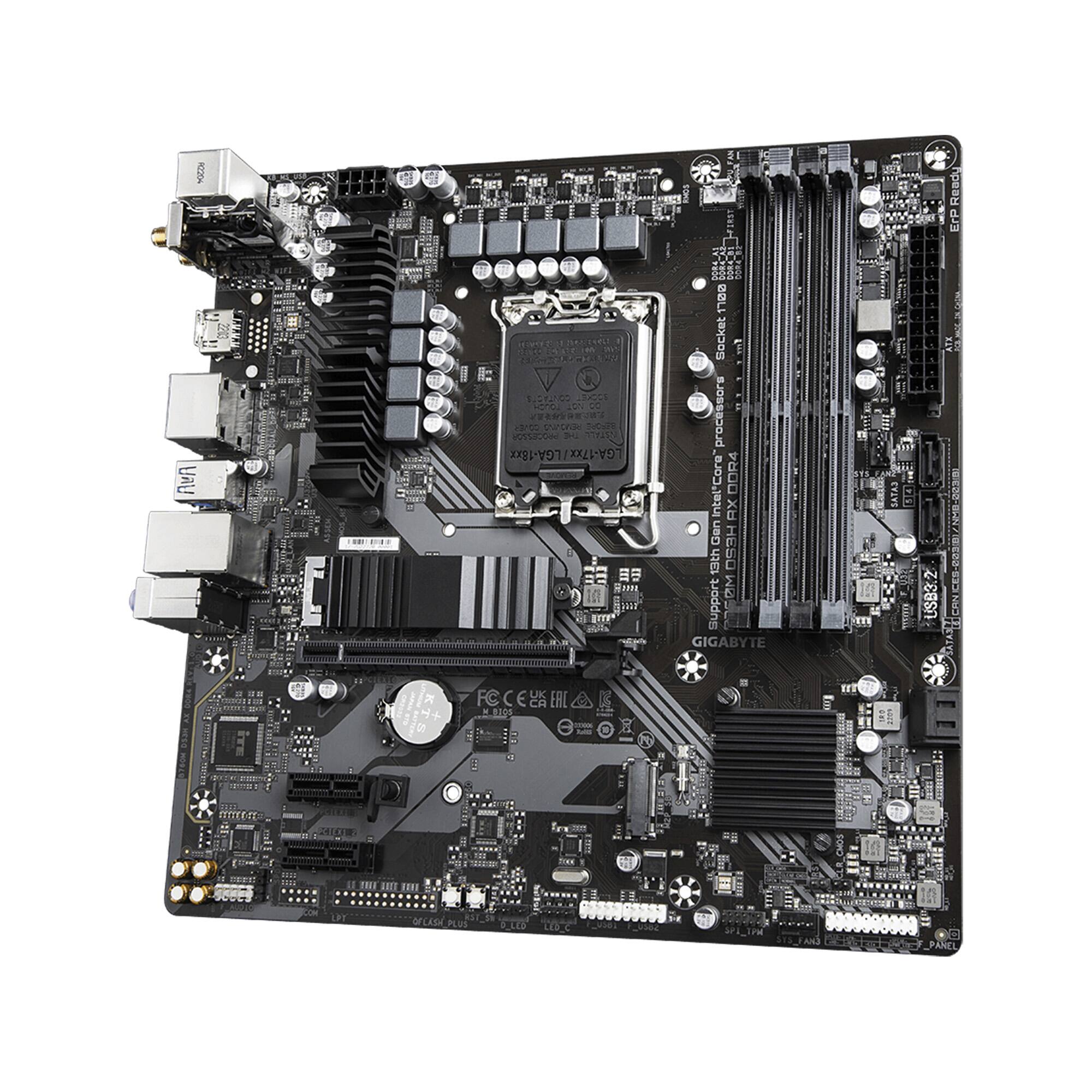

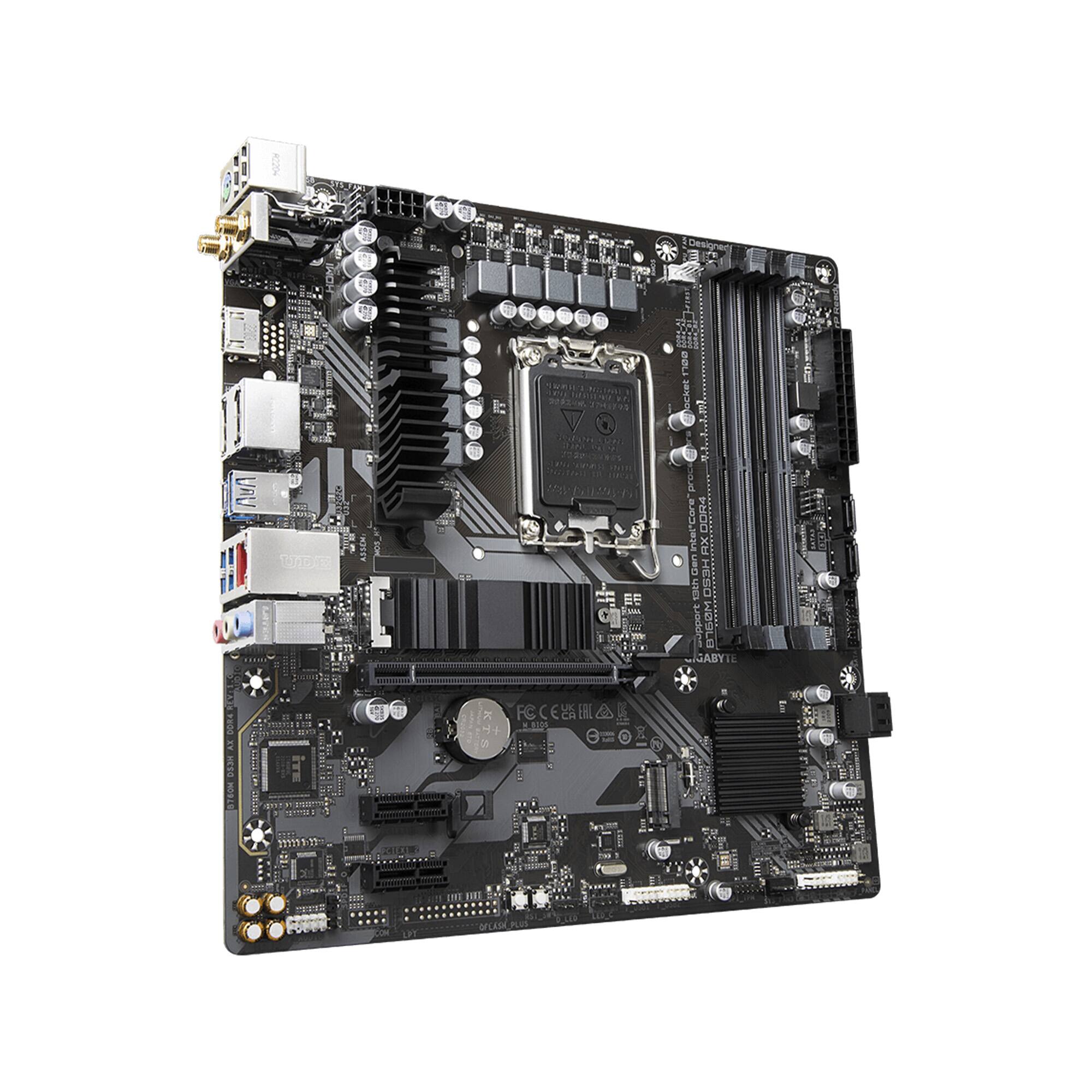

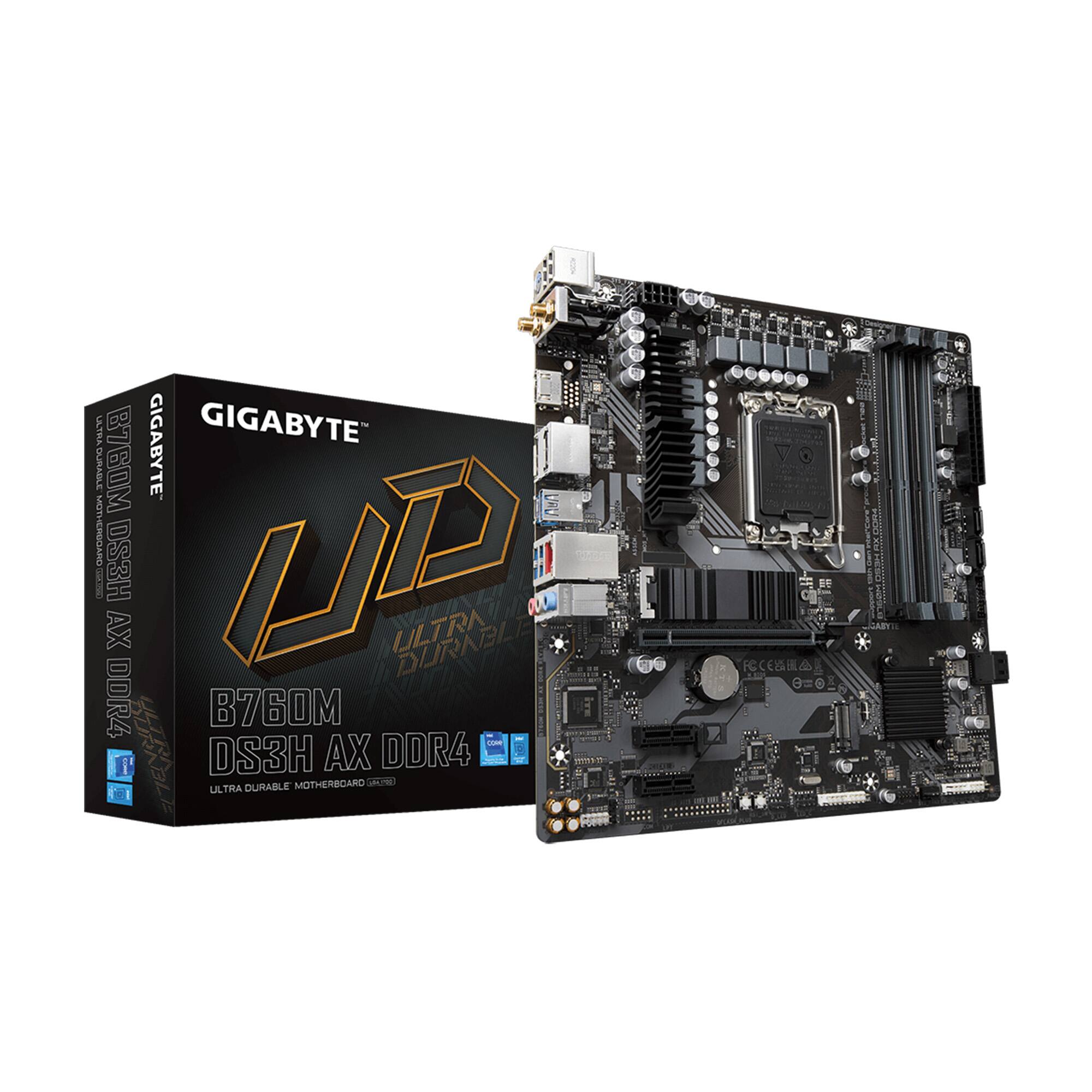

GIGABYTE - B760M DS3H AX (Socket LGA 1700) Intel B760 mATX DDR4 Motherboard - Black
FREE shipping to
More Buying Options
Related Item
Specifications
- ChipsetIntel B760Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: Intel B760
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: GIGABYTE
- Model Number: B760M DS3H AX DDR4
- Product Name: B760M DS3H AX (Socket LGA 1700) Intel B760 mATX DDR4 Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 13th Generation Core i9, Intel 13th Generation Core i9, Intel 12th Generation Core i9
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

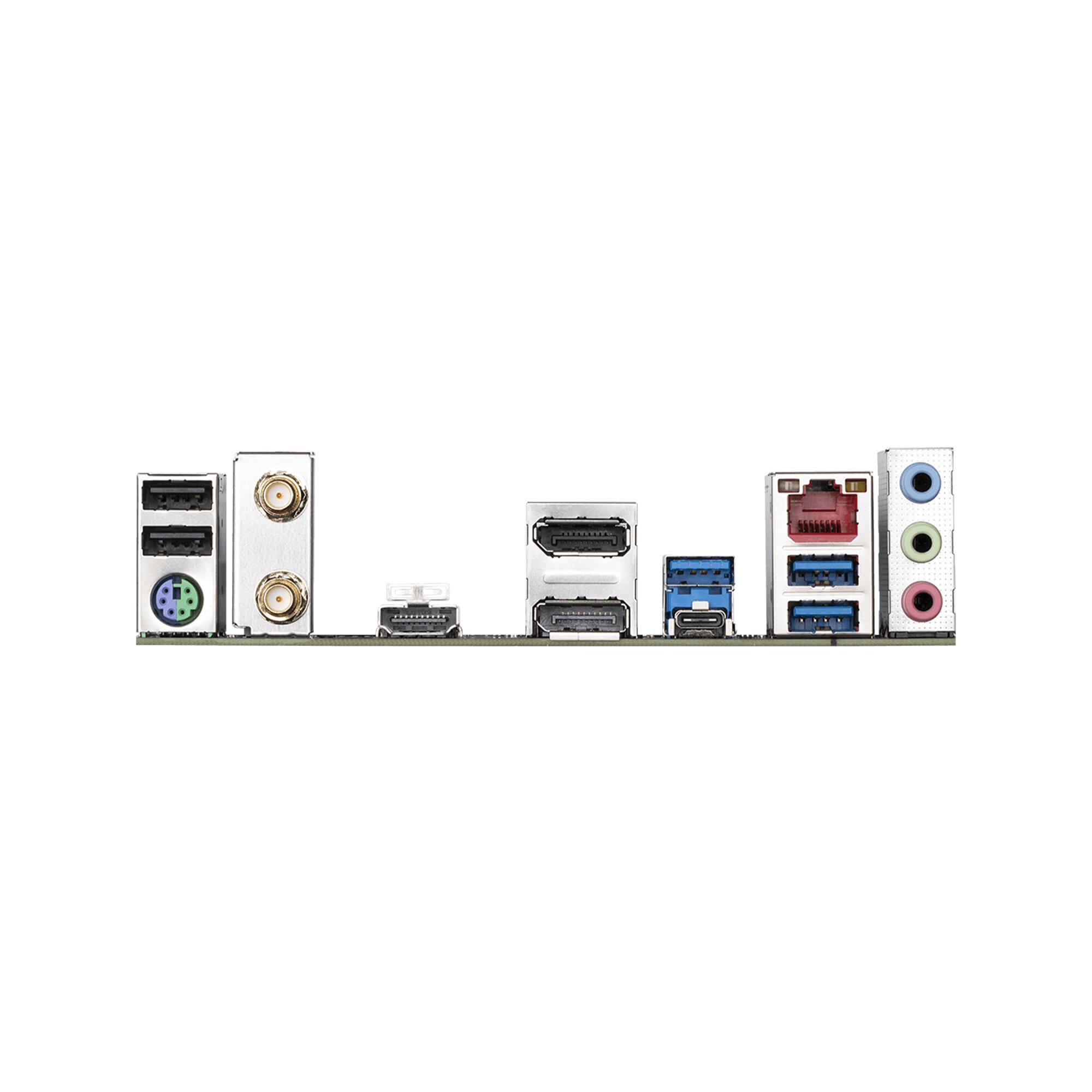

- USB Ports: 2 x USB-A 2.0, 1 x USB-C 3.2, 3 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 2, 4, 5.1, 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 24.4 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 24.4 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.49 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)3200/3000/2933/2666/2400/2133 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 10 (RAID 1+0), RAID 5, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 889523034620
Enjoy unparalleled performance with the GIGABYTE B760M DS3H AX DDR4. The GIGABYTE B760M DS3H AX DDR4 supports 13th and 12th Gen Intel Core Processors. Unlock your gaming potential with GIGABYTE B760 Motherboards. GIGABYTE B760 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
- Processor Compatibility: Supports 13th and 12th Gen Intel Core Series Processors
- DDR4 Compatible: Dual Channel DDR4, 4 DIMMs

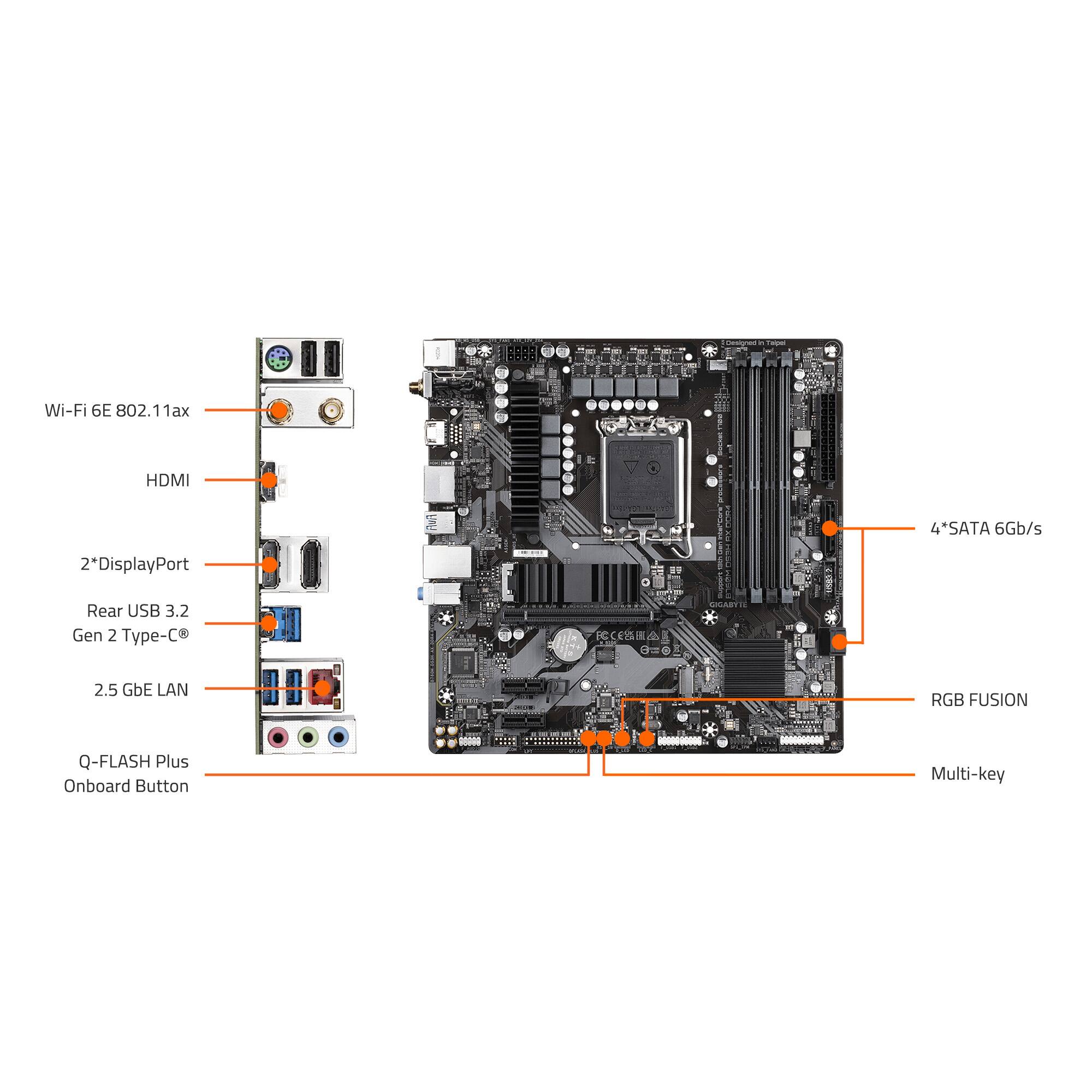

- Next Gen Connectivity: PCIe 4.0, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
- Comprehensive Thermal Design: M.2 Thermal Guard
- Sturdy Power Design: 6+2+1 Hybrid Digital VRM Design
- Fast Networking: 2.5GbE LAN, WiFi 6E
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
- Processor Compatibility: Supports 13th and 12th Gen Intel Core Series Processors
- DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
- Next Gen Connectivity: PCIe 4.0, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
- Comprehensive Thermal Design: M.2 Thermal Guard
- Sturdy Power Design: 6+2+1 Hybrid Digital VRM Design
- Fast Networking: 2.5GbE LAN, WiFi 6E
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Whats Included
- B760M DS3H AX (Socket LGA 1700) Intel B760 mATX DDR4 Motherboard
- B760M DS3H AX (Socket LGA 1700) Intel B760 mATX DDR4 Motherboard
