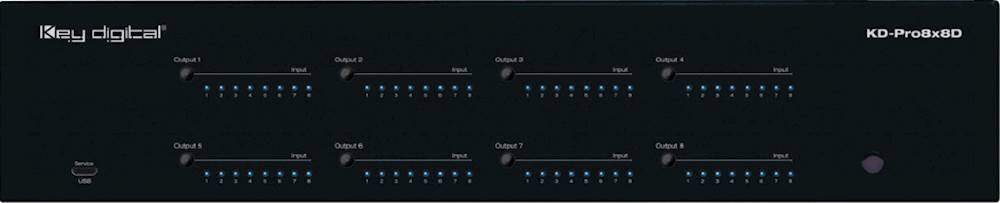

Name: Key Digital - 8x8 HDBaseT/HDMI Matrix Switcher - Black
Brand: Key Digital
SKU: 6412880
Rating: 0 (0 reviews)

General
- Brand: Key Digital
- Model Number: KD-PRO8X8D
- Product Name: 8x8 HDBaseT/HDMI Matrix Switcher
- Color: Black
Features
- Selector Switch Box Type: Rack
- Indicator Lights: true
- Surround Sound Supported: DTS-HD Master Audio, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
Connectivity
- Input(s): Ethernet, HDMI, IR, RS 232, USB
- Number of Inputs: 8
- Output(s): HDBaseT, HDMI
- Number of Outputs: 8
Dimensions
- Product Height: 3.46 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
Other
- UPC: 819505002934

Navigate through presentation slides effortlessly with this Key Digital 8x8 HDBaseT/HDMI matrix switcher. The 4K resolution of up to 4096x2160 delivers bold colors at up to 60Hz, while the 10.2 Gbps bandwidth speeds ensure steady and fluid signal transmissions. This Key Digital 8x8 HDBaseT/HDMI matrix switcher features eight Rx extenders for various connection options, and the audio DSP offers simple tuning and volume control.

4K/UHD resolution: Supports signals up to 4096 x 2160 60Hz [4:2:0] 8 bits, 4096 x 2160 30Hz [4:2:2] 12 bits, and 4096 x 2160 30Hz [4:4:4] 8 bits.
10.2 Gbps bandwidth: Supports UHD/4K resolution with HDR via EDID handshaking.
HDBaseT and HDMI simultaneously active outputs: Eight HDBaseT (Cat-5e/6 RJ45) and eight HDMI outputs with fully automatic Cat-5e/6 cable equalization can work simultaneously. Supports up to 16 displays (8 mirrored).
HDBaseT Rx included: Eight total Rx extenders integrate with built-in HDBaseT Tx output ports: six standard-range KD-X88SHRx, two long-range KD-X88LGRx.
HDR support: Offers more lifelike images through a greater range of luminance levels.
Deep color: Supports up to 12 bits/color.
Audio Return Channel (ARC): Audio may be returned from display to respective audio output.
Audio de-embedding: Audio from the selected HDMI input may be de-embedded through the coax digital (PCM) and analog L/R balanced/unbalanced output.
Audio DSP: Offers variable level settings for volume, muting, three-band EQ, balance, and lip-sync delay per output.
Full Buffer Technology: Provides full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation.
Surround sound support: Works with Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos, and DTS-HD Master Audio™.
Control integration: Can be controlled via TCP/IP, RS-232, and USB with full bidirectional operation, front-panel push buttons and LEDs, front/rear optical IR, serial IR.
Key Digital app-ready: Scan and detect population for pre-built GUI and TCP/IP control via the Key Digital® app.
4K/UHD resolution: Supports signals up to 4096 x 2160 60Hz [4:2:0] 8 bits, 4096 x 2160 30Hz [4:2:2] 12 bits, and 4096 x 2160 30Hz [4:4:4] 8 bits.
10.2 Gbps bandwidth: Supports UHD/4K resolution with HDR via EDID handshaking.
HDBaseT and HDMI simultaneously active outputs: Eight HDBaseT (Cat-5e/6 RJ45) and eight HDMI outputs with fully automatic Cat-5e/6 cable equalization can work simultaneously. Supports up to 16 displays (8 mirrored).
HDBaseT Rx included: Eight total Rx extenders integrate with built-in HDBaseT Tx output ports: six standard-range KD-X88SHRx, two long-range KD-X88LGRx.
HDR support: Offers more lifelike images through a greater range of luminance levels.
Deep color: Supports up to 12 bits/color.
Audio Return Channel (ARC): Audio may be returned from display to respective audio output.
Audio de-embedding: Audio from the selected HDMI input may be de-embedded through the coax digital (PCM) and analog L/R balanced/unbalanced output.
Audio DSP: Offers variable level settings for volume, muting, three-band EQ, balance, and lip-sync delay per output.
Full Buffer Technology: Provides full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation.
Surround sound support: Works with Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos, and DTS-HD Master Audio™.
Control integration: Can be controlled via TCP/IP, RS-232, and USB with full bidirectional operation, front-panel push buttons and LEDs, front/rear optical IR, serial IR.
Key Digital app-ready: Scan and detect population for pre-built GUI and TCP/IP control via the Key Digital® app.
