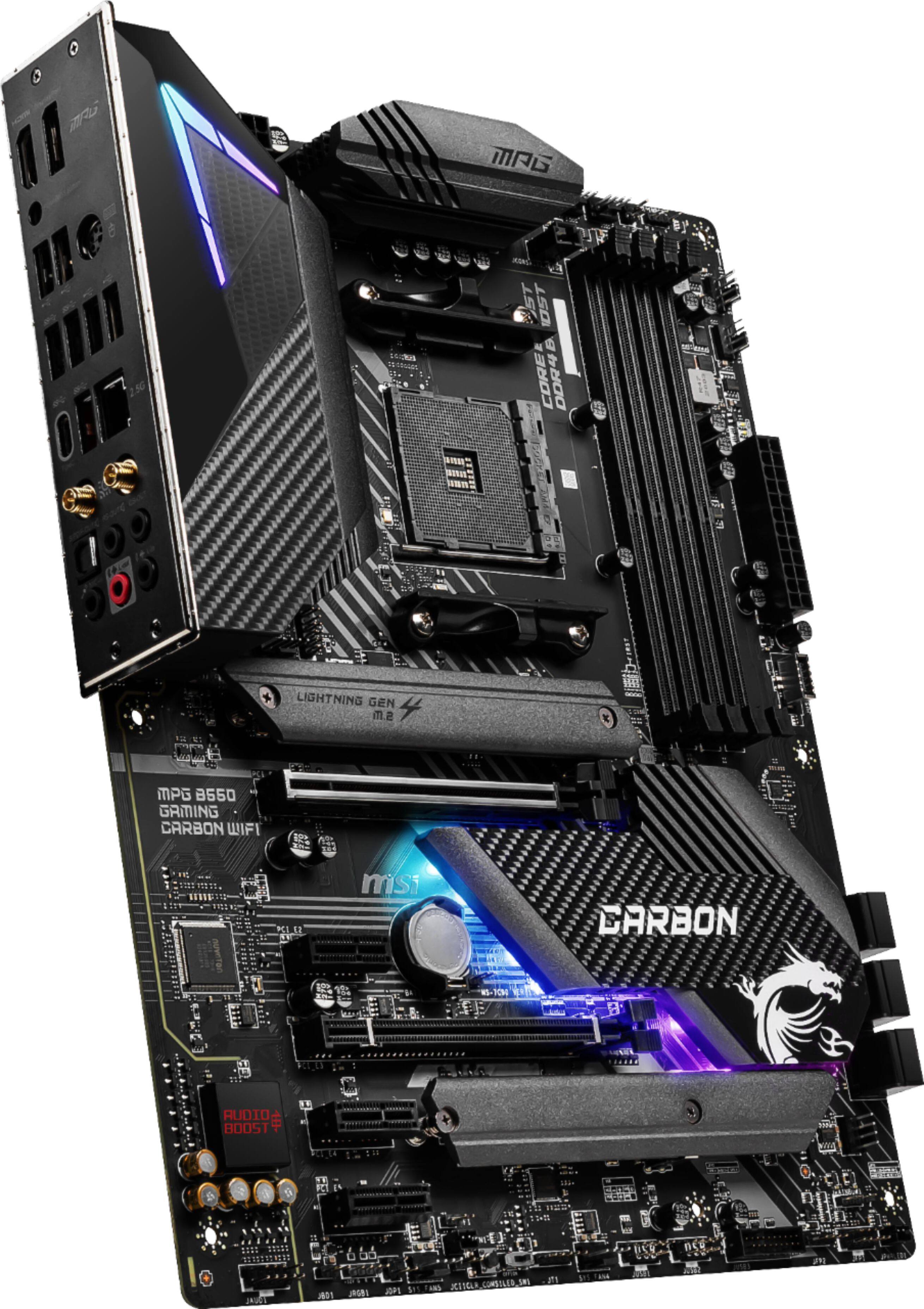

MSI - B550 GAMING CARBON WIFI (Socket AM4) USB-C Gen3 AMD Motherboard PCIe Gen4
- Key Specs
- Chipset: B550
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- General
- Brand: MSI
- Model Number: B550GCARBWIFI
- Product Name: B550 GAMING CARBON WIFI (Socket AM4) USB-C Gen3 AMD Motherboard PCIe Gen4
- Compatibility
- Chipset: B550
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 7 3000 Series
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Width: 2 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Other
- UPC: 824142221372
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style. MPG B550 GAMING CARBON WIFI; Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update; Supports; DDR4 Memory, up to 4866(OC) MHz; Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2; Enhanced Power Design: 12+2+1 Digital Power with Doubler Design, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost; MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.; Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience; 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection; Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.; Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Supports AMD Ryzen 9 and Ryzen processors: In an AM4 socket.
- DDR4 MEMORY: 4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
- AMD CrossFireX graphics support: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 16GB
- Four 288-pin DDR4 RAM DIMM sockets: Support up to 128GB of system memory.
- AUDIO: Realtek® ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- STORAGE: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices
- RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller
- INTERNAL CONNECTORS: 1x 24-pin ATX main ; 1x 8-pin ATX 12V ; 1x 4-pin ATX 12V ; 6x SATA 6Gb/s ; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors; 1x 4-pin CPU
- INTERNAL CONNECTORS: 1x 4-pin water-pump fan ; 6x 4-pin system fan ; 1x Front panel audio; 2x System panel; 1x Chassis Intrusion; 1x 4-pin RGB LED; 2x 3-pin RAINBOW LED; 1x RGB CORSAIR; 1x TPM module; 1x Clear CMOS jumper
Product Manuals
Q: does this support wireless wifi and what antenna would you need for this motherboard.
A: Yes, it supports WIFI 6. WIFI antenna is included.
Q: Is this motherboard compatible with AMD Ryzen™ 7 5700G?
A: Yes, the B550 Gaming Carbon WiFi is compatible with AMD Ryzen 7 5700G after a bios update.
Q: Does this motherboard also come with bluetooth. Sorry I'm kind of a beginner at this.
A: Yes, it does have Bluetooth functionality. I have Bluetooth speakers connected to mine and it also works for controllers and many other devices.
Q: Will this work with a Ryzen 7 3800X?
A: The B550 Gaming Carbon Wifi will be compatible with the Ryzen 7 3800X.
Q: Is the additional 4-pin ATX power connector required for standard usage?
A: Depends on what cpu, gpu, and cooling system you plan on using. It works great with Radeon 5700XT, R7 3700x and the standard wraith air cooler
Q: Will this work with a Ryzen 5 5600x out of the box?
A: No. To recognize a 5000 series Ryzen GPU (for now), you have to update the BIOS first. Seems to be the case for ALL Ryzen 5k compatible MoBos though. This CAN be done on this model without the CPU, RAM or any drives hooked up. Do a search on this board + FlashBackButton for some good tutorials. I did this before installing the CPU and it worked just great. MSI website also has tutorials - in box docs also cover but less completely . I love this MoBo btw. - very happy.
Q: Will this work with ryzen 3 5800x out of the box? I do not have cpu kit to flash.
A: Yes it will. But only a USB is required to upgrade.
Q: Dosnt say what form factor is this ATX?
A: Correct. It is ATX. Mine just came in last week!
