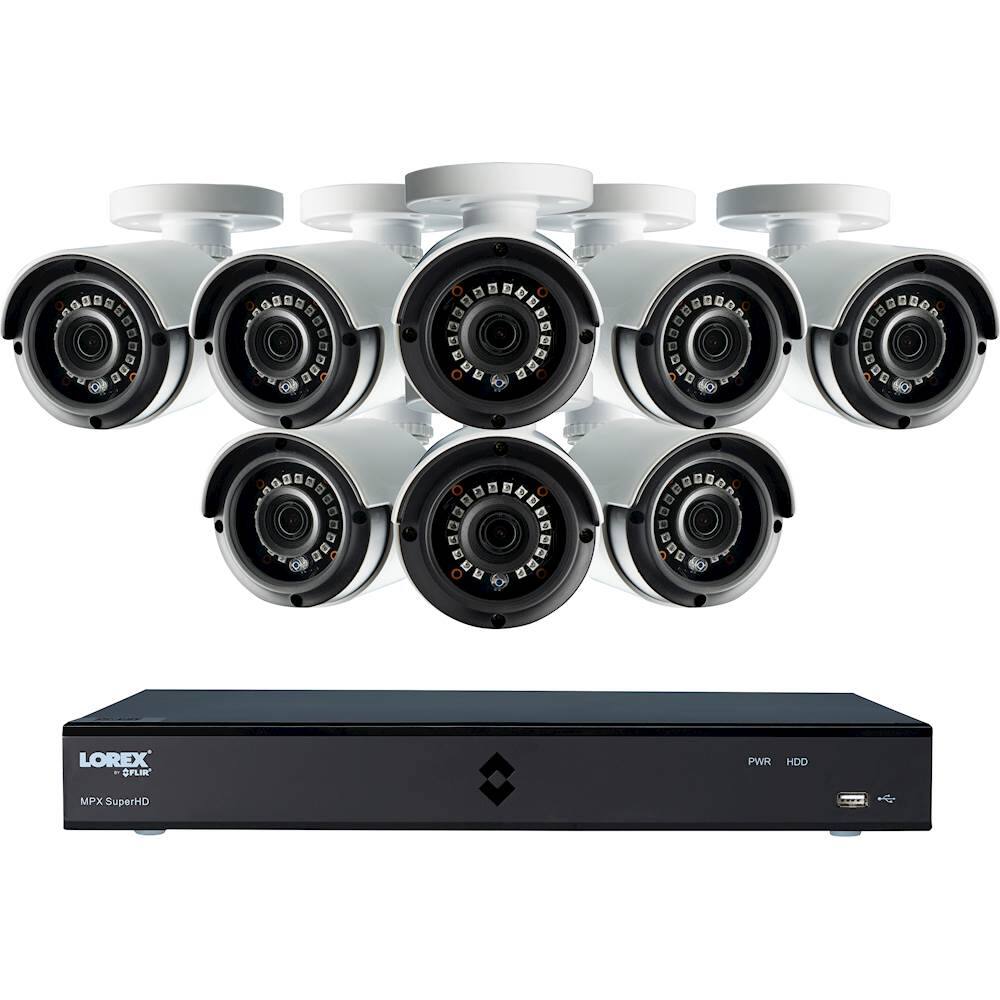

Lorex - 16-Channel, 8-Camera Indoor/Outdoor Wired 4MP 2TB DVR Surveillance System - Black/white
- Key Specs
- Camera Resolution: 2688 x 1520 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 89 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 8
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Number Of Channels: 16
- Recording Resolution: 1280 x 720, 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Minimum Operating Temperature: -22 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 16-Channel, 8-Camera Indoor/Outdoor Wired 4MP 2TB DVR Surveillance System
- Brand: Lorex
- Model Number: LHA42162TC8B
- Camera
- Camera Resolution: 2688 x 1520 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 89 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 131 feet
- Number Of Cameras Included: 8
- Number Of Cameras Supported: 16
- Frame Rate: 7.5 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
- Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 18 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Infrared Distance: 131 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Not Available
- Operating System Compatibility: Android, Apple iOS, Mac, Windows, Windows Mobile
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Records Audio: true
- Number Of Channels: 16
- Video Compression Type: H.264
- Simultaneous Operation: Pentaplex (Refers to the number of operations (live view, record, playback, back up, remote control, etc.) the DVR can perform simultaneously. For example, a simplex DVR can perform only one task at a time, such as recording or playback of footage, while a pentaplex DVR can multitask up to 5 functions.)
- Recording Resolution: 1280 x 720, 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- DVR Operation Mode: Pentaplex
- Storage
- DVR Storage Capacity: 2000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 12000 gigabytes
- Performance
- Minimum Operating Temperature: -22 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Mobile Notifications: true
- Auto-On Detection: Motion
- Dimensions
- Camera Height: 2.8 inches
- Camera Width: 2.8 inches
- Camera Depth: 6.2 inches
- DVR Height: 2 inches
- DVR Width: 14.8 inches
- DVR Depth: 12.4 inches
- DVR Weight: 4.4 pounds
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): HDMI, VGA, RCA audio, USB, USB 3.0
- Included
- Camera(s) Included: true
- DVR Included: true
- Remote Control Included: true
- Cable(s) Included: true
- Other
- UPC: 695529012056
Record surveillance footage with this Lorex DVR camera system. It has H.264 video compression to reduce file size for easy data storage and faster transferring to your network, and its 4-megapixel cameras capture minute details like faces and license plates. Automatic firmware updates ensure this Lorex DVR camera system stays up to date.
- Motion-activated design: Automatically records once motion is detected, then sends you e-mail alarm notifications.
- Monitor your property with 8 cameras: Also includes DVR, remote control, mouse, power adapter and 8 mounting brackets.
- Set and forget with hard drive storage: Record continuously from 16 channels with a 2TB hard drive.
- High-resolution technology captures superior footage: Eight 2688 x 1520 resolution cameras use advanced image sensors to record clear full-screen video.
- Infrared night vision lets you see in the dark: Keep an eye on things up to 131' away when there's little to no light.
- Viewing angle up to 89°: Expertly captures a wide angle of your property for exceptional security at all times.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
Whats Included
- Lorex 16-Channel, 8-Camera Indoor/Outdoor Wired 4MP 2TB DVR Surveillance System
Product Manuals
A: Thank you for your feedback about this product. This security camera system connects with an Ethernet cable for viewing over the network and remote viewing on a smartphone, computer etc. The BNC cable is used as the video input for the cameras. The Lorex Customer Service Team
Q: If a motion sensor triggers a camera to start recording can it also trigger a light to come on?
A: This unit dies not have that feature built into it. A separate motion light would be an easier solution.
Q: Does the 3 year warranty cover the cameras and the DVR?
A: undefined
A: Yes, it has audio ports. Microphone and cable sold separately.
A: Yes, included.are 60 foot camera/power cables for each camera. Two power adapter have four connections each, Additional cameras can be purchased through Best Buy. Depending on store stock they may have to be ordered. The recorder records continuously to end of recording space on hard drive then starts recording over from beginning or can be configured in settings.
Q: Can you view the footage on a Windows PC without having to copy to USB. i.e. through the network?
A: Yes video can be viewed through windows by connecting recorder and computer to same network. Live video can also be viewed from any internet connected computer or smart phone by using downloadable app.
Q: how reliable is the system is South Florida raining weather
A: Not sure about the long haul but mine were in a hard blowing rain a few says after installation. Although they are mounted under the eave of house they got wet during that storm wilthout any ill effect. I was familiar with Lorex before making my purchase and believe they are very reliable Hope you enjoy them as much as I have.
